System Specifications

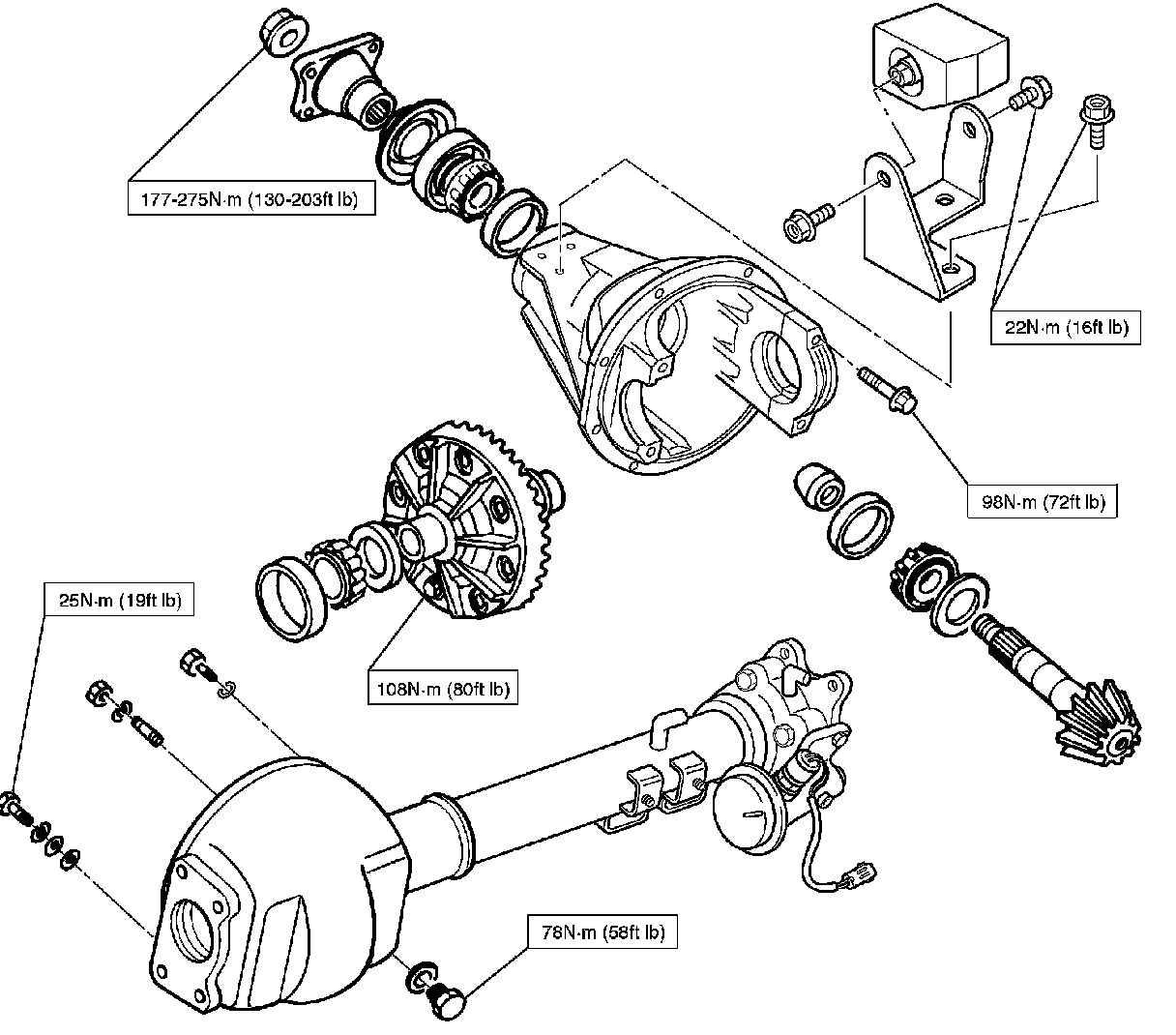

FRONT DIFFERENTIAL
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS
Differential Cage Assembly Sequence

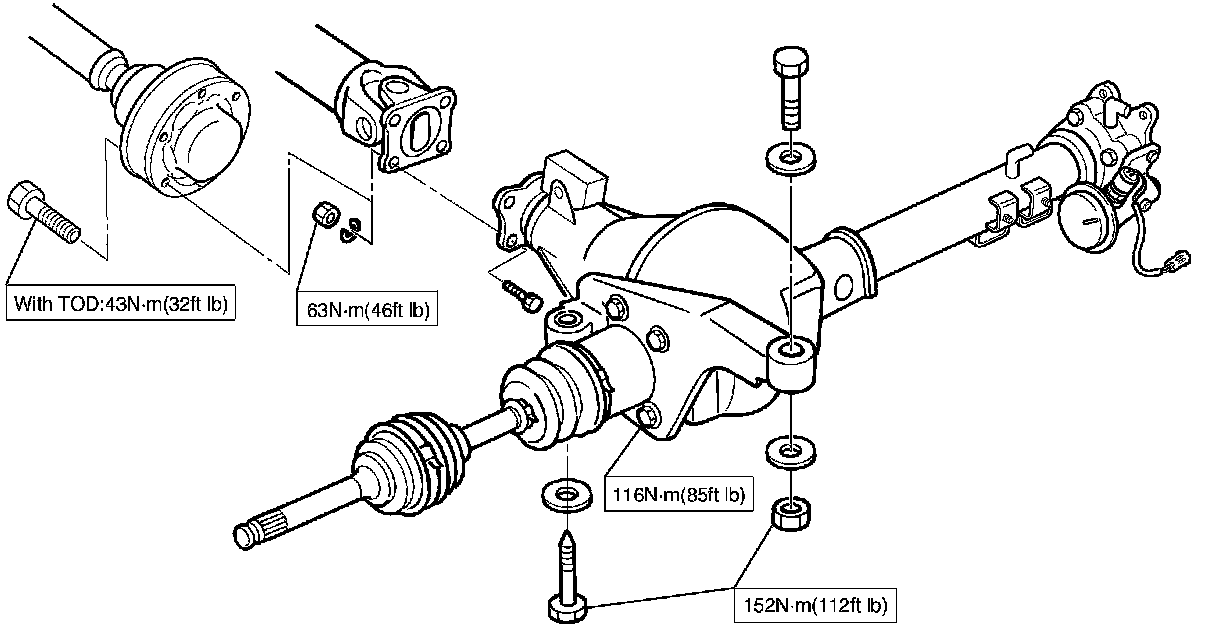

REAR DIFFERENTIAL
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS

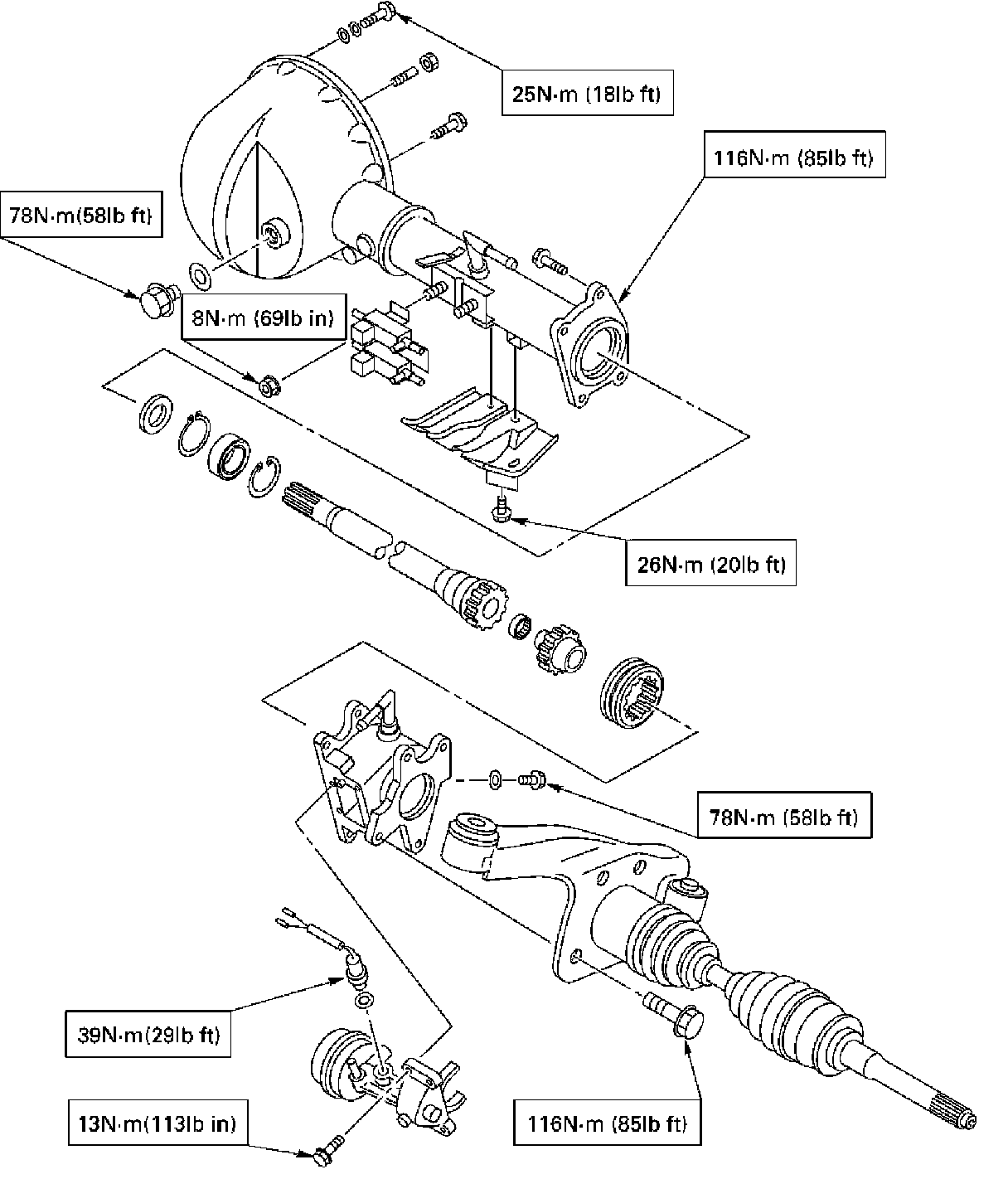

DRIVE SHAFT SYSTEM
SHIFT ON THE FLY
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS
FRONT PROPELLER SHAFT
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS
REAR PROPELLER SHAFT
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS

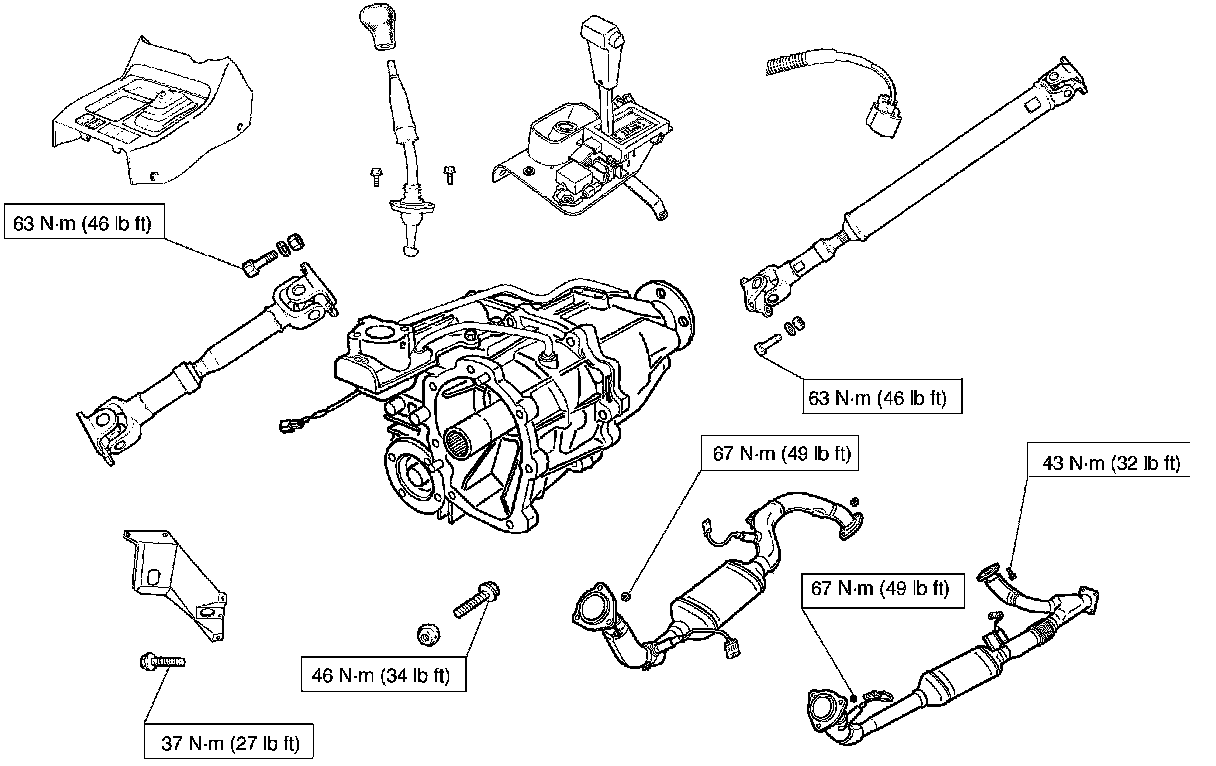

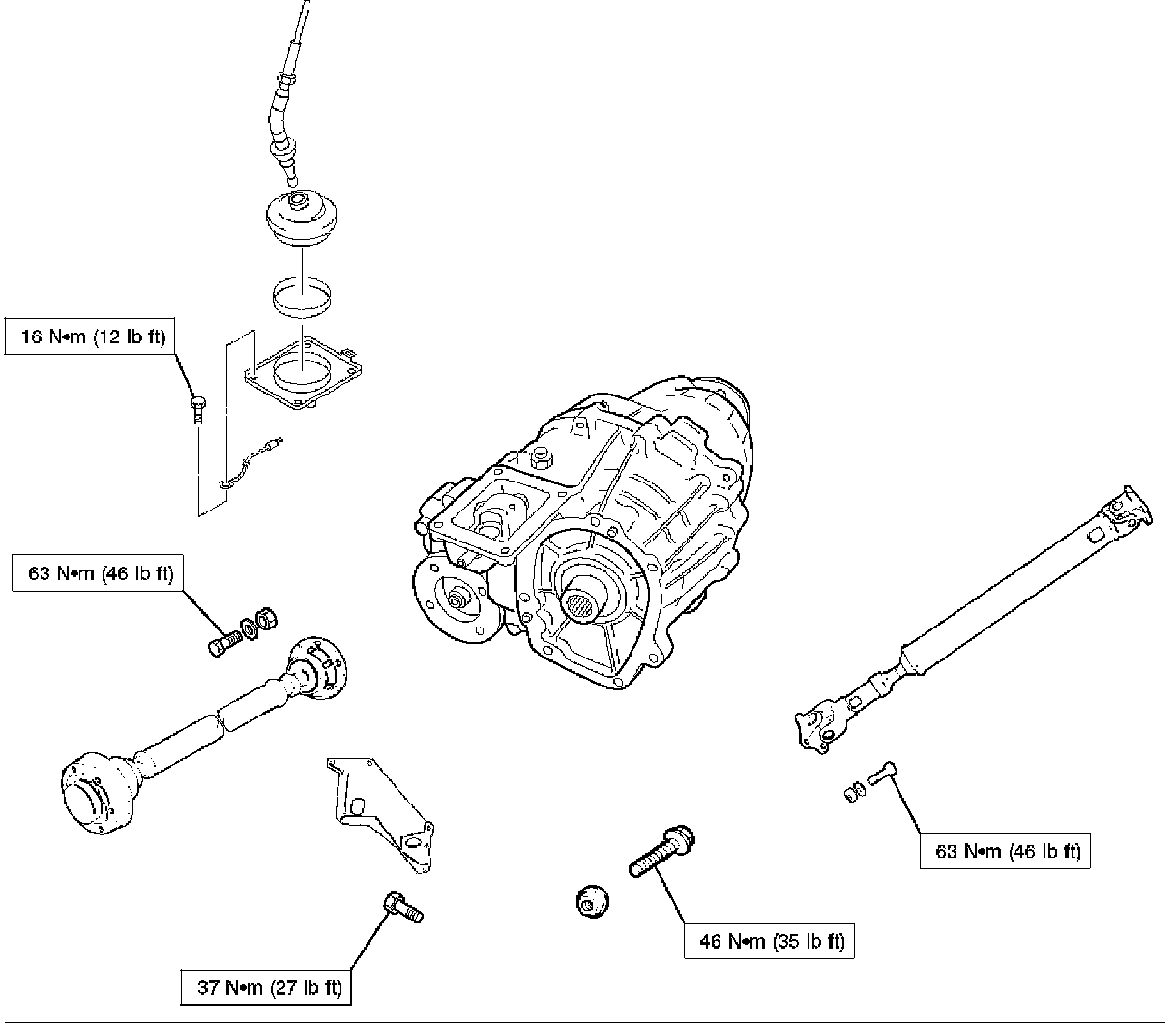

TRANSFER CASE (STANDARD TYPE)
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS

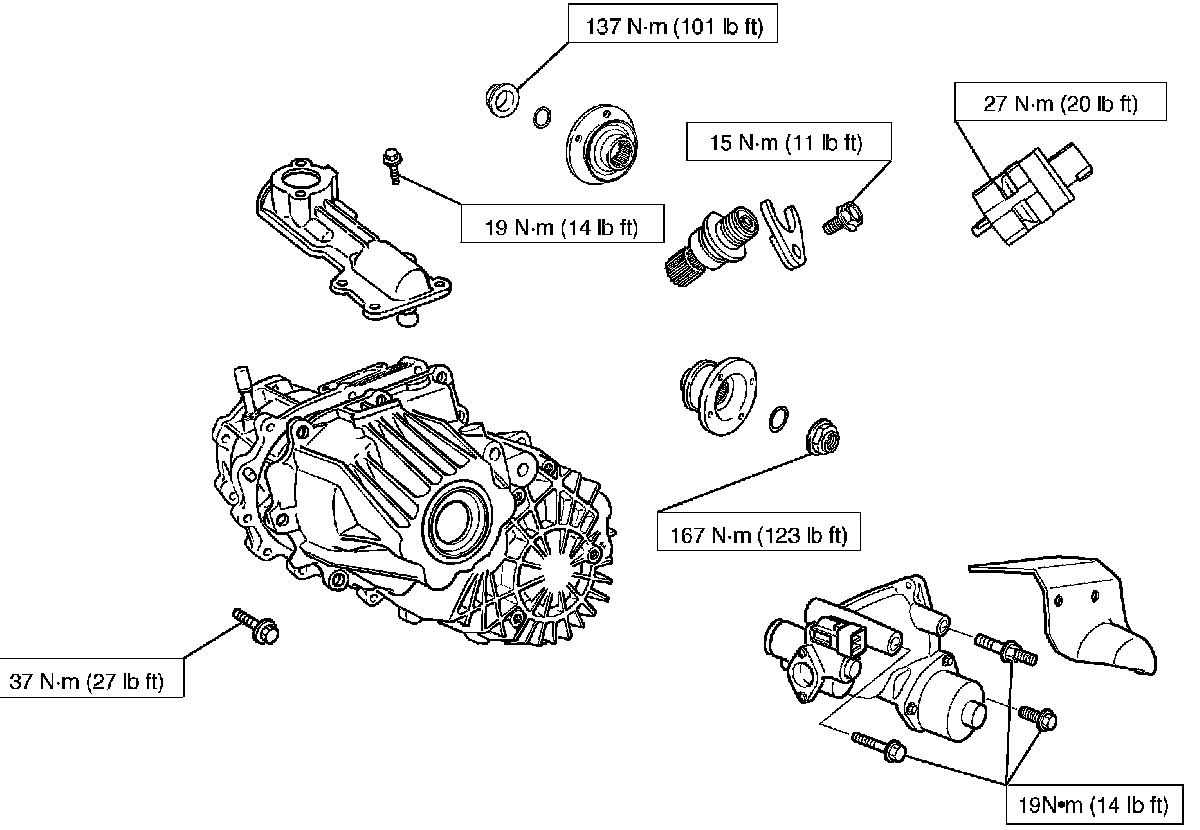

TRANSFER CASE (TOD)
LEADING PARTICULARS
TORQUE SPECIFICATIONS

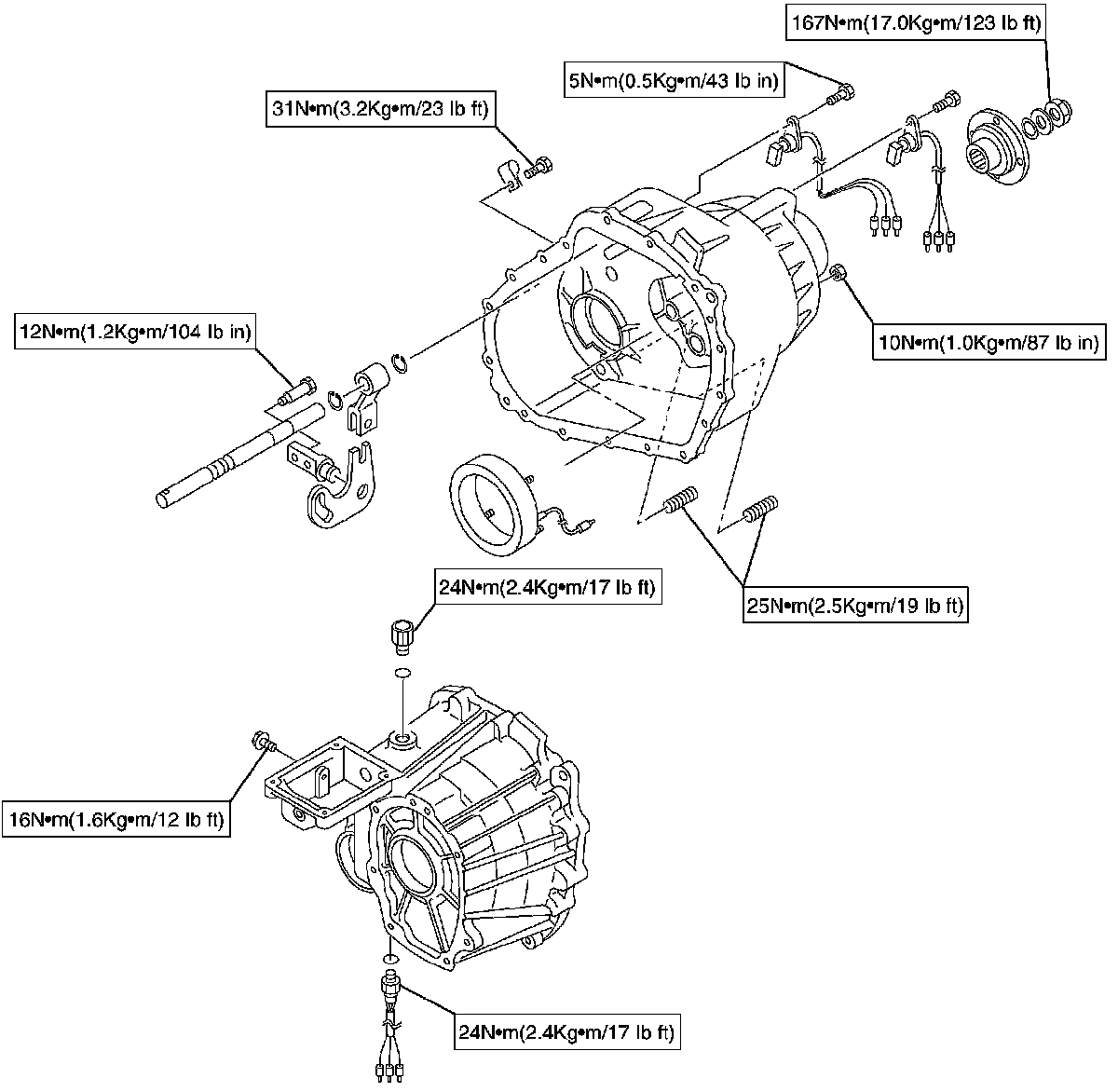

AUTOMATIC TRANSMISSION (4L30-E)
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS

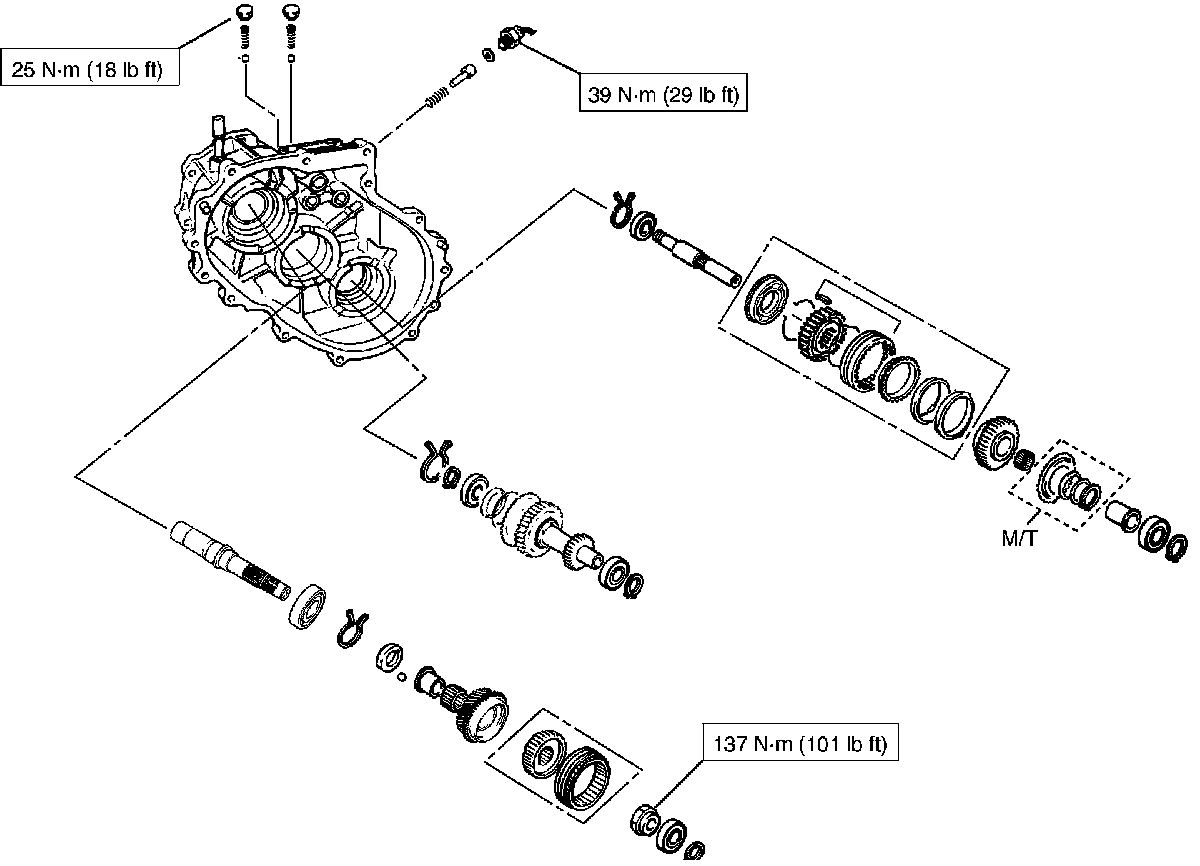

MANUAL TRANSMISSION
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS
CLUTCH
GENERAL SPECIFICATIONS
TORQUE SPECIFICATIONS
