Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.

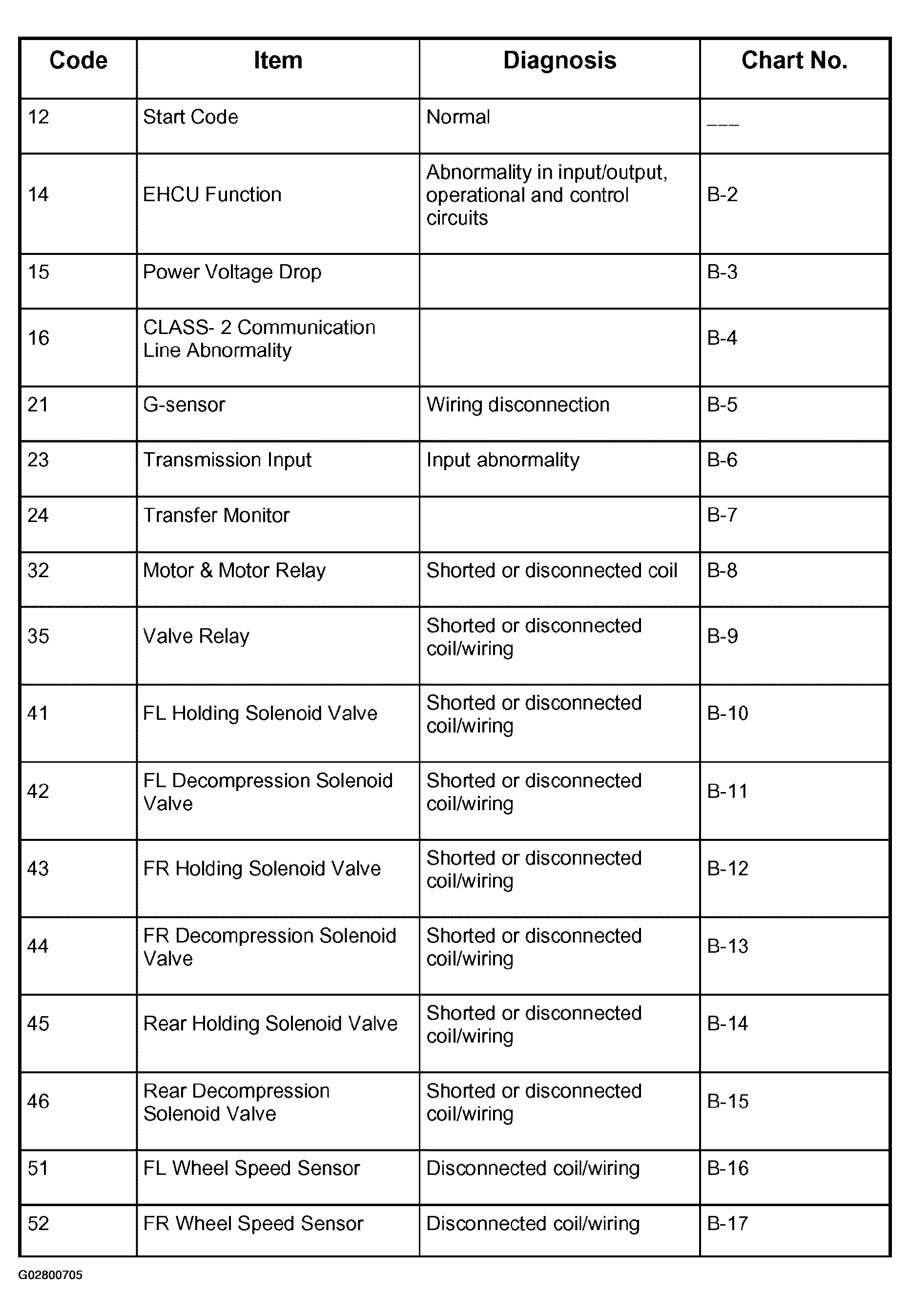

Fig 1: Diagnostic Trouble Codes List (1 Of 2)
G02800705Courtesy of ISUZU MOTOR CO.

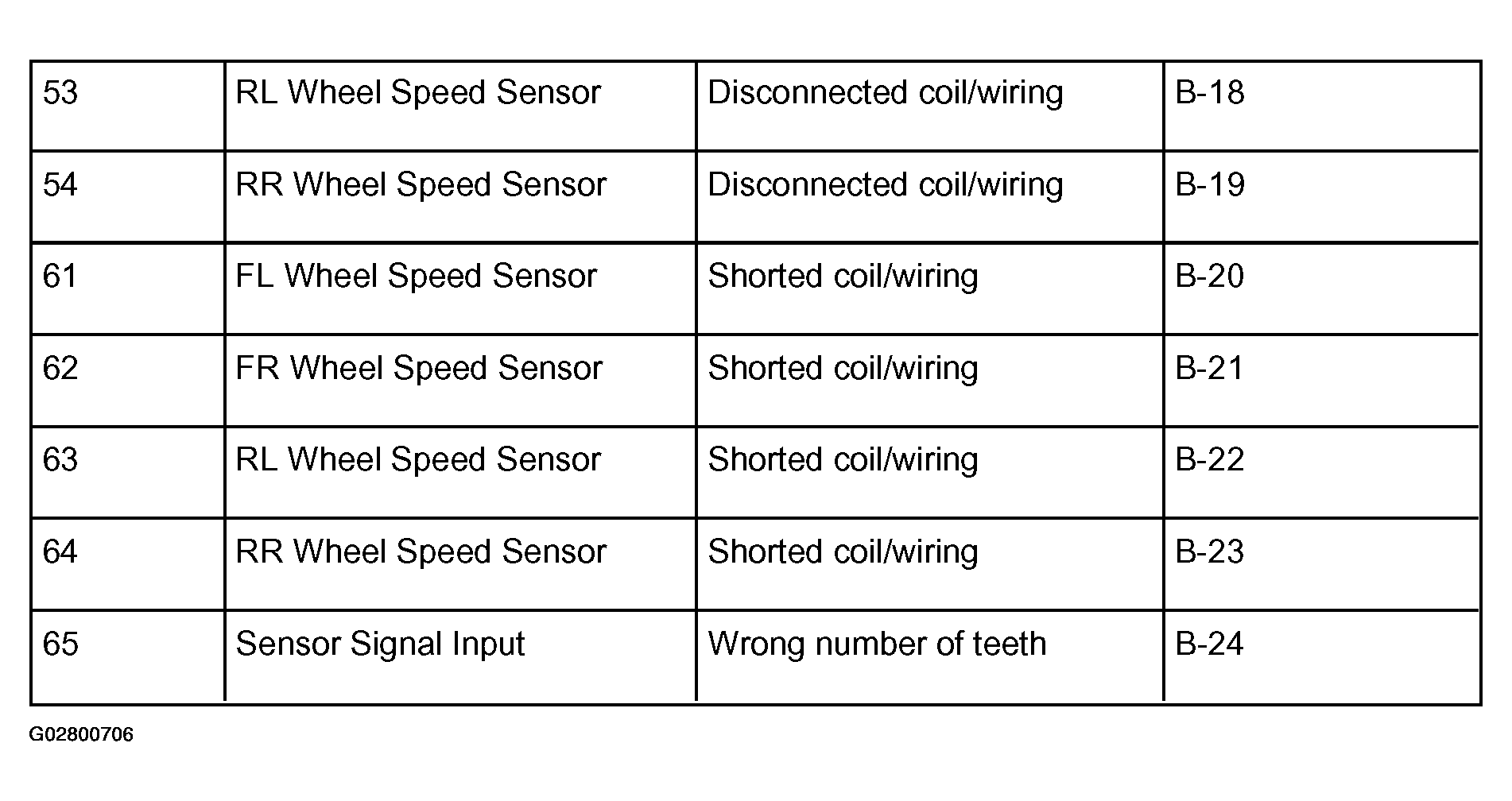

Fig 2: Diagnostic Trouble Codes List (2 Of 2)
G02800706Courtesy of ISUZU MOTOR CO.
