Power Steering Gear: Removal

  1. Remove the stone guard.
  2. Remove the lower fan shroud. Refer to RADIATOR .
  3. Disconnect stabilizer bar at the stabilizer links. Loosen stabilizer bracket fixing nuts.
  4. Remove pipe.
  5. Remove nut.
  6. Use Pitman arm remover J-29107 to remove pitman arm.

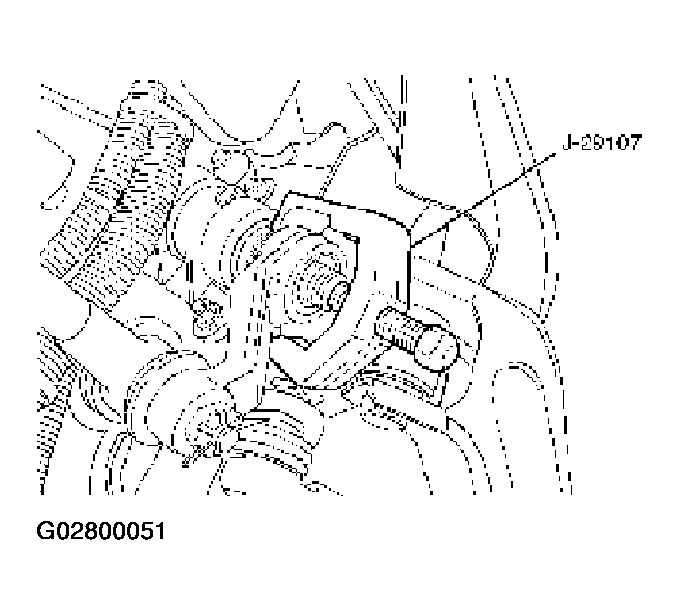

    Fig 1: Removing Pitman Arm
    G02800051Courtesy of ISUZU MOTOR CO.
  7. Make a setting mark (1) across the coupling flange and worm shaft to ensure reassembly of the parts in the original position, then remove universal joint bolt.
    Fig 2: Making Setting Mark
    G02800052Courtesy of ISUZU MOTOR CO.
  8. Push the stabilizer bar aside and remove the gear box mounting bolts and nuts.
    Fig 3: Removing Gear Box Mounting Bolts And Nuts
    G02800053Courtesy of ISUZU MOTOR CO.
  9. Remove gear box.
