4WD Control Unit And Associated Parts

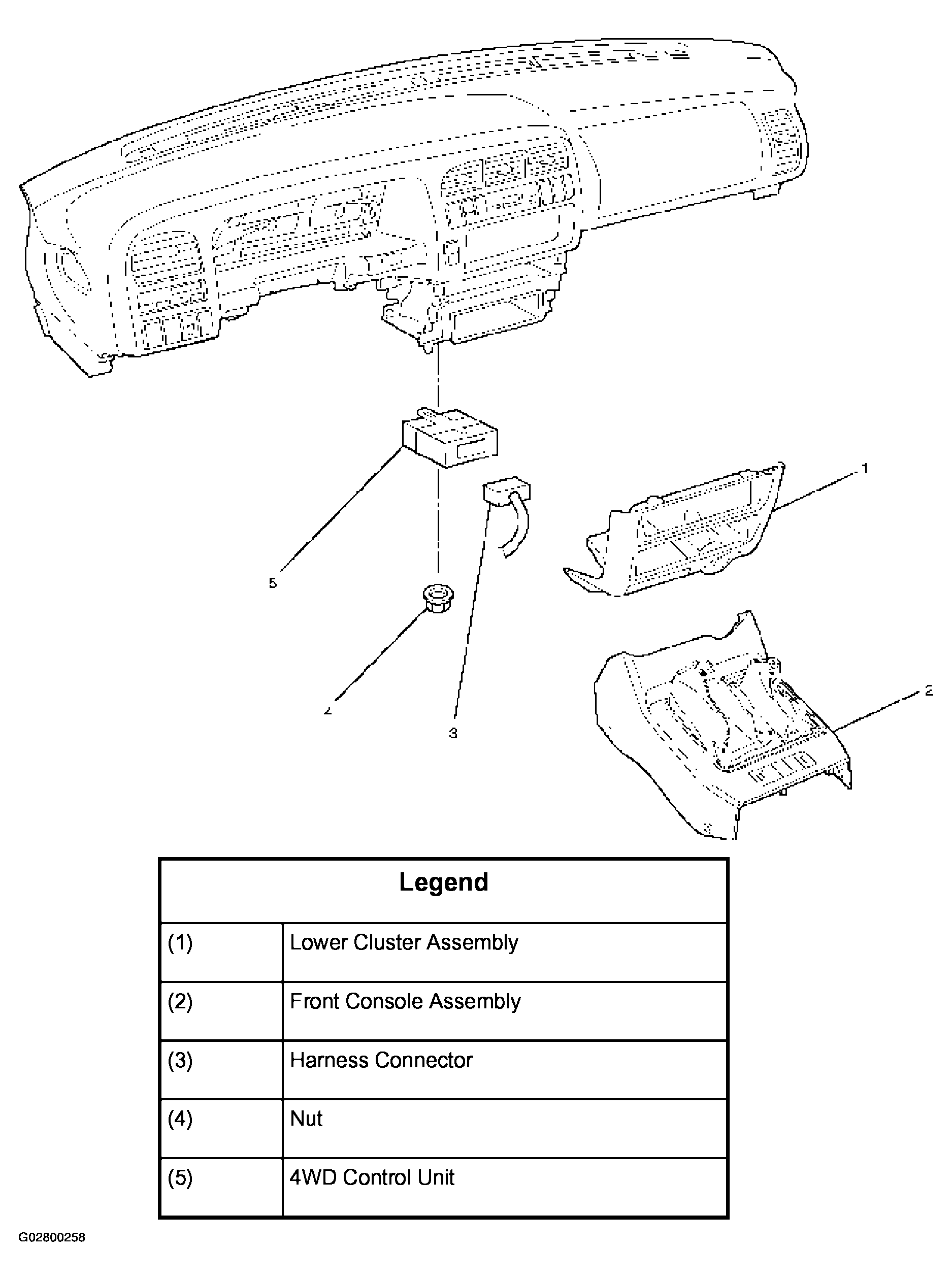

Fig 1: Identifying 4WD Control Unit And Associated Parts
G02800258Courtesy of ISUZU MOTOR CO.
