DTC P0706 Transmission Range Switch (Mode Switch) Performance: Notes

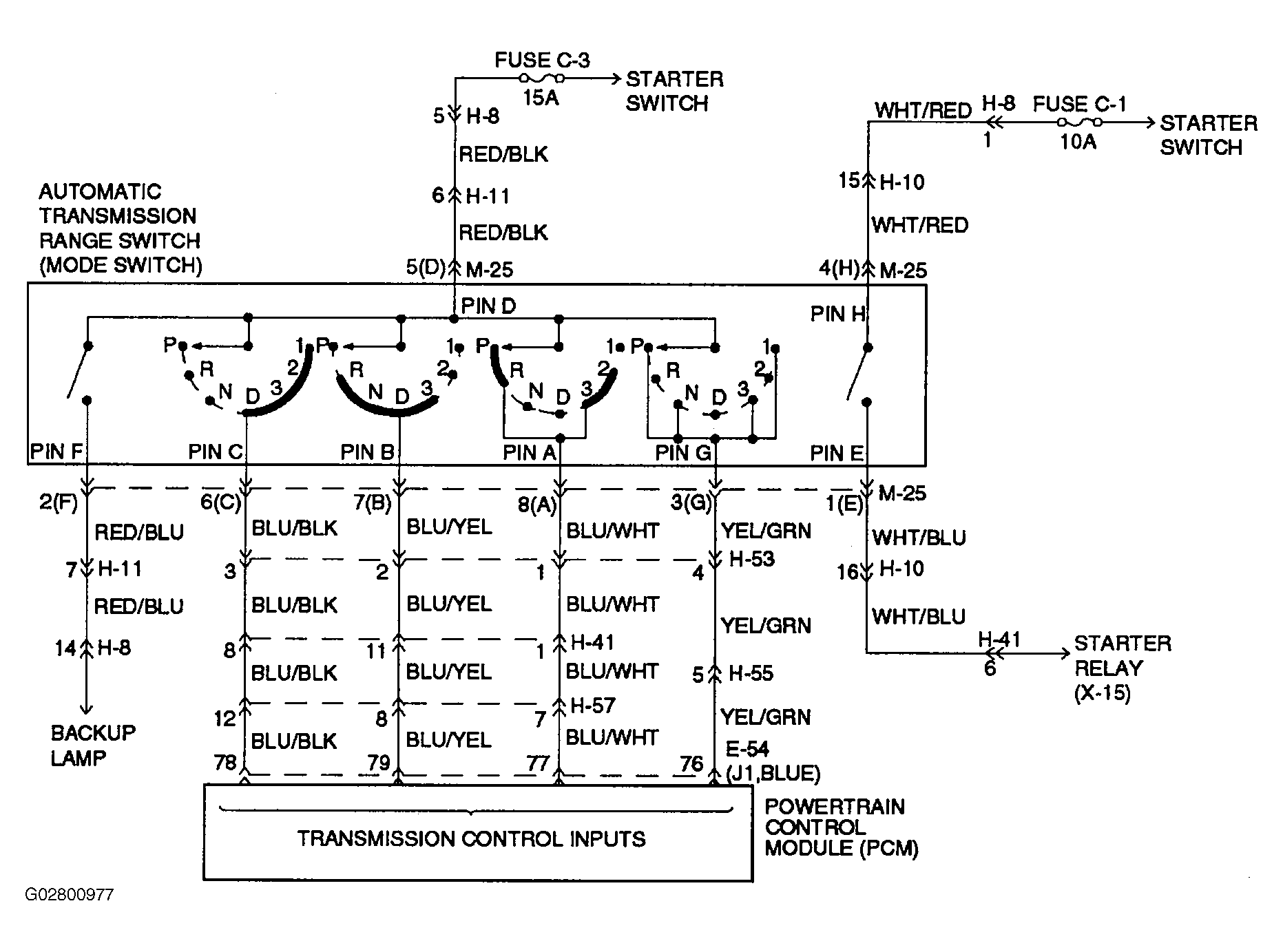

Fig 1: DTC P0706 Transmission Range Switch (Mode Switch) Performance Circuit Diagram
G02800977Courtesy of ISUZU MOTOR CO.
