Transfer Case Shield Replacement

Transfer Case Shield Replacement

Removal Procedure




1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the transfer case shield mounting bolts (3) from the transmission support.
3. Remove the transfer case shield (2) from transmission support.

Installation Procedure

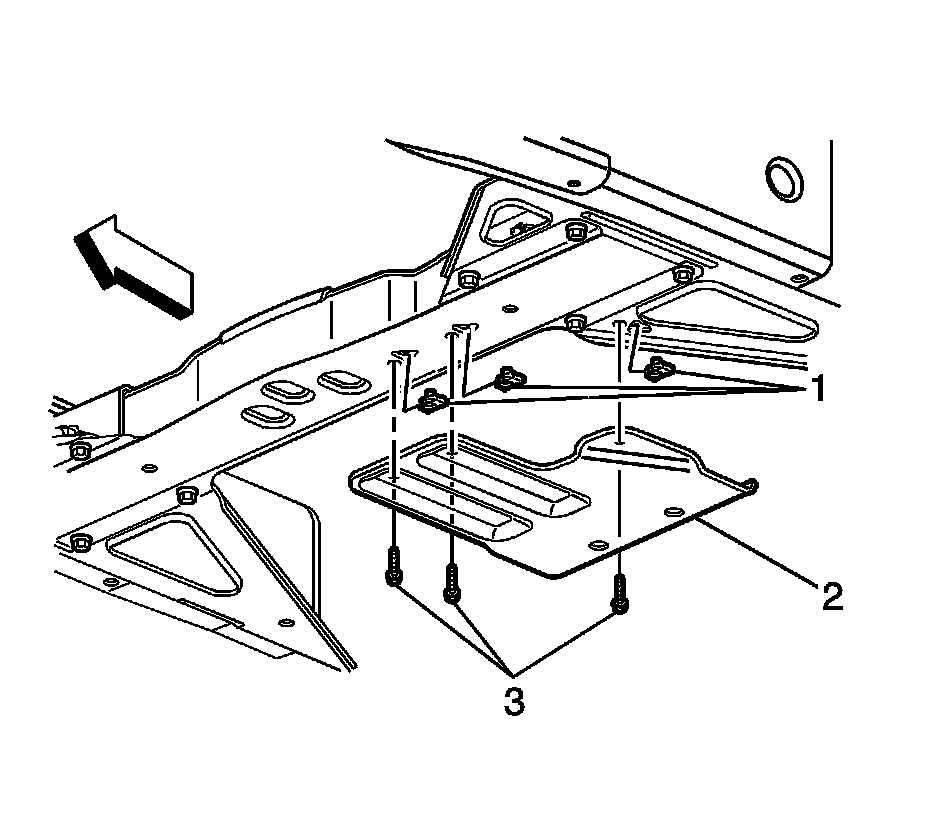

1. Install the transfer case shield (2) to the transmission support. Ensure that the J-nuts (1) are in place.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transfer case shield mounting bolts (3).

Tighten the transfer case shield mounting bolts to 16 N.m (12 lb ft).

3. Lower the vehicle. Refer to Vehicle Lifting.
