Case and Associated Parts
Case and Associated Parts

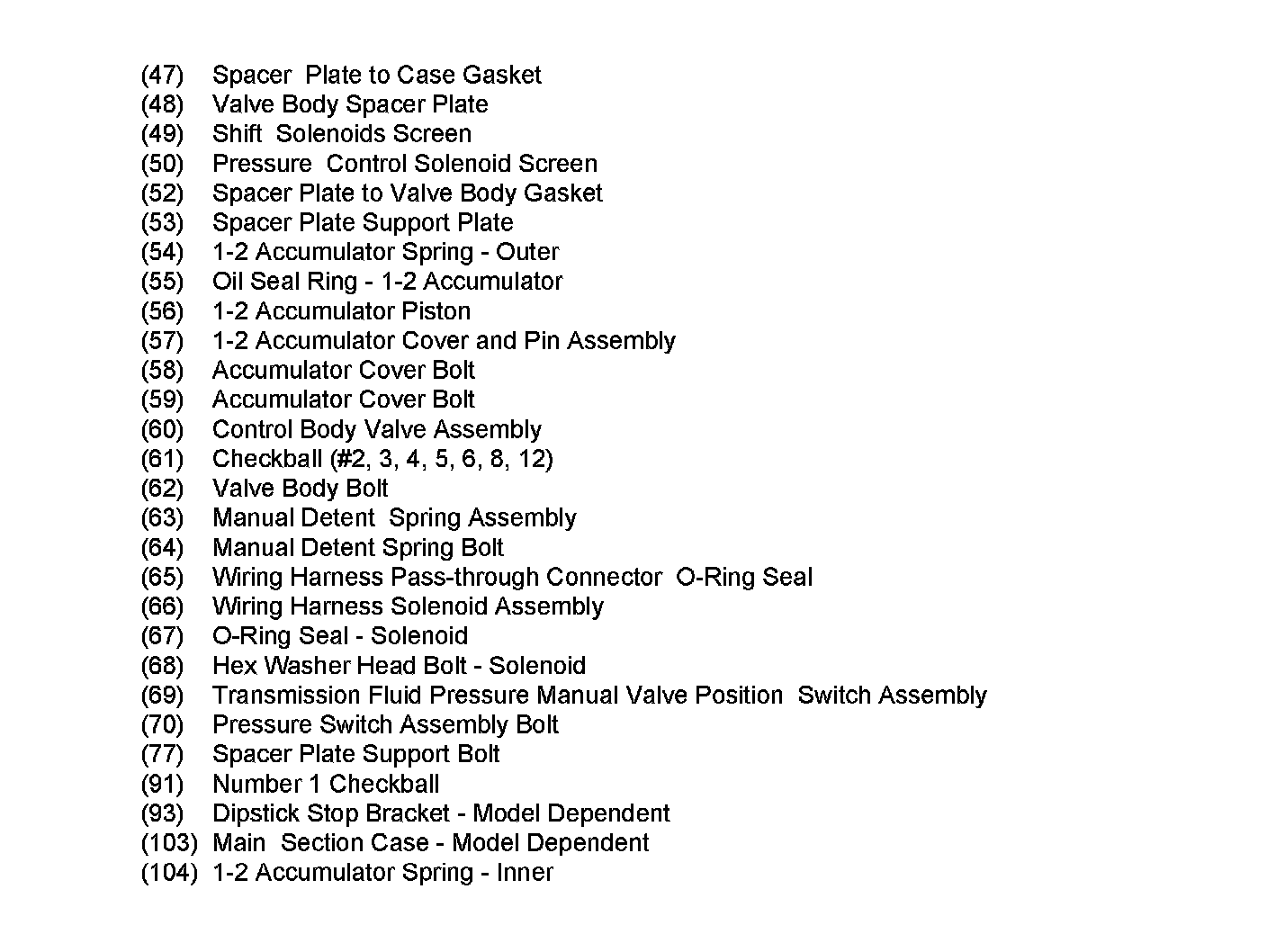

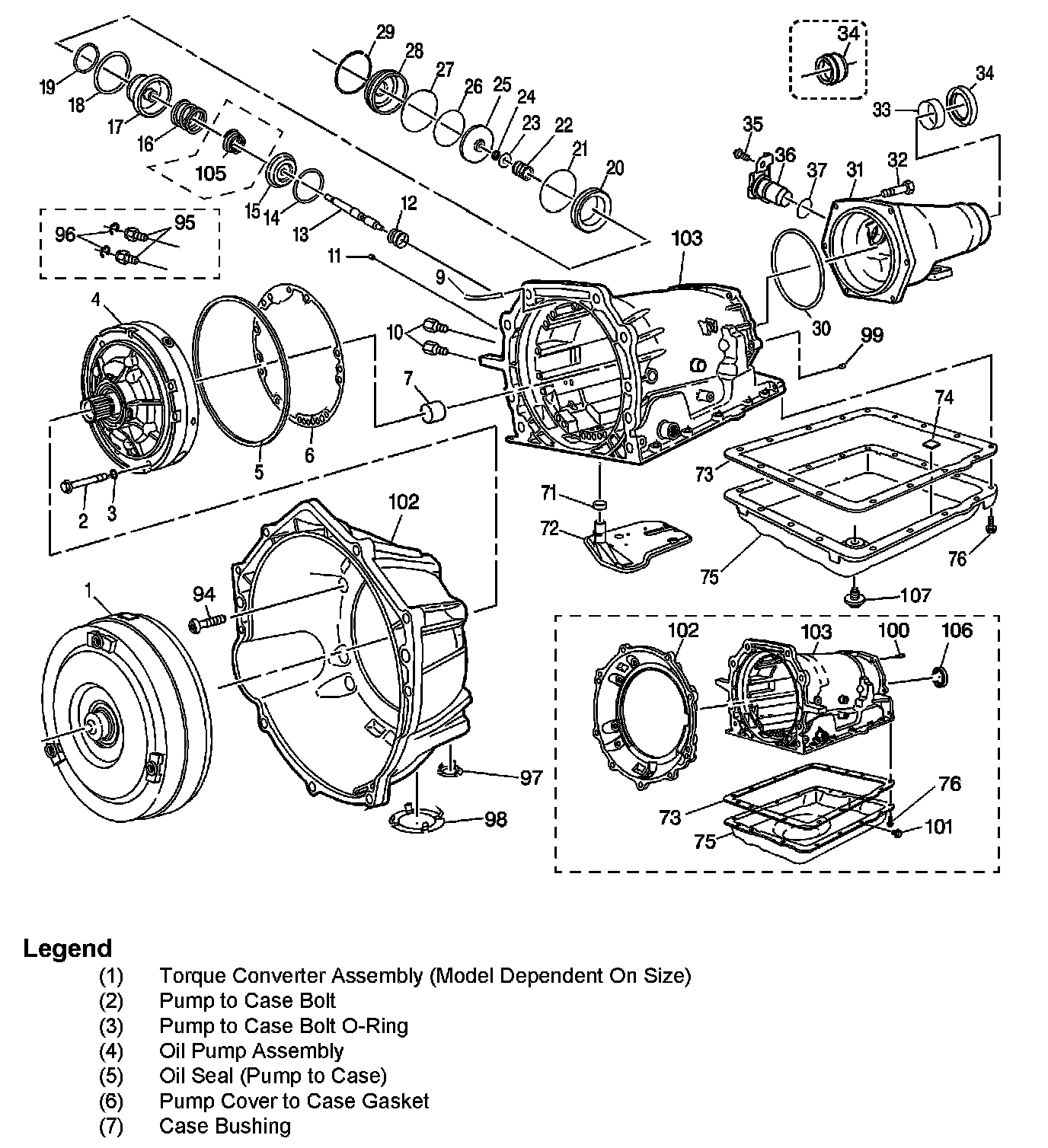

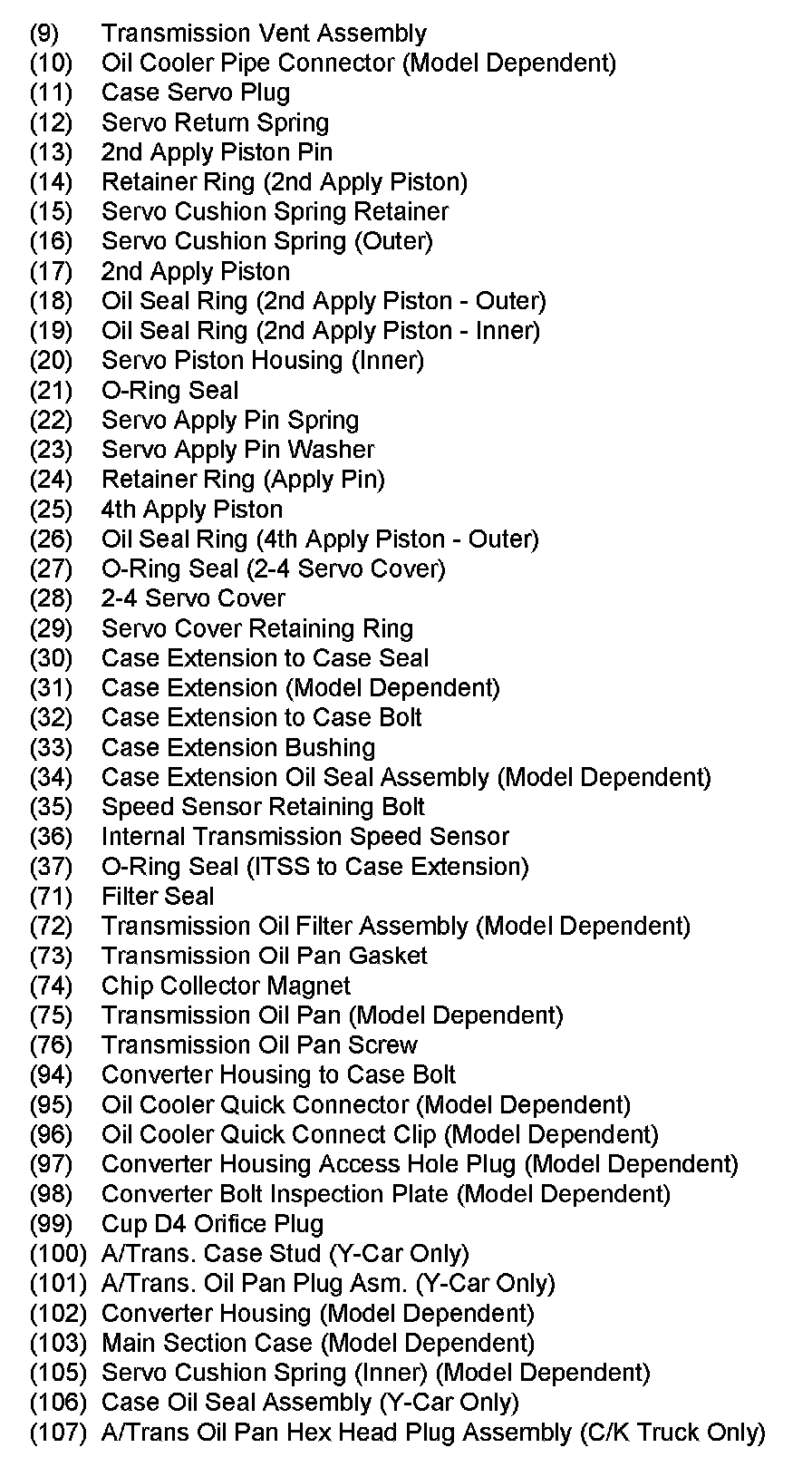

Case and Associated Parts (1 of 2):
Case and Associated Parts (1 of 2):

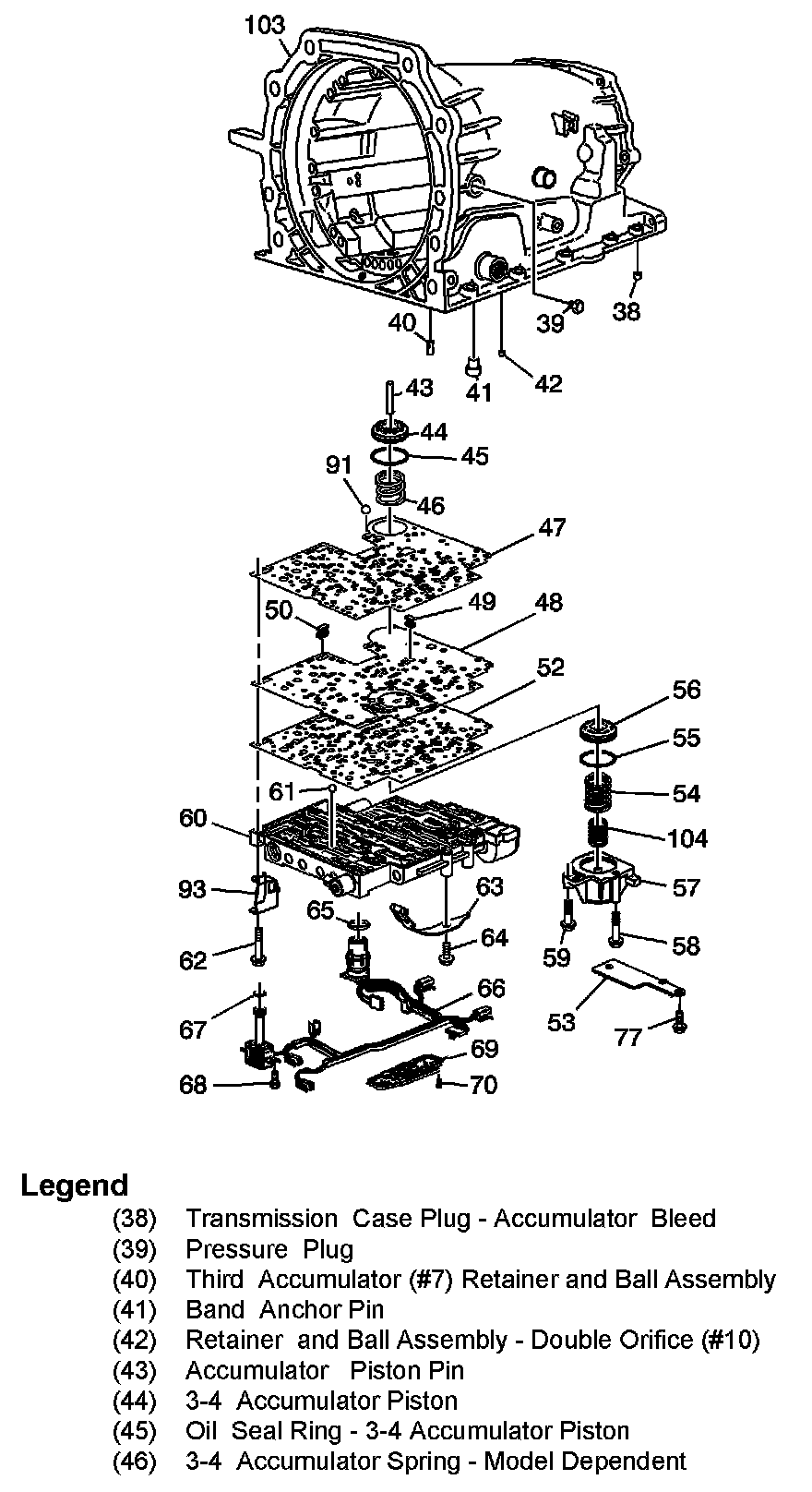

Case and Associated Parts (2 of 2):
Case and Associated Parts (2 of 2):
