Turn Signal/Multi-Function Switch C3

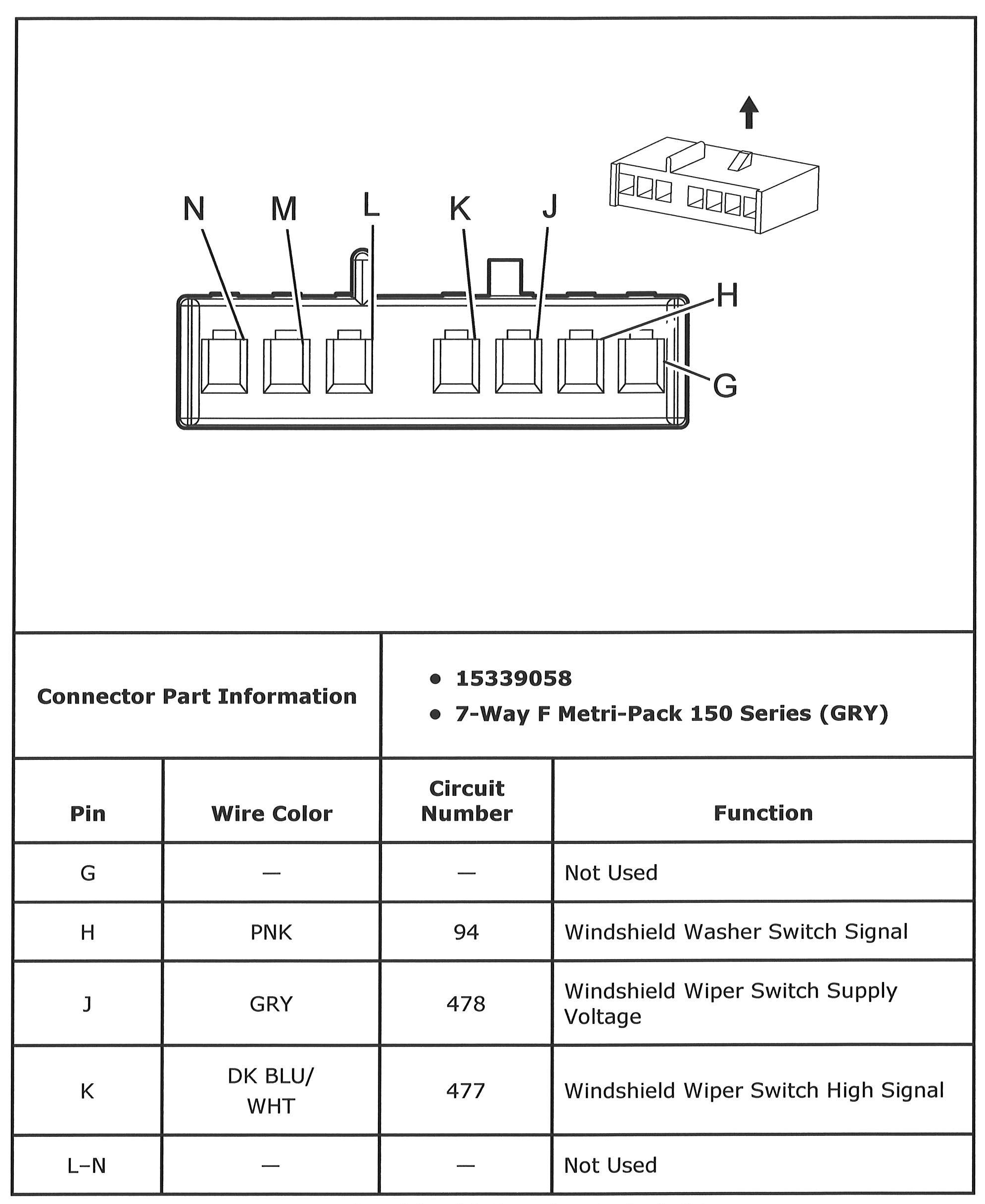

Fig 1: Turn Signal/Multi-Function Switch C3 Connector End View
G00539547Courtesy of ISUZU MOTOR CO.
