Map Light

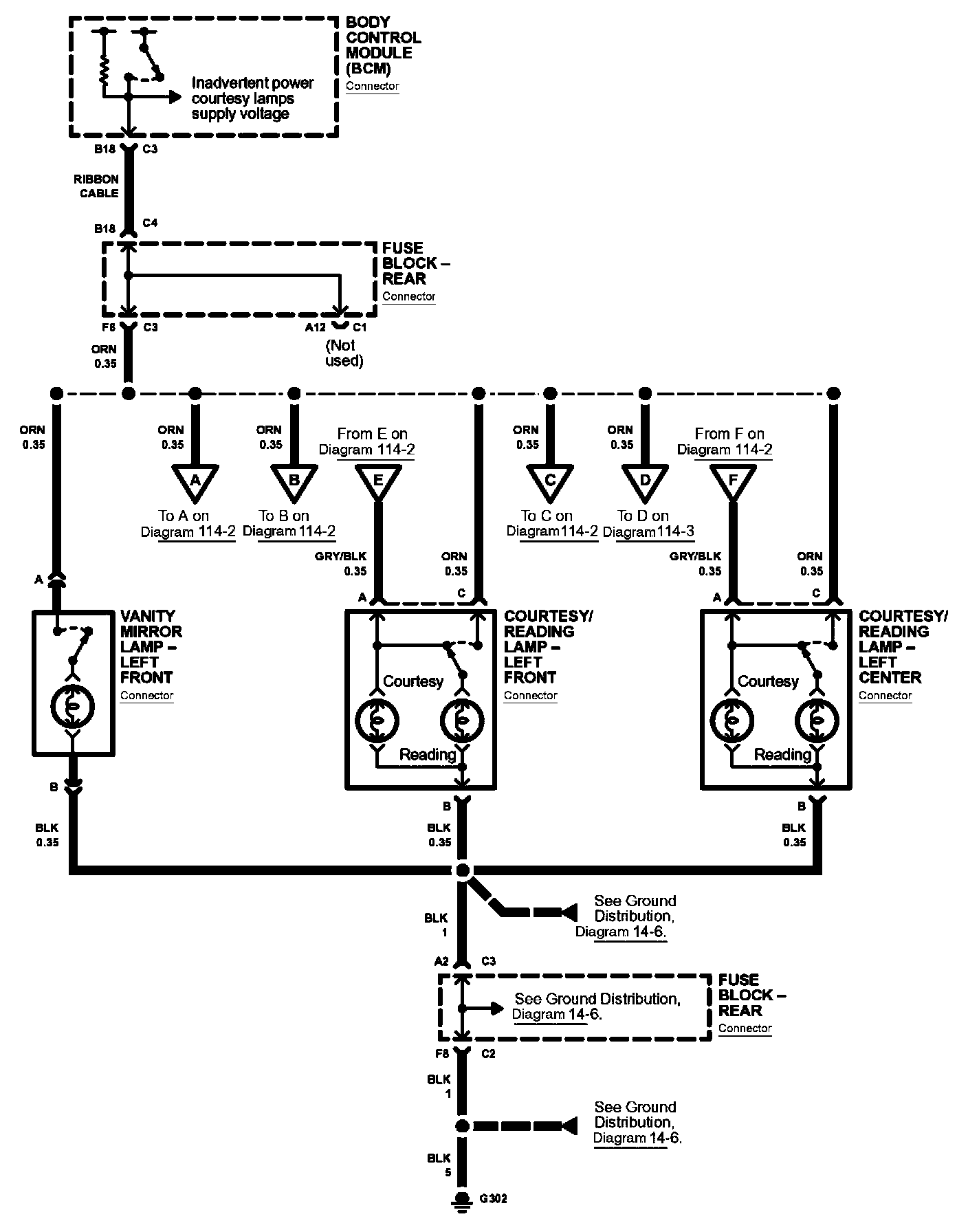

Diagram 114-0:

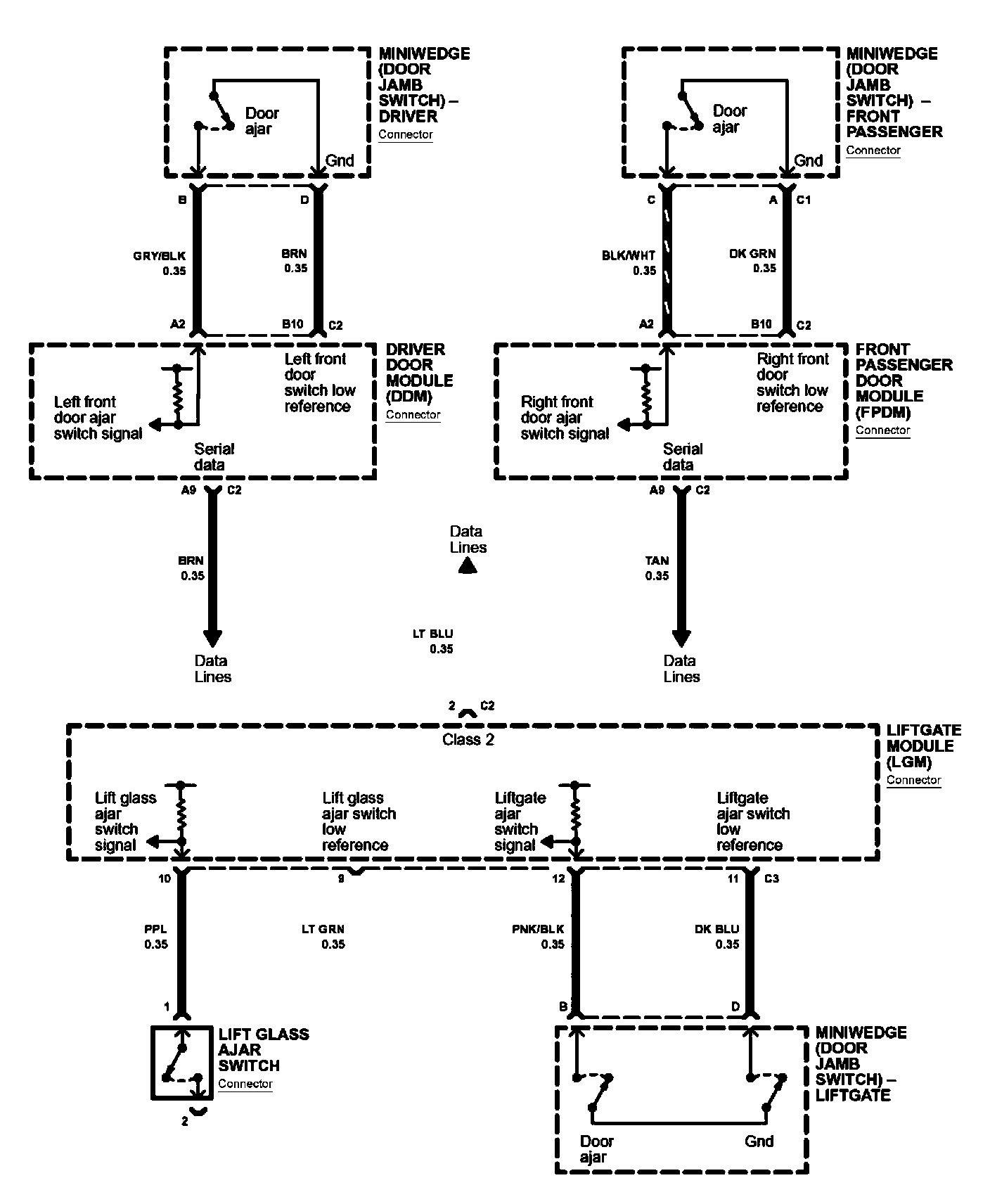

Diagram 114-1:

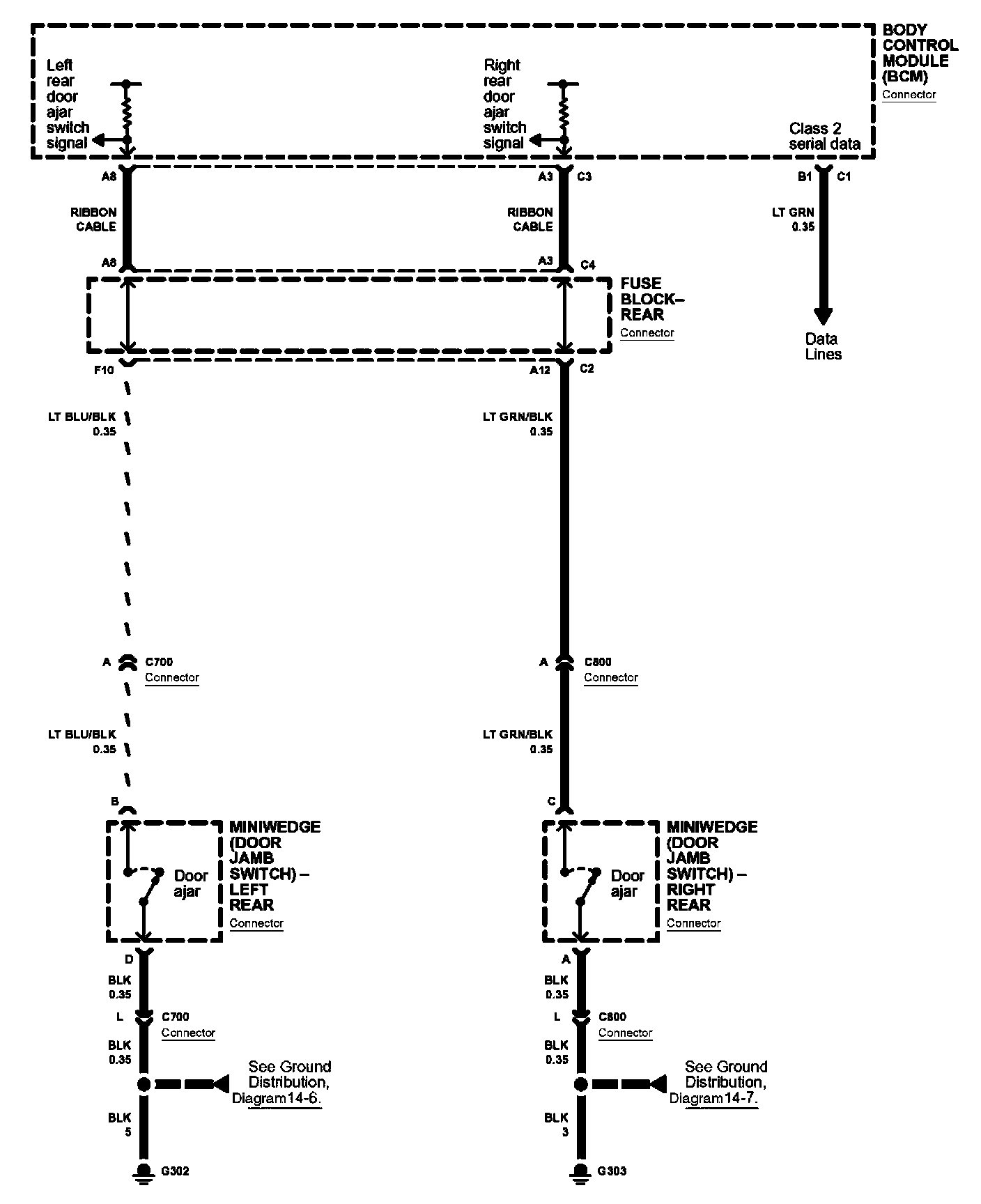

Diagram 114-2:

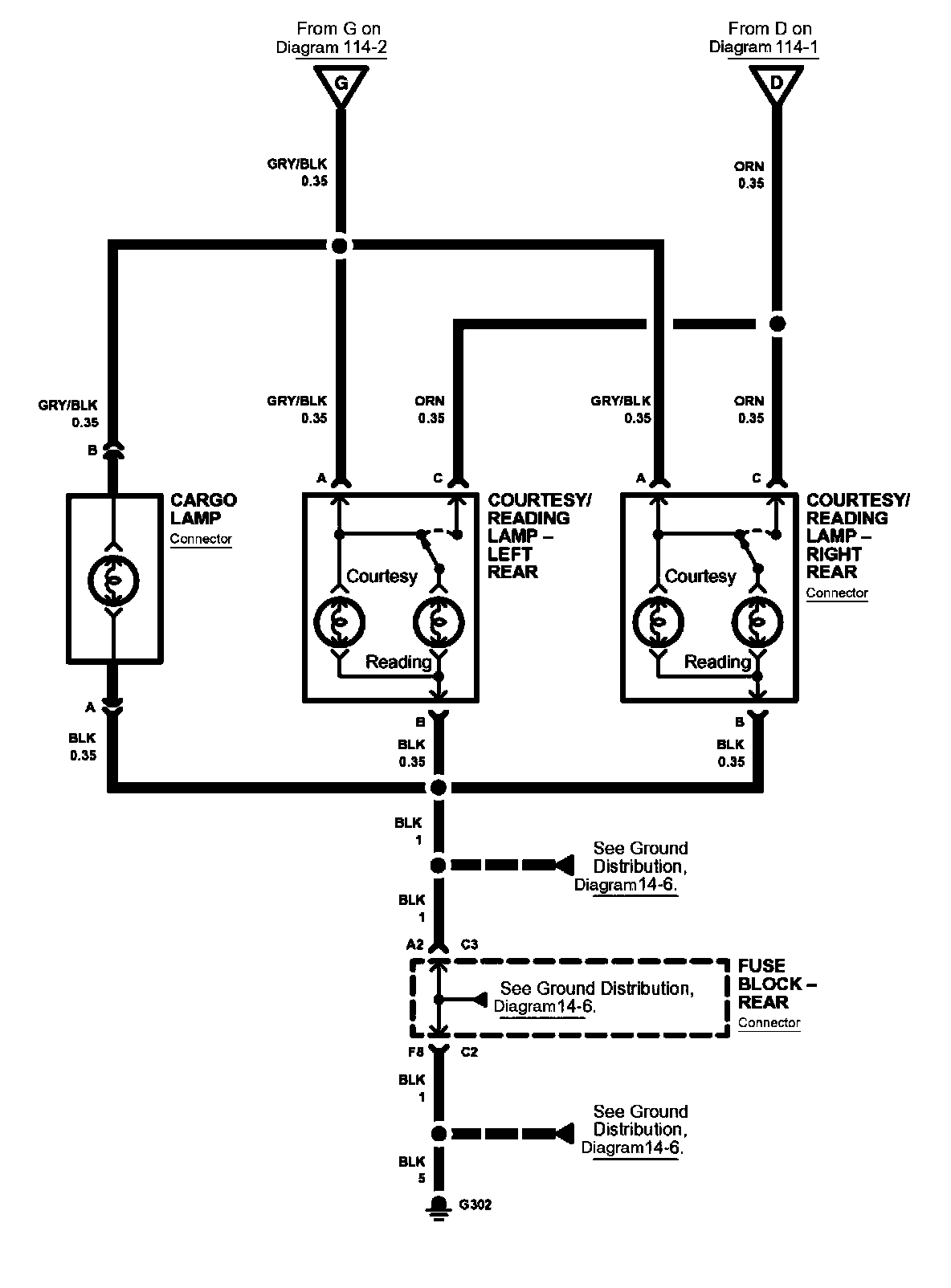

Diagram 114-3:

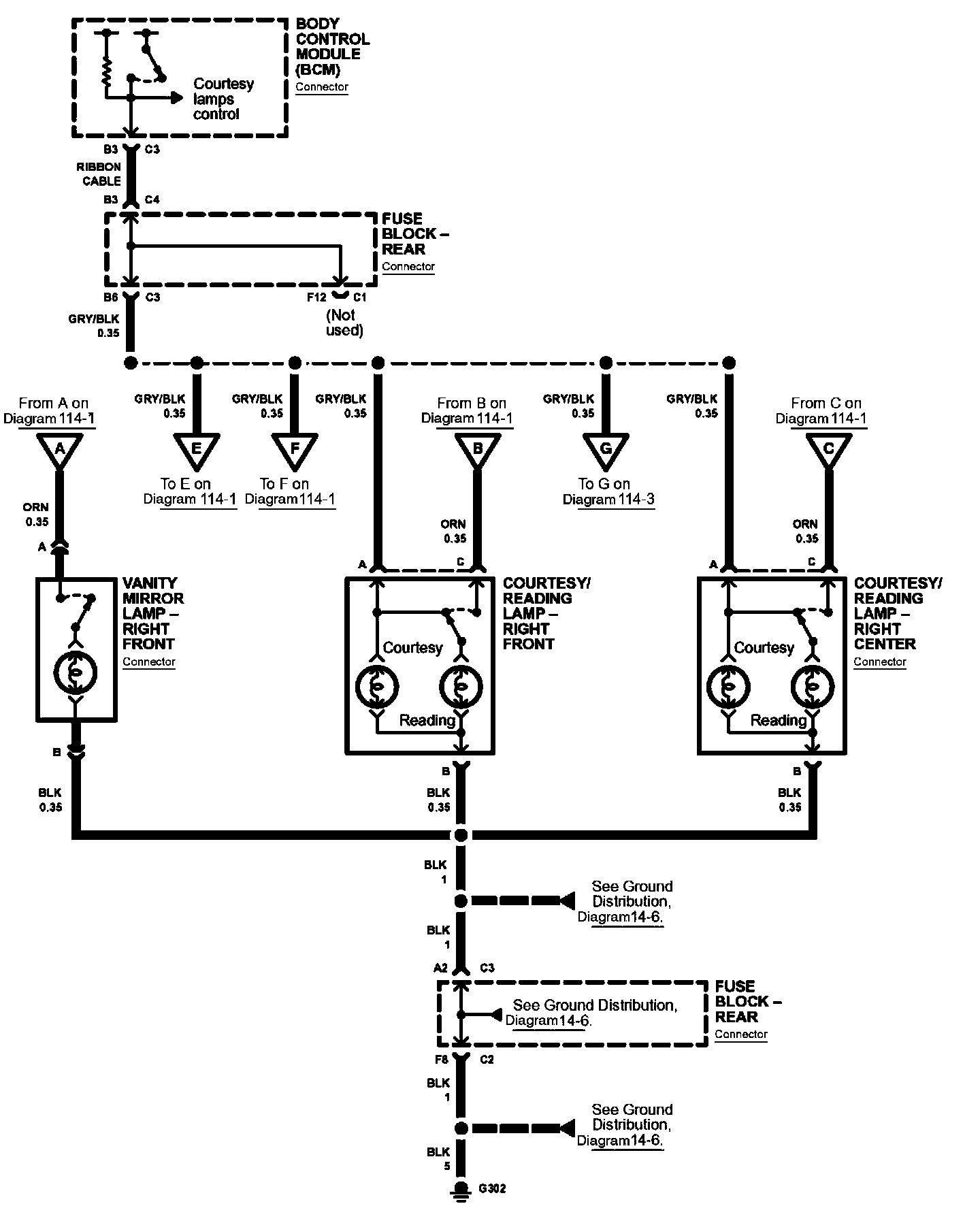

Diagram 114-4:

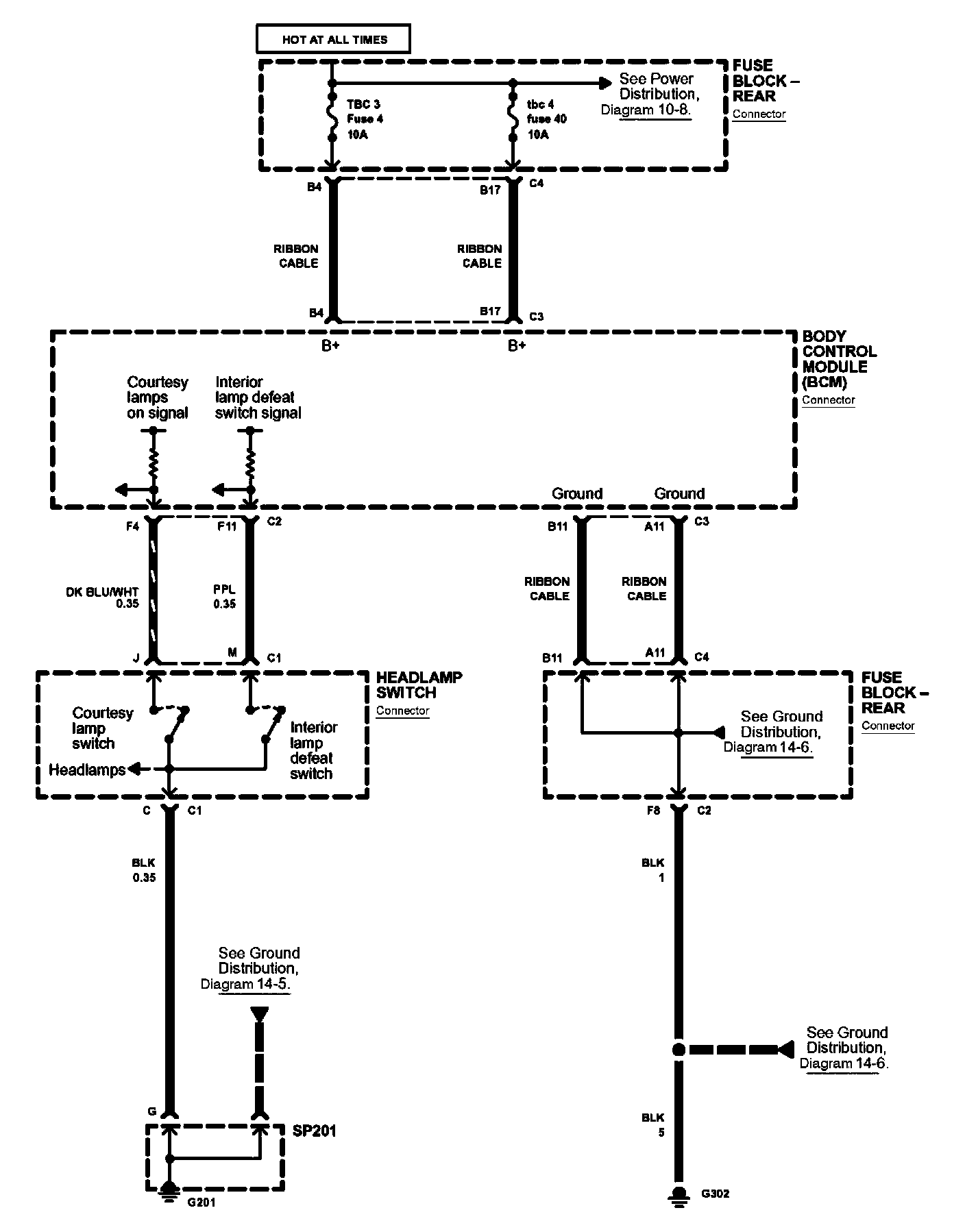

Diagram 114-5:

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
