Positive

Battery Positive Cable Replacement

Removal Procedure
1. Disconnect the battery negative cable.
2. Disconnect the battery positive cable from the battery.




3. Disconnect the harness from the engine harness bracket.

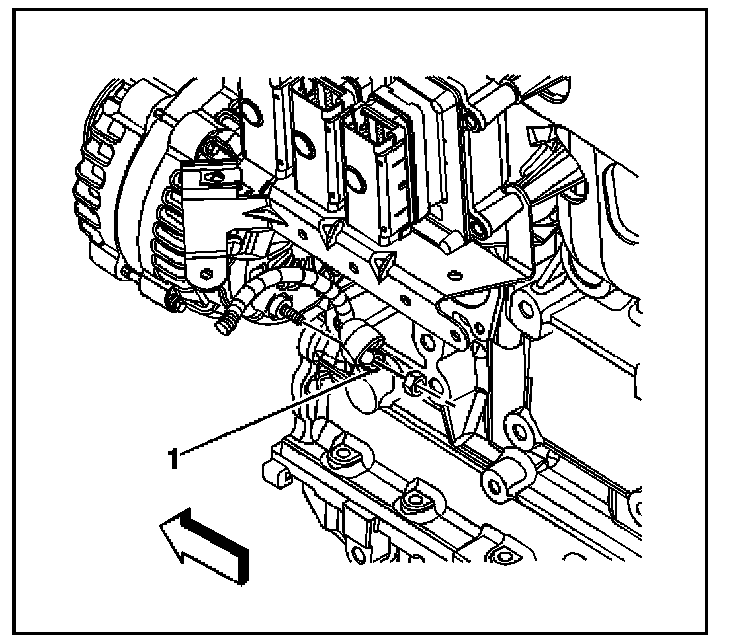

4. Disconnect the positive cable lead from the starter (1).

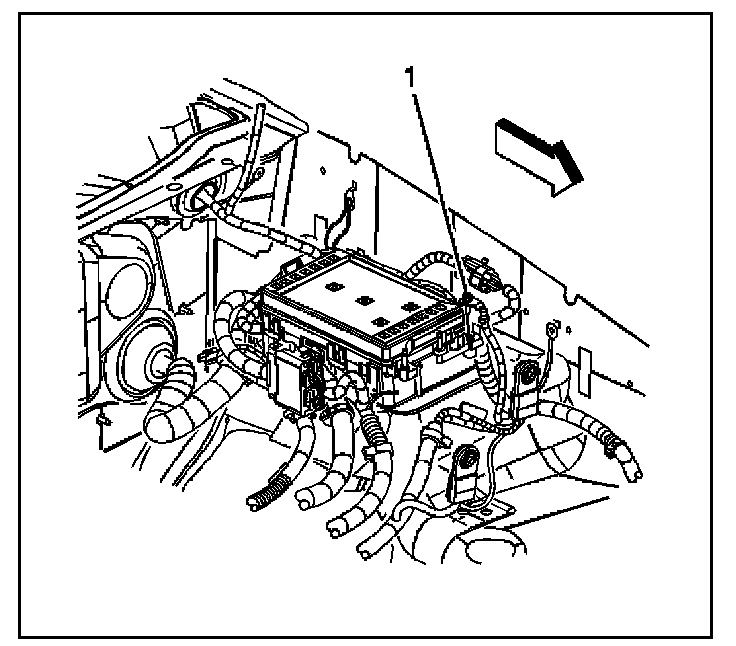

5. Disconnect the positive cable lead from the junction block (1).

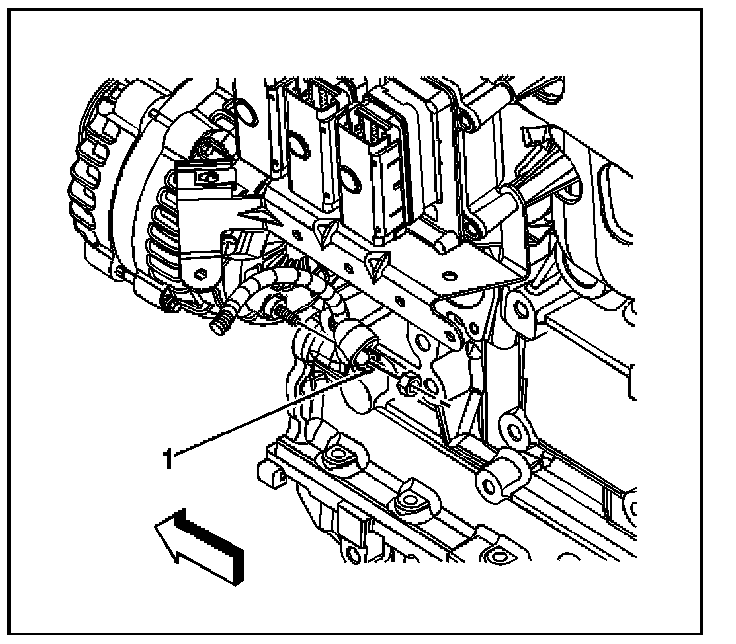

6. Disconnect the positive cable lead from the generator (1).

Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the new positive cable to the generator and secure the positive cable with the nut (1).

Tighten:
Tighten the positive cable bolt to 9 Nm (80 lb in).

2. Connect the positive cable to the junction block and secure the positive cable with the bolt.

Tighten:
Tighten the positive cable nut to 10 Nm (89 lb in).

3. Connect the positive cable to the starter and secure the positive cable with the nut.

Tighten:
Tighten the nut 9 Nm (80 lb in).




4. Connect the harness to the engine harness bracket.
5. Connect the cable to the positive battery post.

Tighten:
Tighten the battery positive bolt to 15 Nm (11 lb ft).

6. Connect the battery negative cable.
