Cylinder Head/Upper Engine

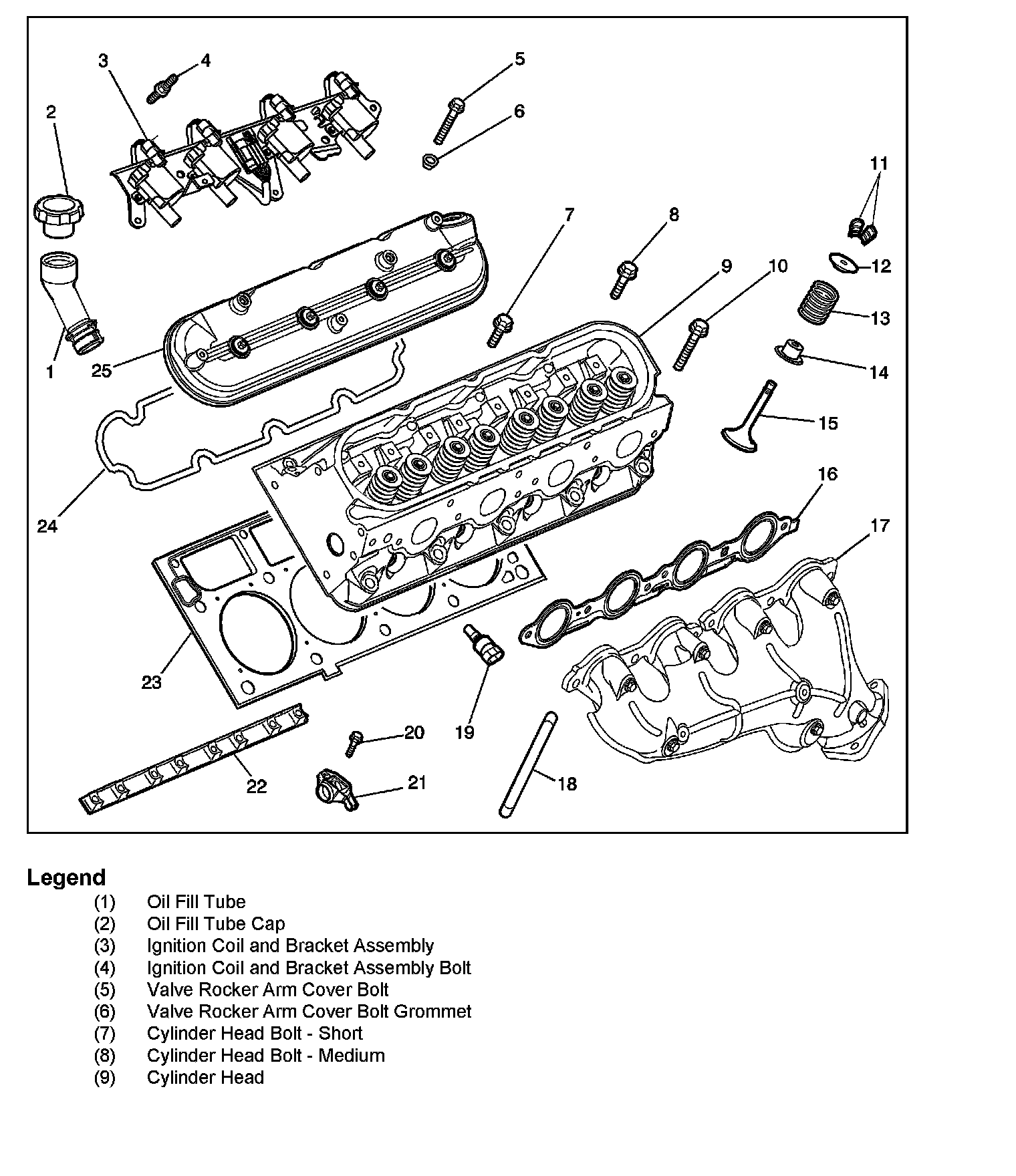

Cylinder Head/Upper Engine (1 Of 2):
Cylinder Head/Upper Engine (2 Of 2):
