Generator Replacement

Generator Replacement

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.




3. Disconnect the generator electrical connector.

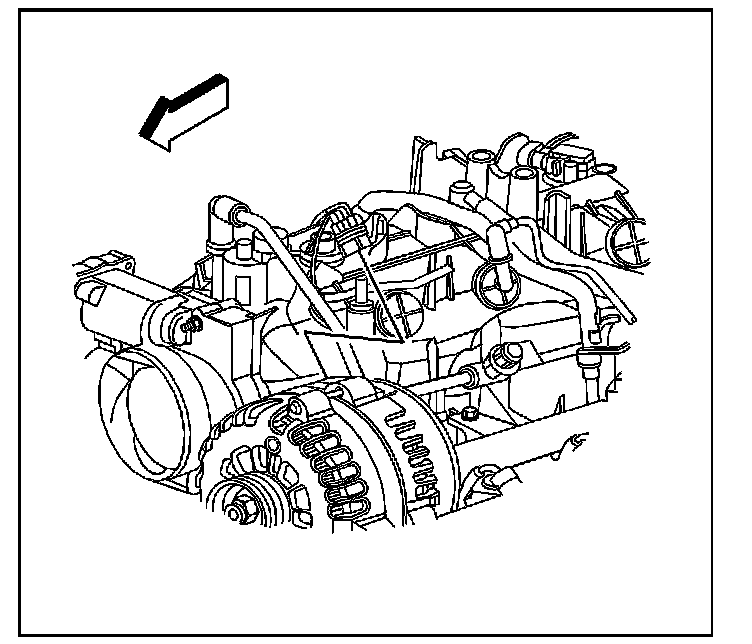

4. Remove the generator cable (3) from the generator, perform the following:
4.1. Slide the boot (1) down revealing the terminal stud.
4.2. Remove the generator cable nut (2) from the terminal stud.
4.3. Remove the generator cable (3).

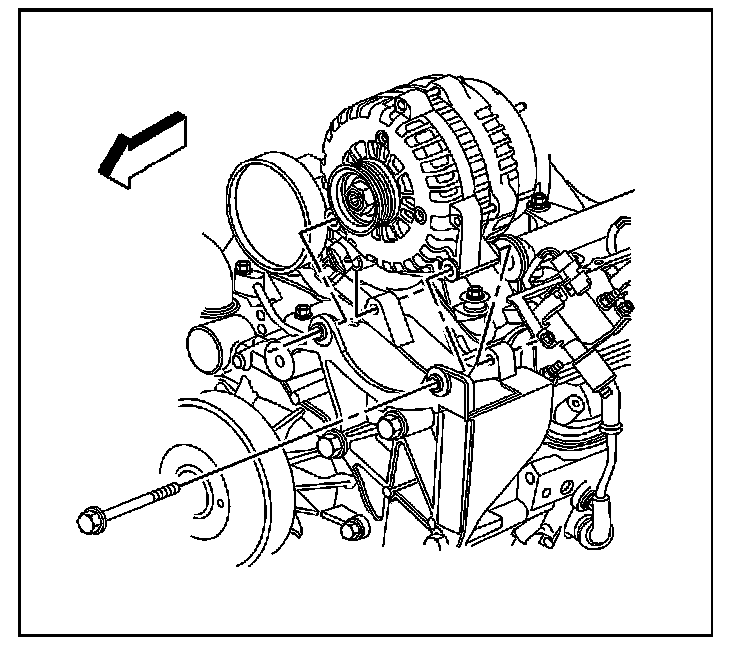

5. Remove the generator bolts.




6. Remove the generator.

Installation Procedure

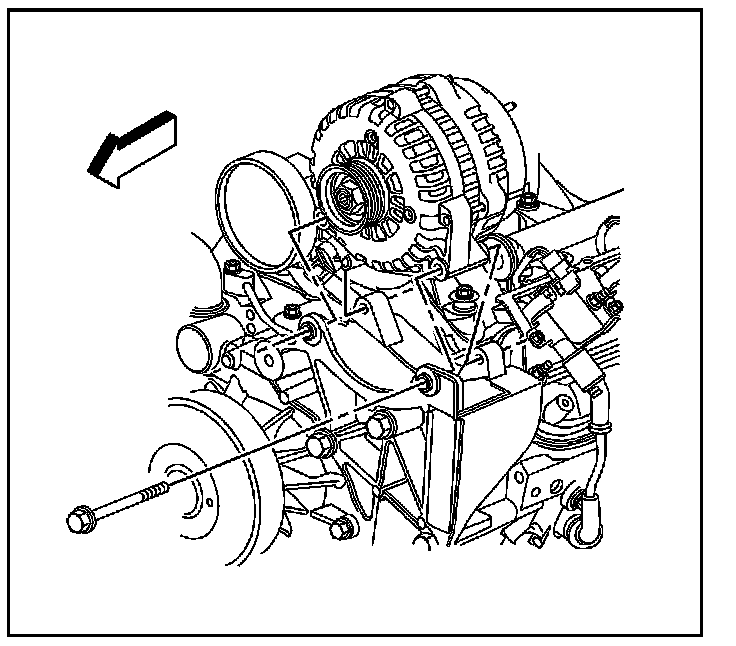

1. Install the generator.

NOTE: Refer to Fastener Notice in Cautions and Notices.




2. Install the generator bolts.

Tighten:
Tighten the bolts to 50 Nm (37 lb ft).




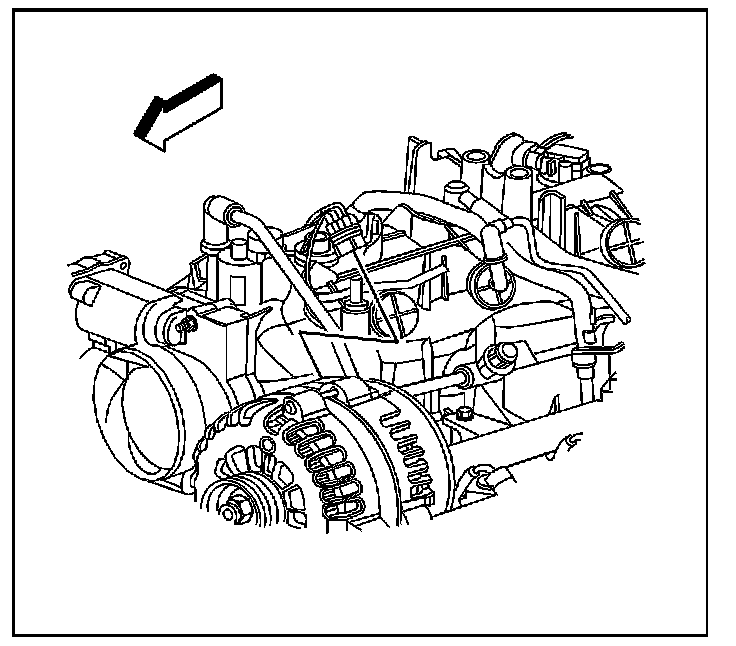

3. Install the generator cable (3) to the generator, perform the following:

3.1. Install the generator cable (3).
3.2. Install the generator cable nut (2) to the terminal stud.

Tighten:
Tighten the nut to 9 Nm (80 lb in).

3.3. Slide the boot (1) over the terminal stud.

4. Connect the generator electrical connector.
5. Install the accessory drive belt.




6. Connect the negative battery cable.
