Brake System - Connector End Views
>>
Brake System - Connector End Views
>>
Antilock Brake System Connector End Views
>>
Traction Control Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Traction Control Switch

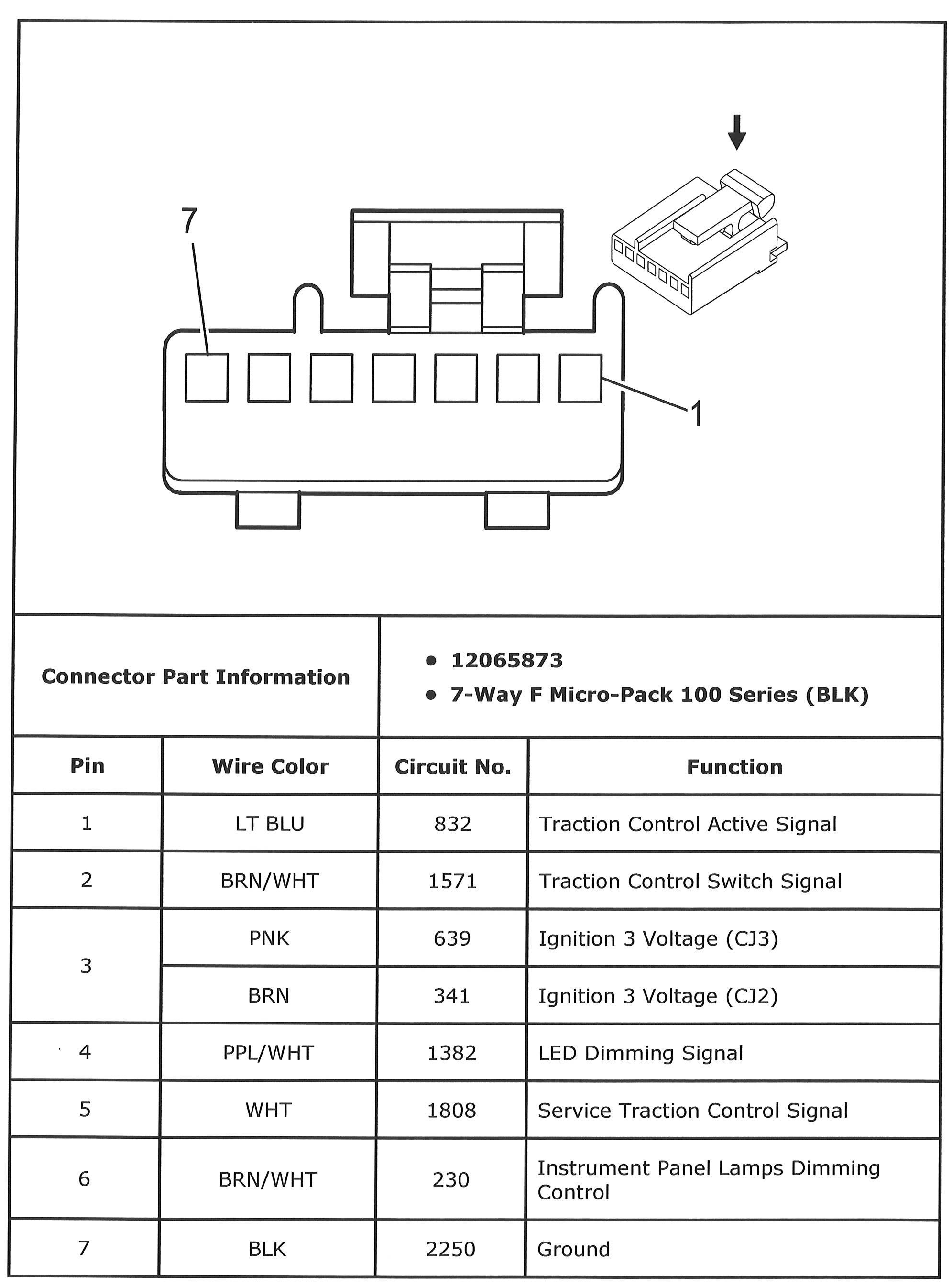

Fig 1: Traction Control Switch Connector End View
Courtesy of GENERAL MOTORS COMPANY
