Front Fender: Service and Repair

Front Fender Panel

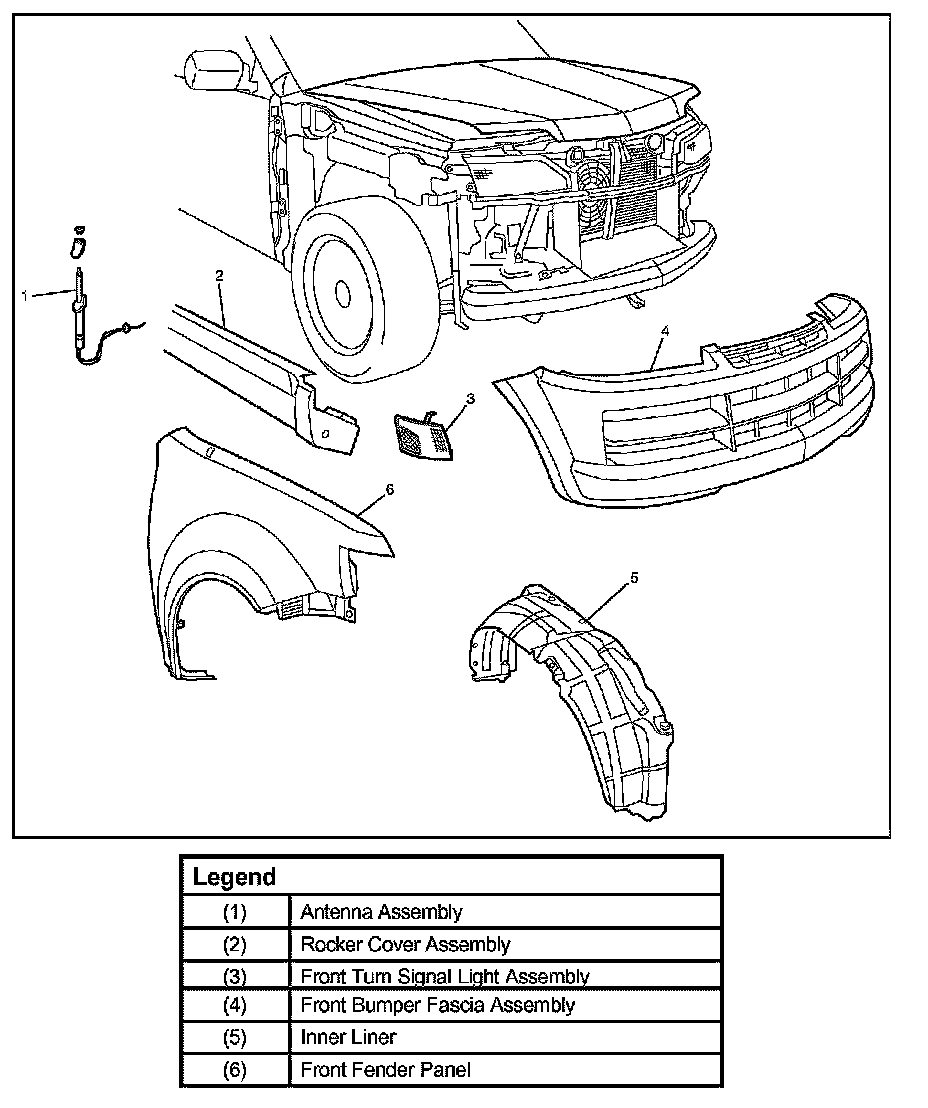

Parts Location:

Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.
3. Remove the front turn signal light assembly.
- Remove the fixing screw and disconnect the connector.







4. Remove the rocker cover assembly.
5. Remove the inner liner.







6. Remove the antenna assembly.
7. Remove the front fender panel (1).
- Remove the eight fixing bolts.

8. Remove the engine compartment upper extension (2).







Installation
To install, follow the removal steps in the reverse order, noting the following points:
1. Tighten the front fender panel fixing bolts to the specified torque.
Torque: 7 N.m (61 lb in)

2. Check the fender and front door (1).
Clearance: 5.0 mm (0.196 in)
Height (step): Flush
