Transmission Control Systems

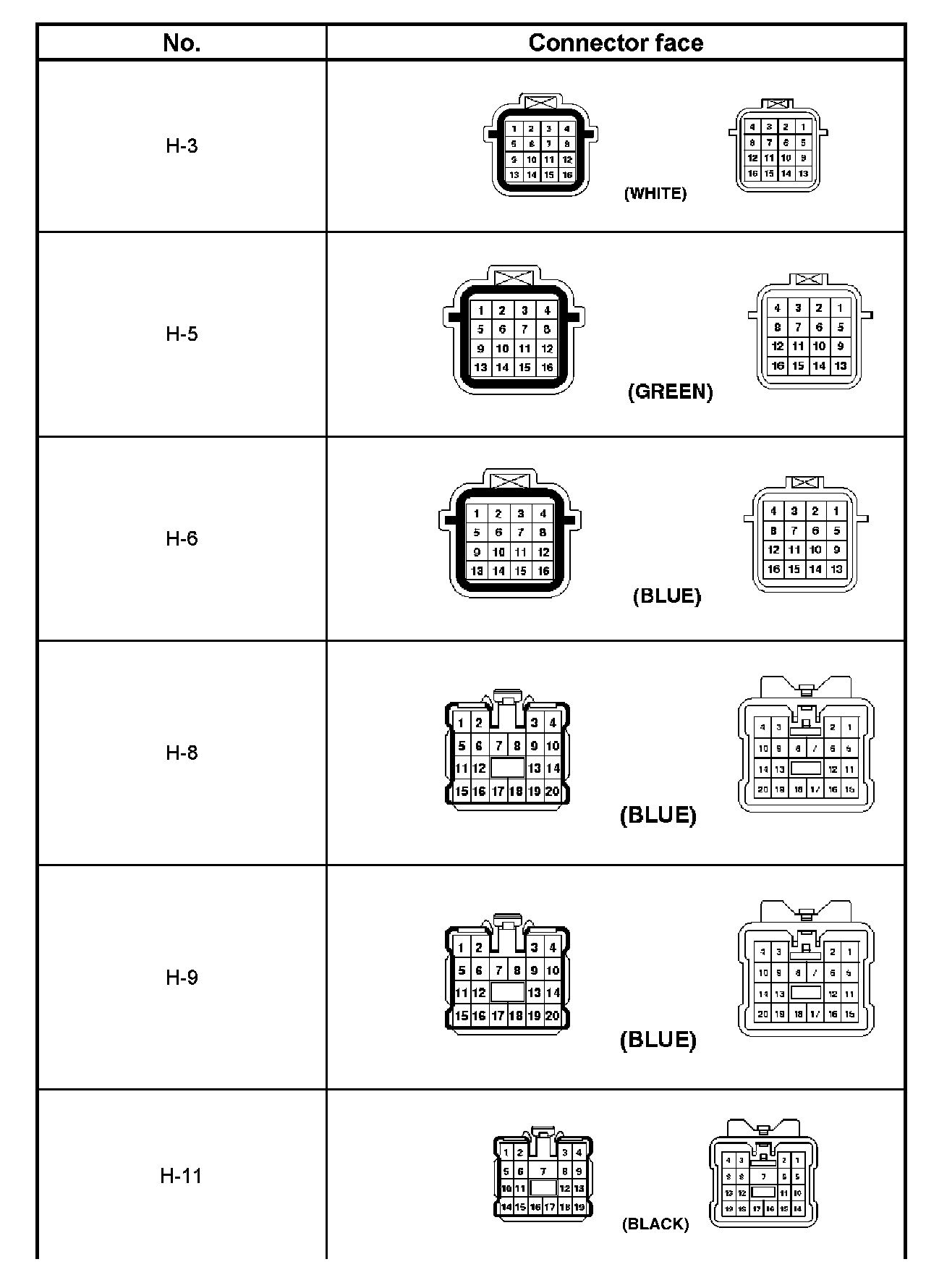

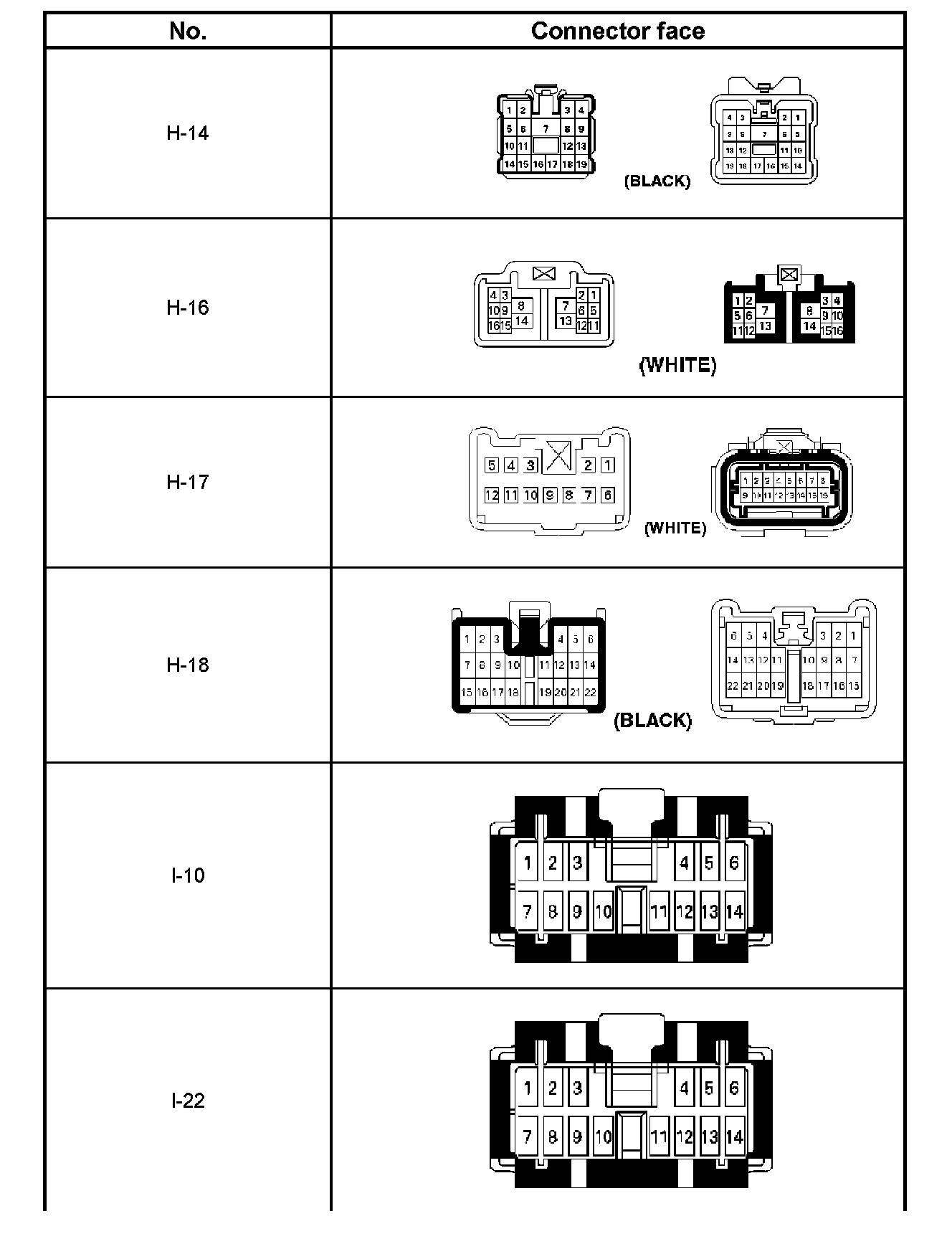

Harness Connector Faces





1 of 5





2 of 5





3 of 5





4 of 5





5 of 5
