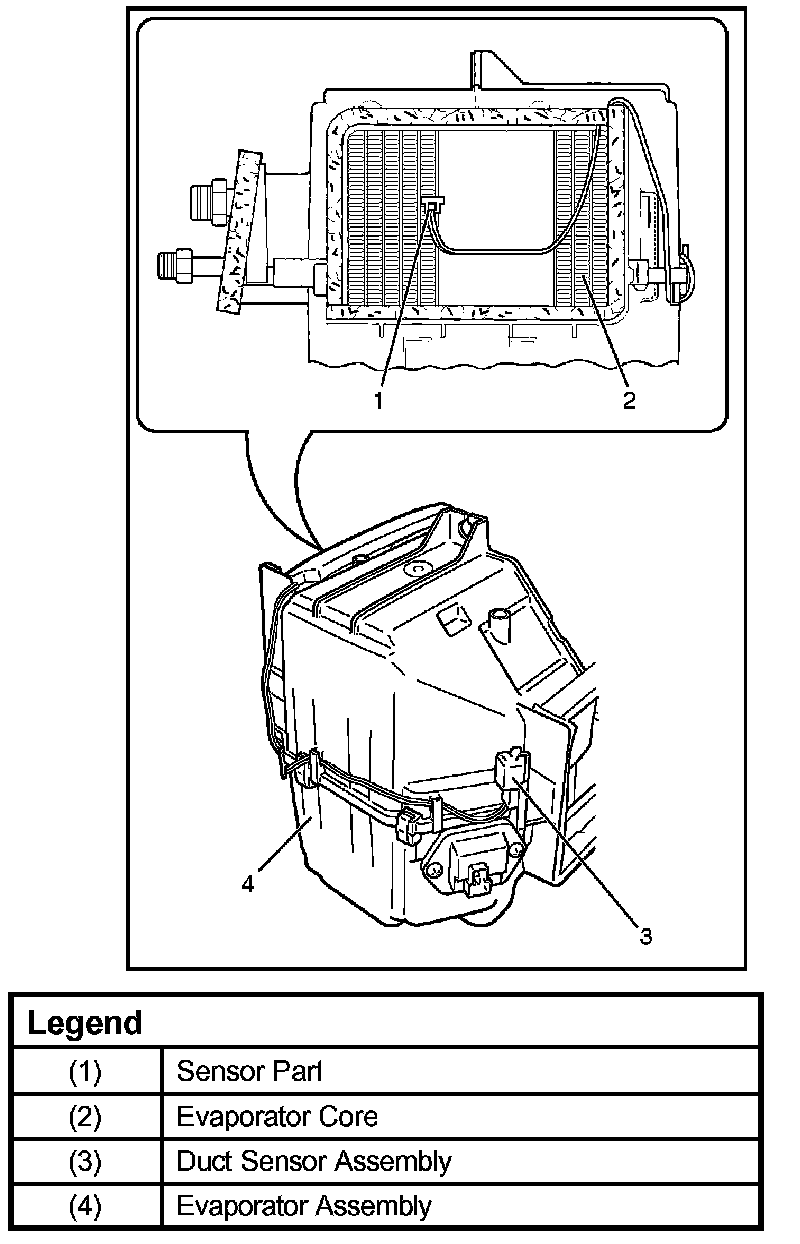

Duct Sensor

Duct Sensor:

Duct Sensor

Removal

1. Disconnect the battery ground cable.
2. Remove the evaporator assembly.
- Refer to Evaporator Assembly in this section.
3. Remove the duct sensor assembly.

Installation

To install, follow the removal step in the reverse order.
