Power Transistor HVAC: Service and Repair

Power Transistor:

Power Transistor

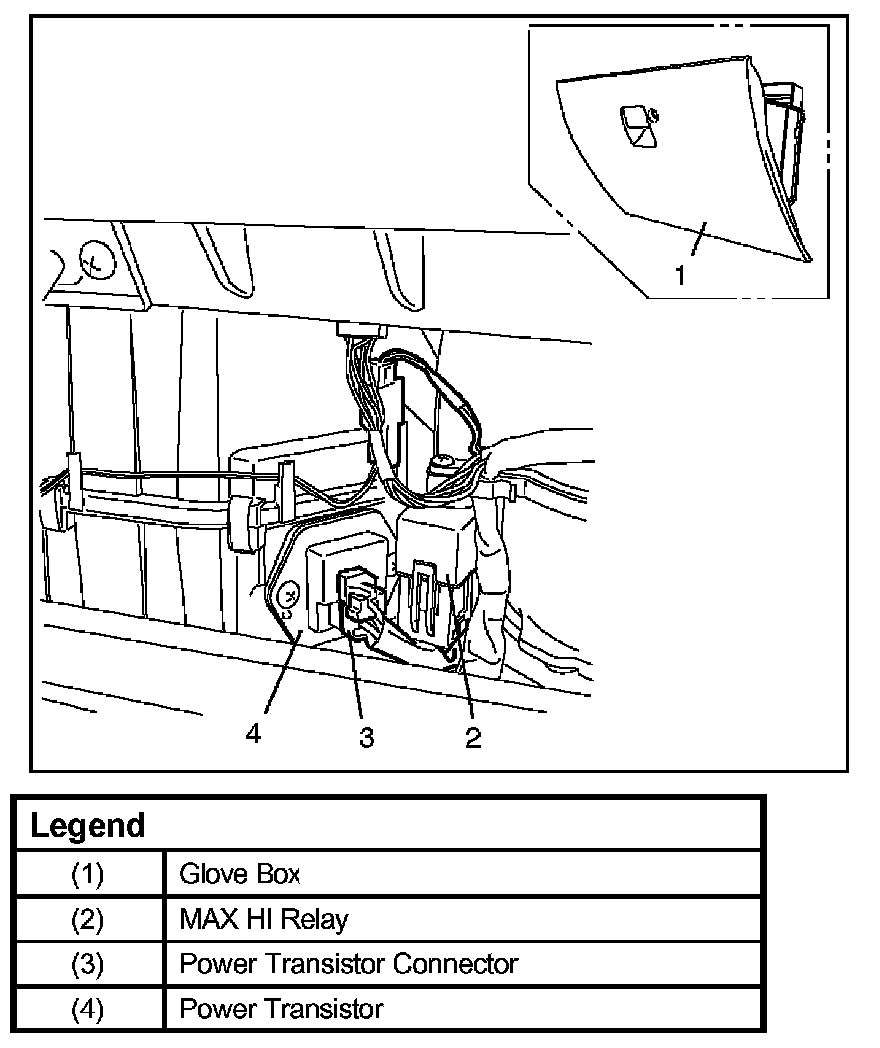

Removal

1. Remove the glove box.
2. Remove the MAX-HI relay.
3. Disconnect the power transistor connector.
4. Remove the power transistor.

Installation

To install, follow the removal step in the reverse order.
