Grounds

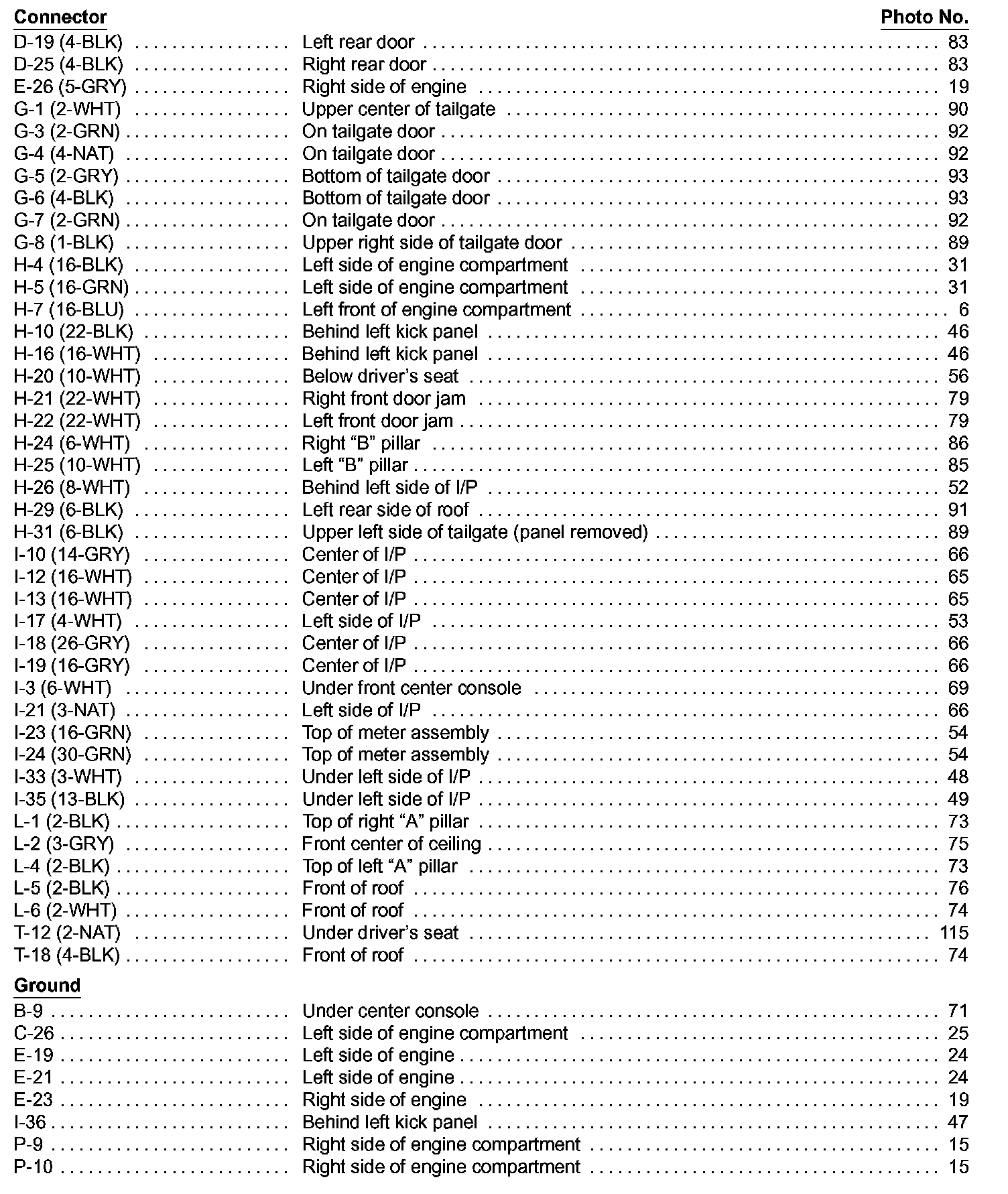

Ground Distribution Component Location Index 1:

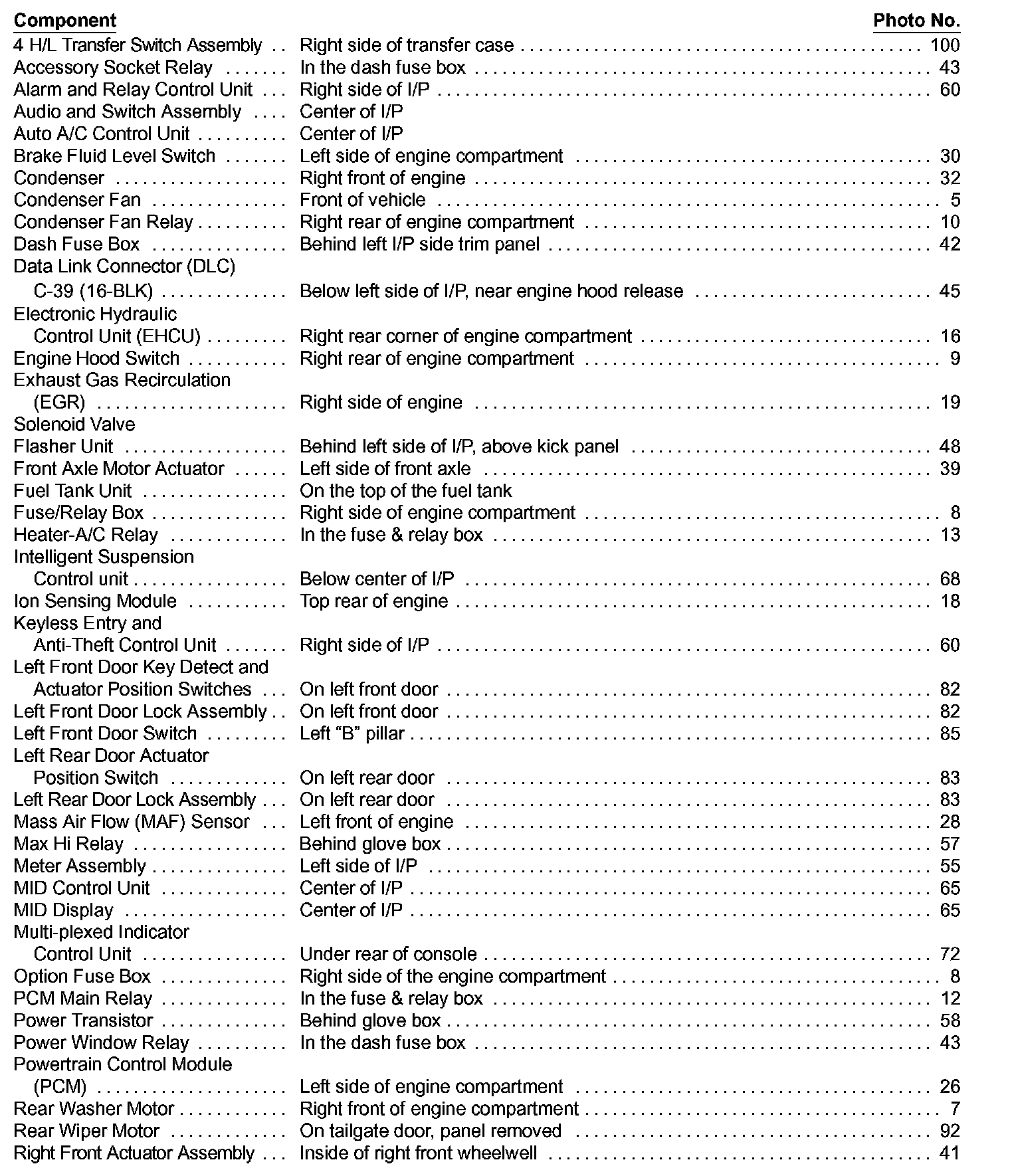

Ground Distribution Component Location Index 2:

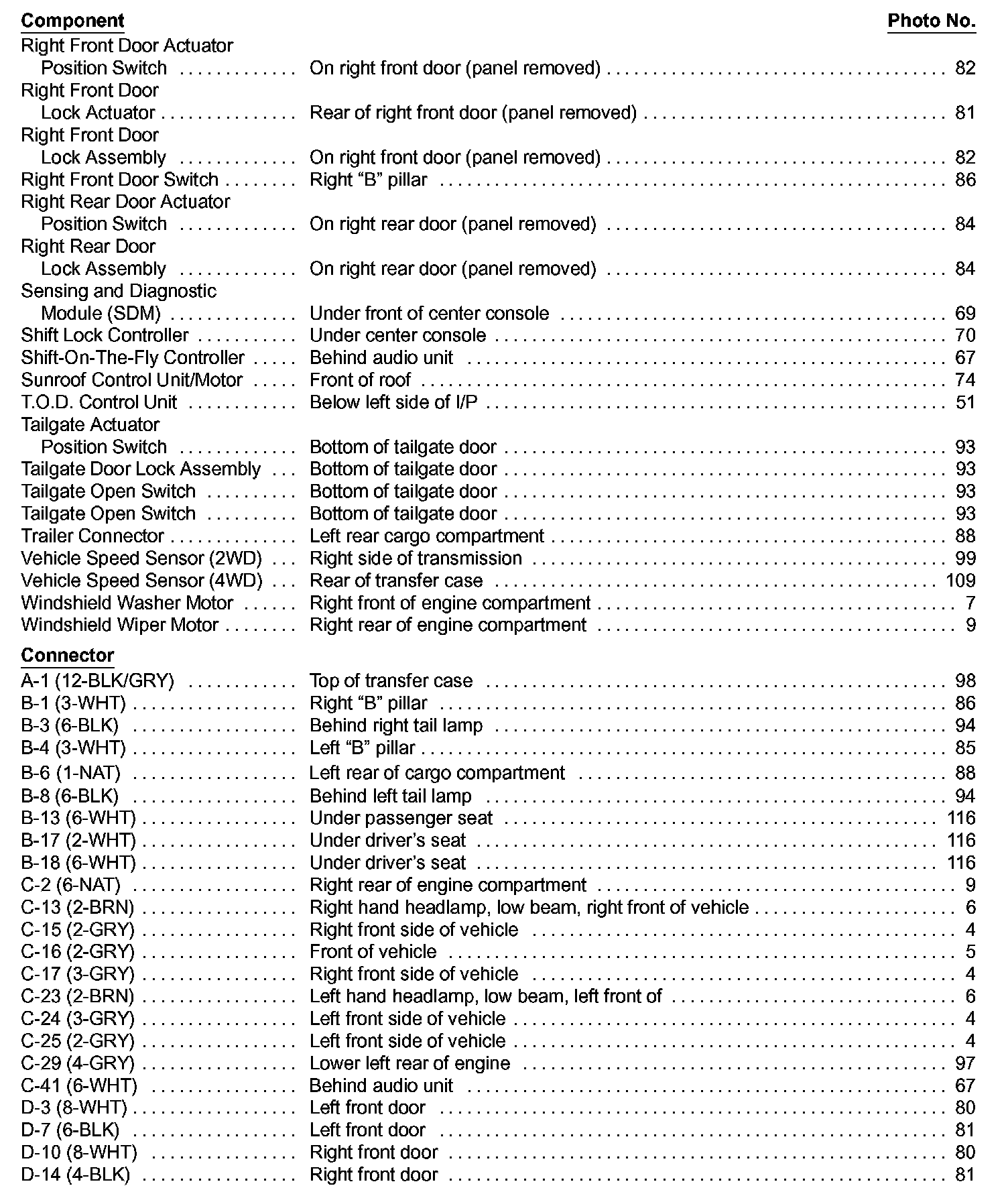

Ground Distribution Component Location Index 3:
