Malfunction Indicator Lamp: Testing and Inspection

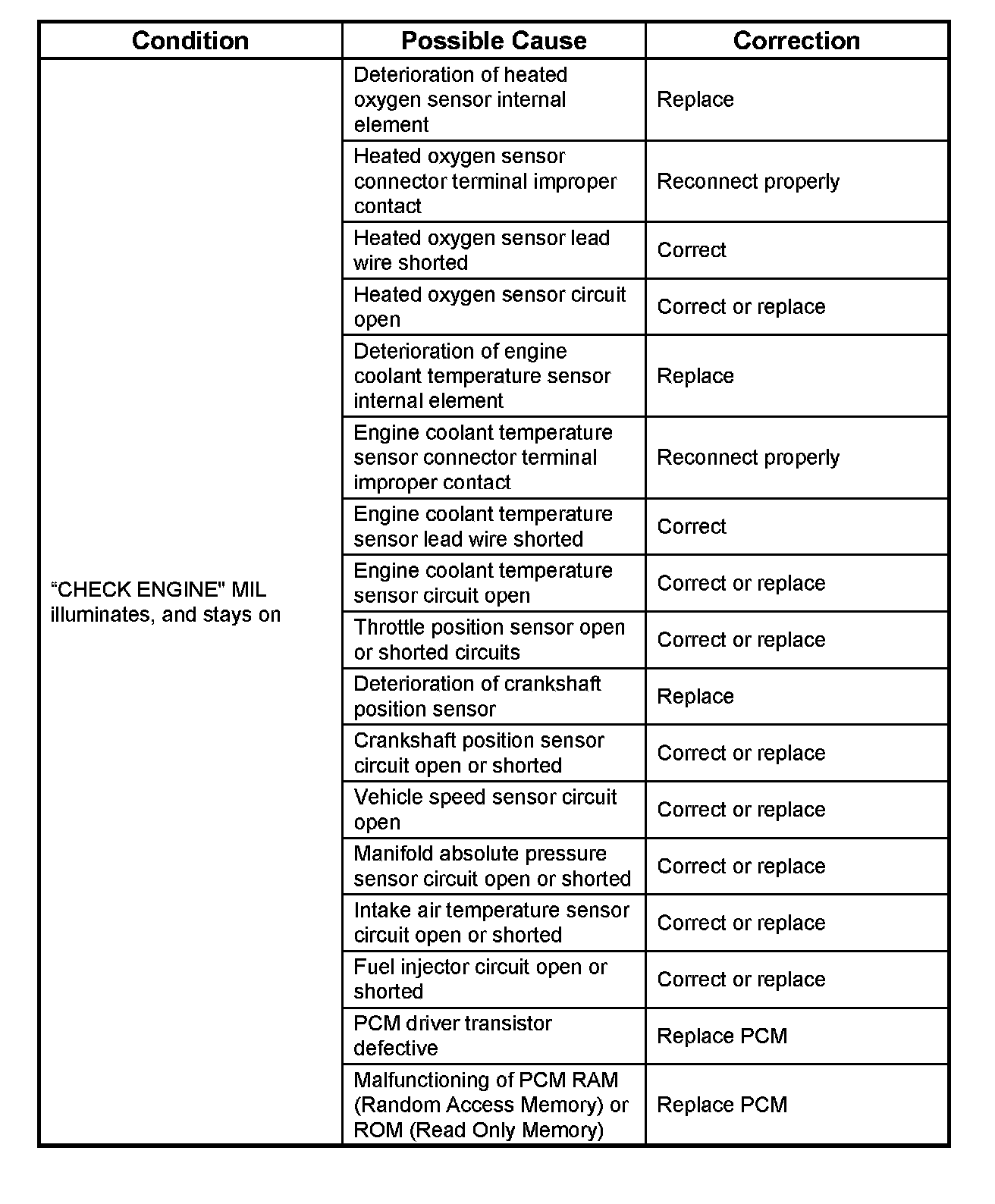

Malfunction Indicator Lamp








The instrument panel "CHECK ENGINE" Malfunction Indicator Lamp (MIL) illuminates by self diagnostic system when the system checks the starting of engine, or senses malfunctions.
