Oxygen Sensor: Locations

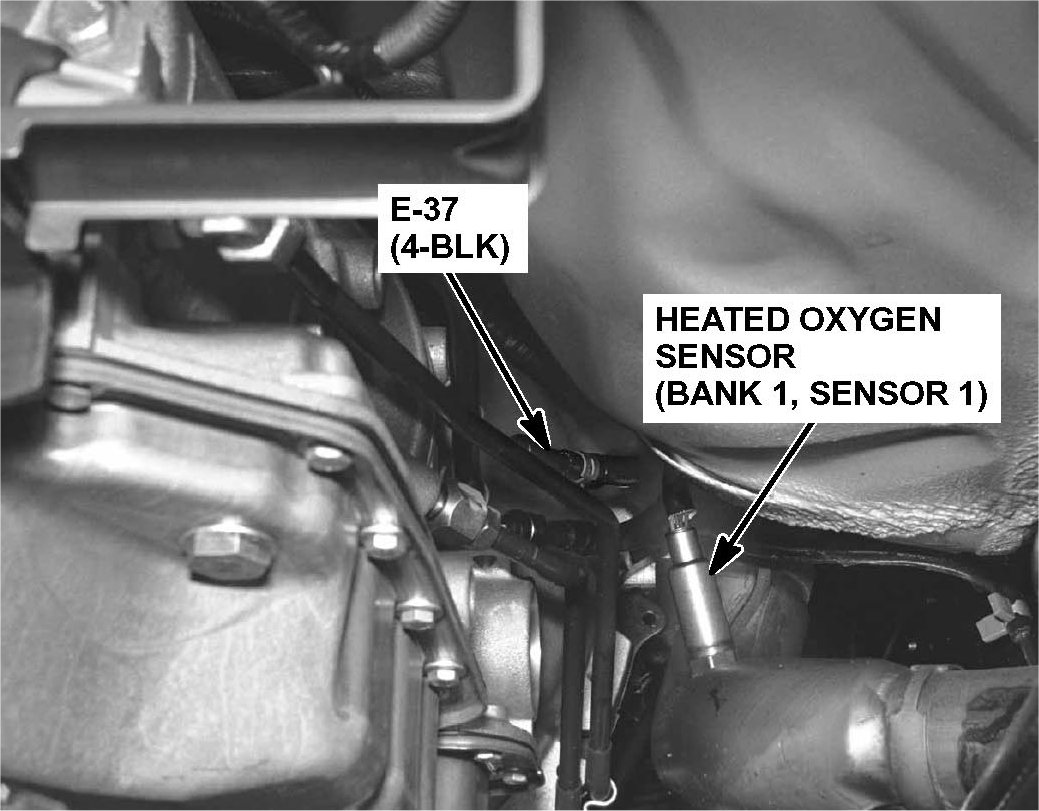

103. Left Front Exhaust Downpipe:



104. Rear of Left Catalytic Converter:



105. Right Front Exhaust Downpipe:

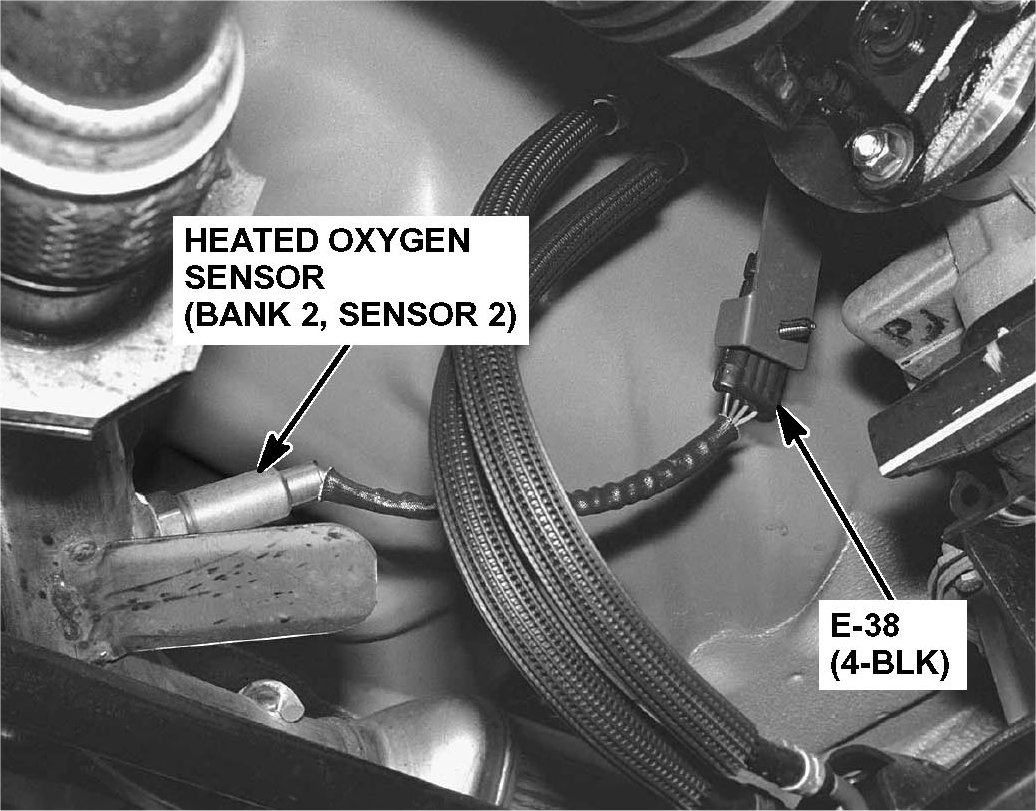

106. Rear of Right Catalytic Converter:
