Checking Transmission Fluid Level and Condition
>>
Fluid Condition
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fluid Condition

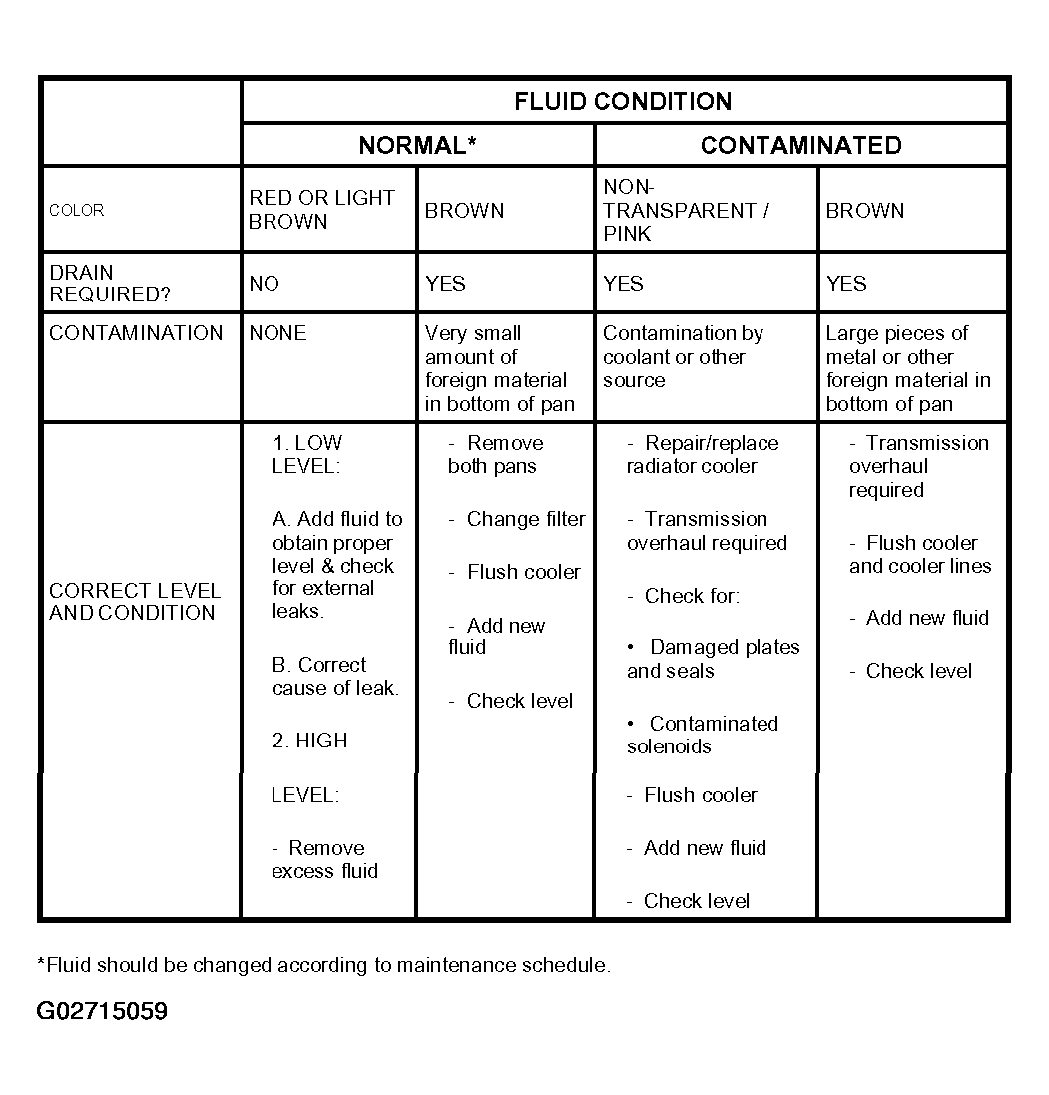

Fig 1: Fluid Condition Reference Chart
Courtesy of ISUZU MOTOR CO.
