"Normal mode": Notes

Upshift

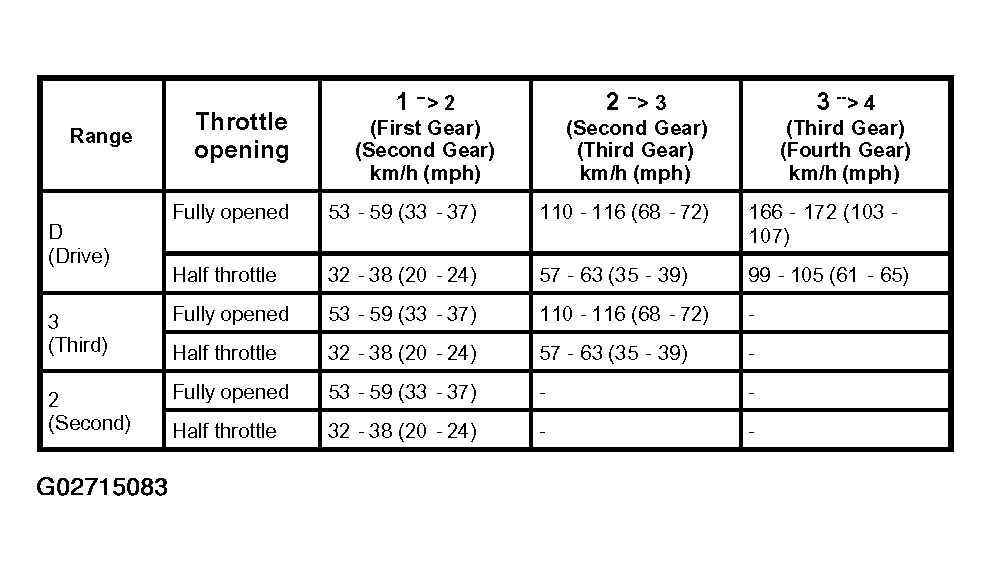

Fig 1: "Normal Mode" - Upshift Chart

G02715083

Courtesy of ISUZU MOTOR CO.
