Trouble Code: 24 / P1733 - Check Flow 3

TROUBLE CODE: 24 / P1733 - VOLTAGE OF REAR SPEED SENSOR FAULTY

Check Flow	Trouble Code	Phenomenon	Standard
3	24 (P1733)	Rear speed sensor signal open or GND short, speed sensor COM open.	0.2V > Sensor voltage.

NOTE: The following procedure shows the case that the front or rear sensor common grounding line is broken.

Fig 1: Trouble Code P1733, TOD Control Unit Circuit Diagram - Rear Speed Sensor Signal

Courtesy of ISUZU MOTOR CO.

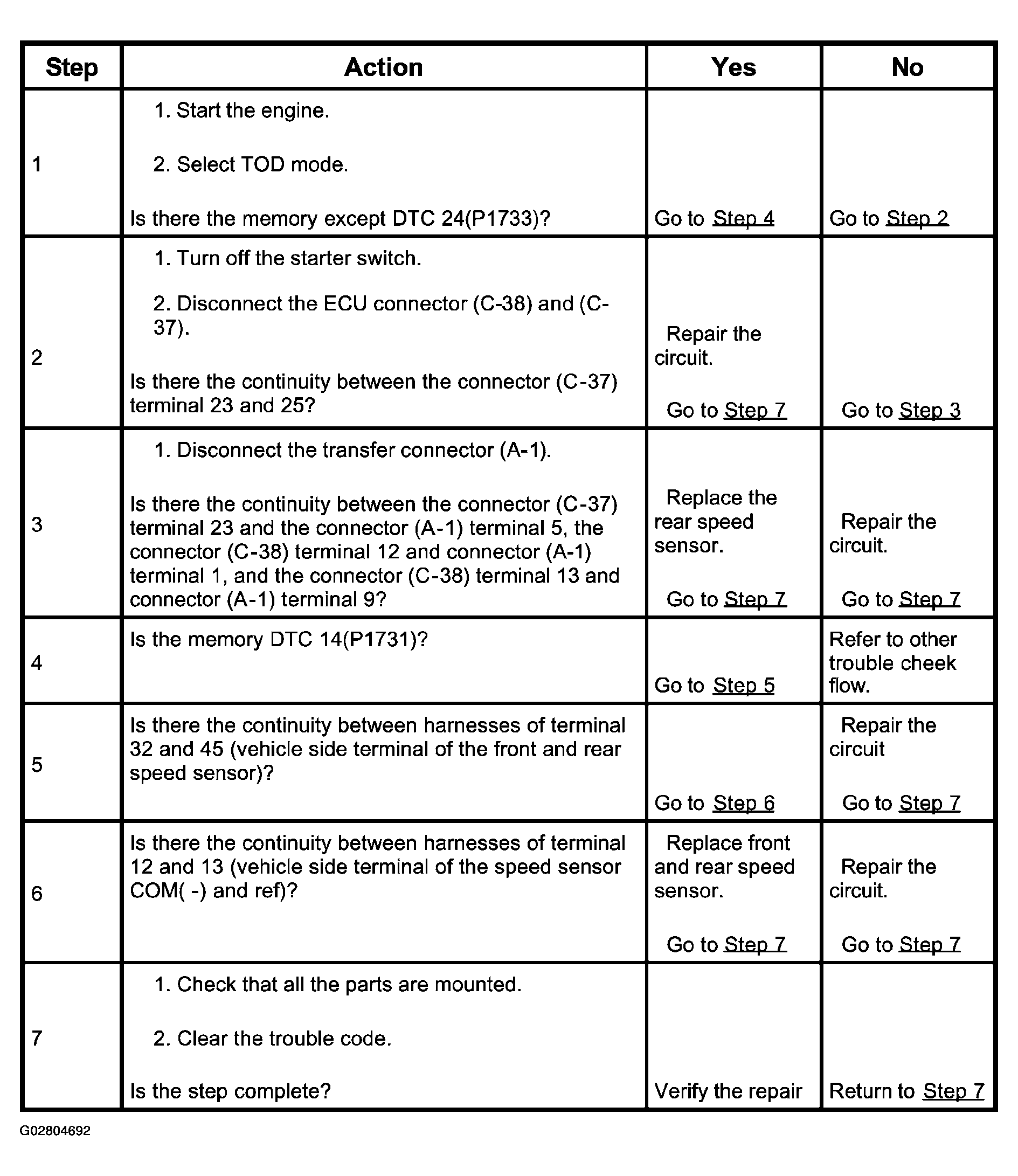

Fig 2: Trouble Code P1733, Diagnostic Procedure Chart - Rear Speed Sensor Signal Faulty

Courtesy of ISUZU MOTOR CO.
