B8003: Transponder Key Problem

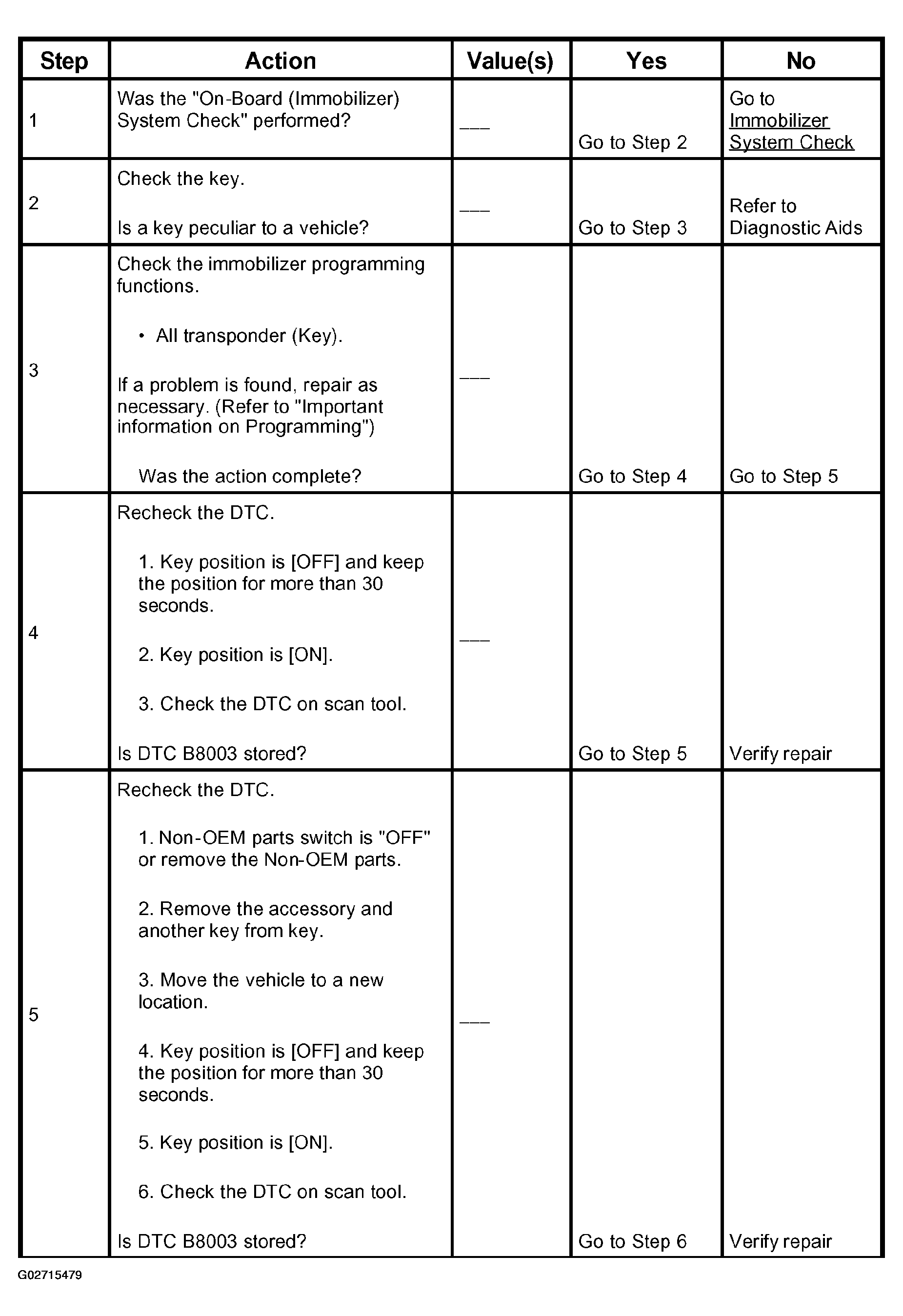

Fig 1: B8003 - Transponder Key Problem Diagnosis Procedure (1 Of 2)
Courtesy of ISUZU MOTOR CO.

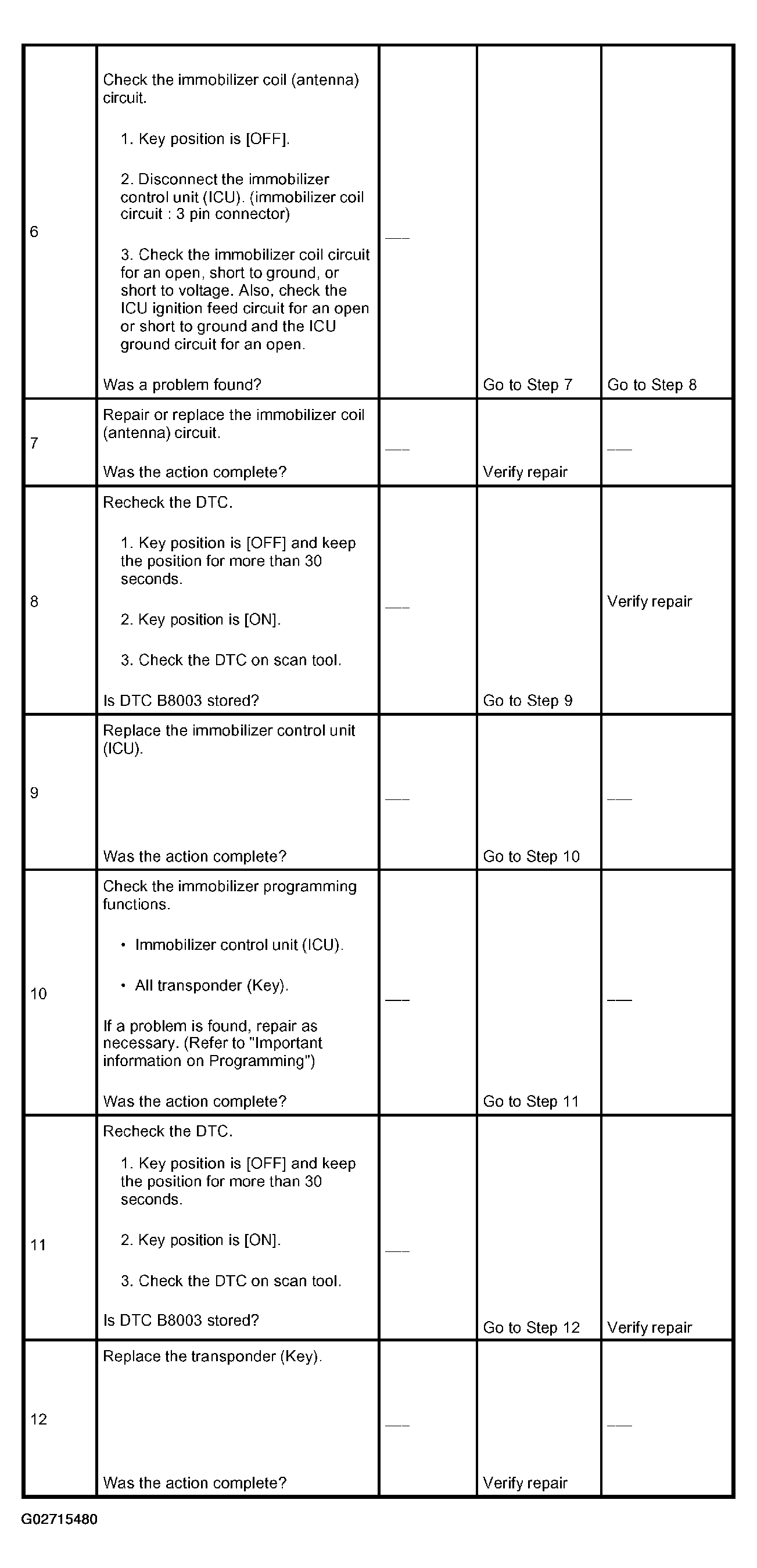

Fig 2: Transponder Key Problem Diagnosis Procedure (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
