Diagnostic Procedure

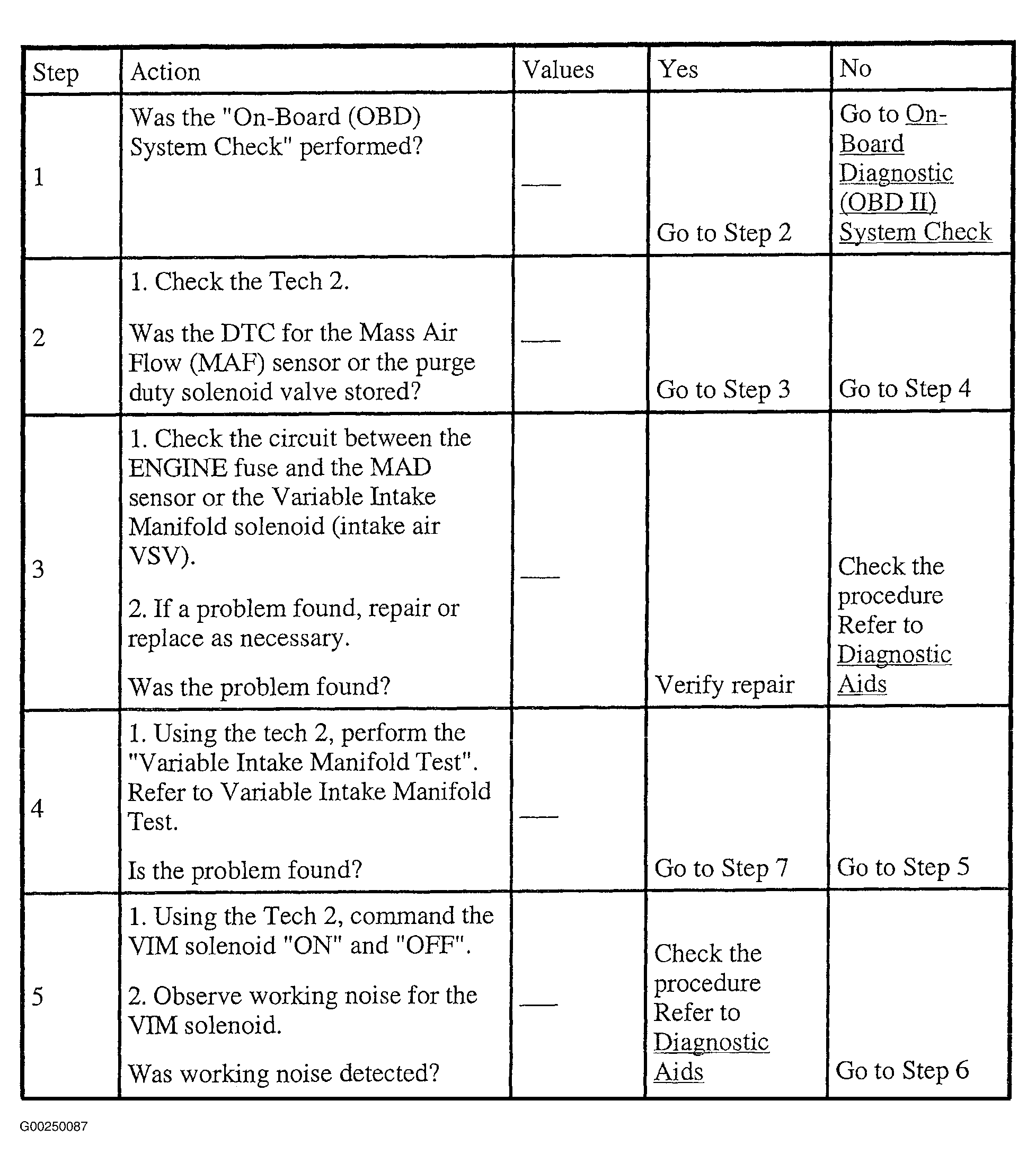

Fig 1: DTC P0660: Variable Intake Manifold Solenoid - Open Circuit (Steps 1-5)
G00250087Courtesy of ISUZU MOTOR CO.

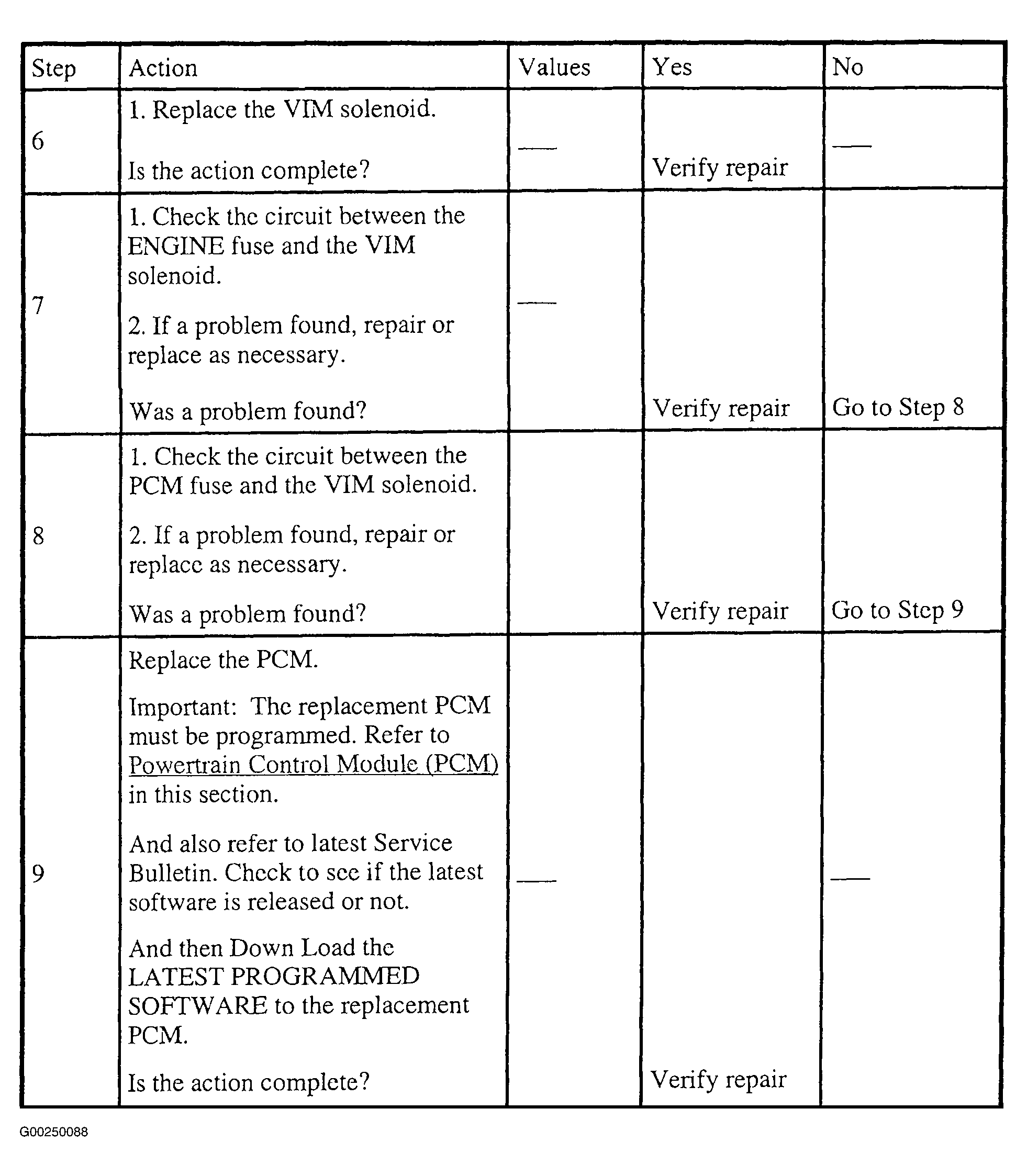

Fig 2: DTC P0660: Variable Intake Manifold Solenoid - Open Circuit (Steps 6-9)
G00250088Courtesy of ISUZU MOTOR CO.
