Turn Signal Switch

This diagnosis covers mechanical problems only. Refer to TURN SIGNAL LIGHT SWITCH (COMBINATION SWITCH) .

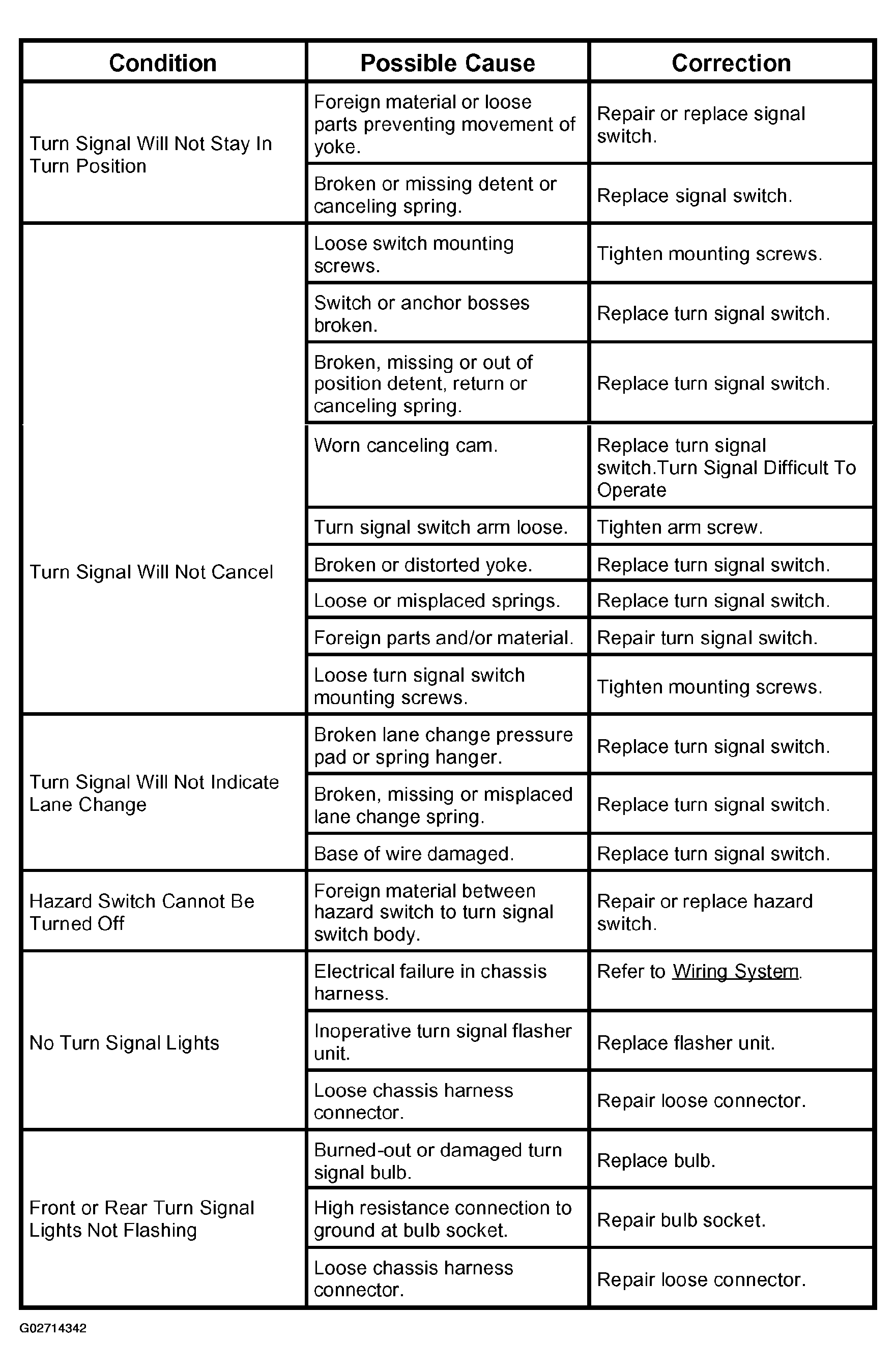

Fig 1: Turn Signal Switch Symptom Diagnostic Chart
G02714342Courtesy of ISUZU MOTOR CO.
