Caster Adjustment

The caster angle can be adjusted by means of the caster shims (1) installed between the chassis frame (2) and fulcrum pins.

Caster angle: 2 °30' +/- 1°

CAUTION: Left and right side must be equal within 30'.

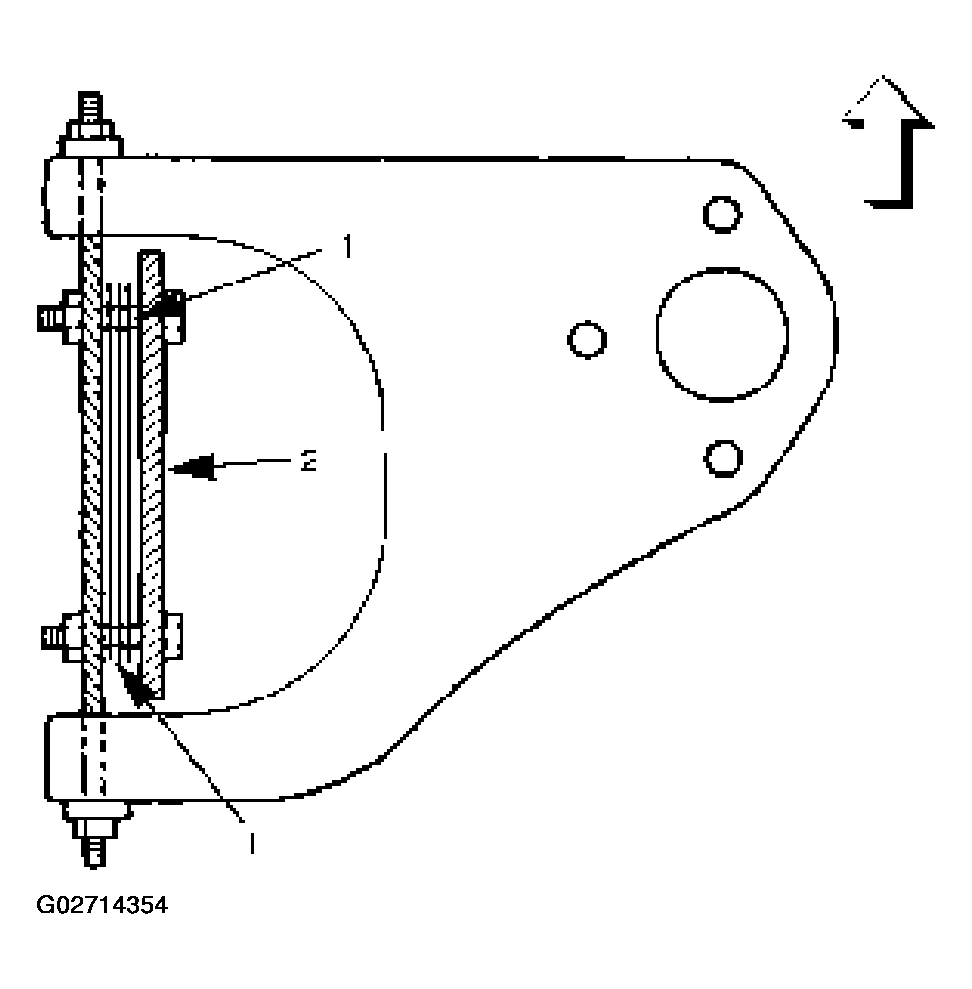

Fig 1: Identifying Caster Shim

Courtesy of ISUZU MOTOR CO.

Fig 2: Adjusting Caster Angle

Courtesy of ISUZU MOTOR CO.

NOTE: Difference of the caster shim front/rear thickness should be 3.6 mm (0.142 in) or less. Overall thickness of caster shim and camber shim should be 10.8 mm (0.425 in) or less.

Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N.m 112 (lb ft)
