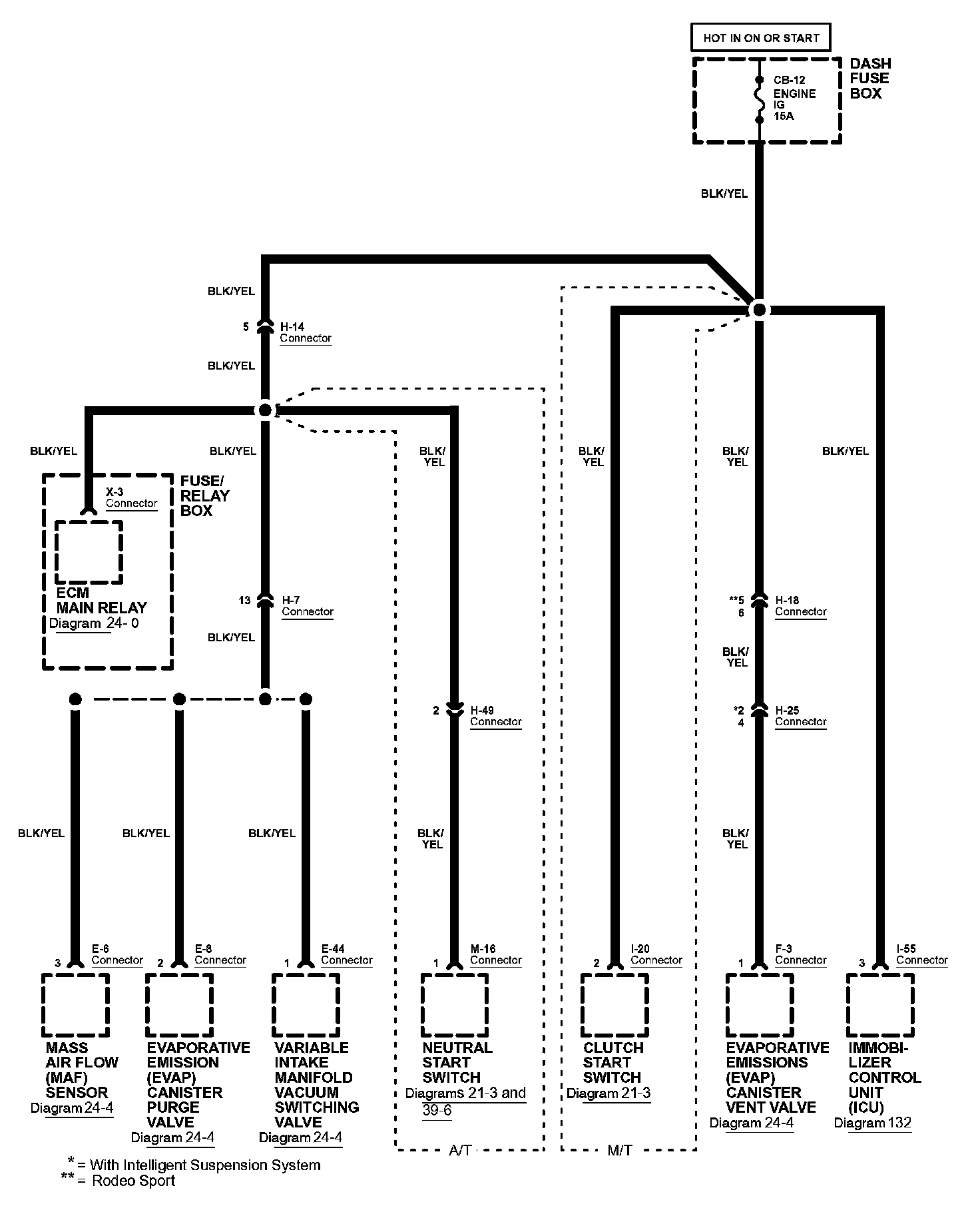

Diagram 11-4

Diagram 11-4:

Next Diagram Diagram 11-5

Previous Diagram Diagram 11-3


Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
