General Diagnosis: Notes

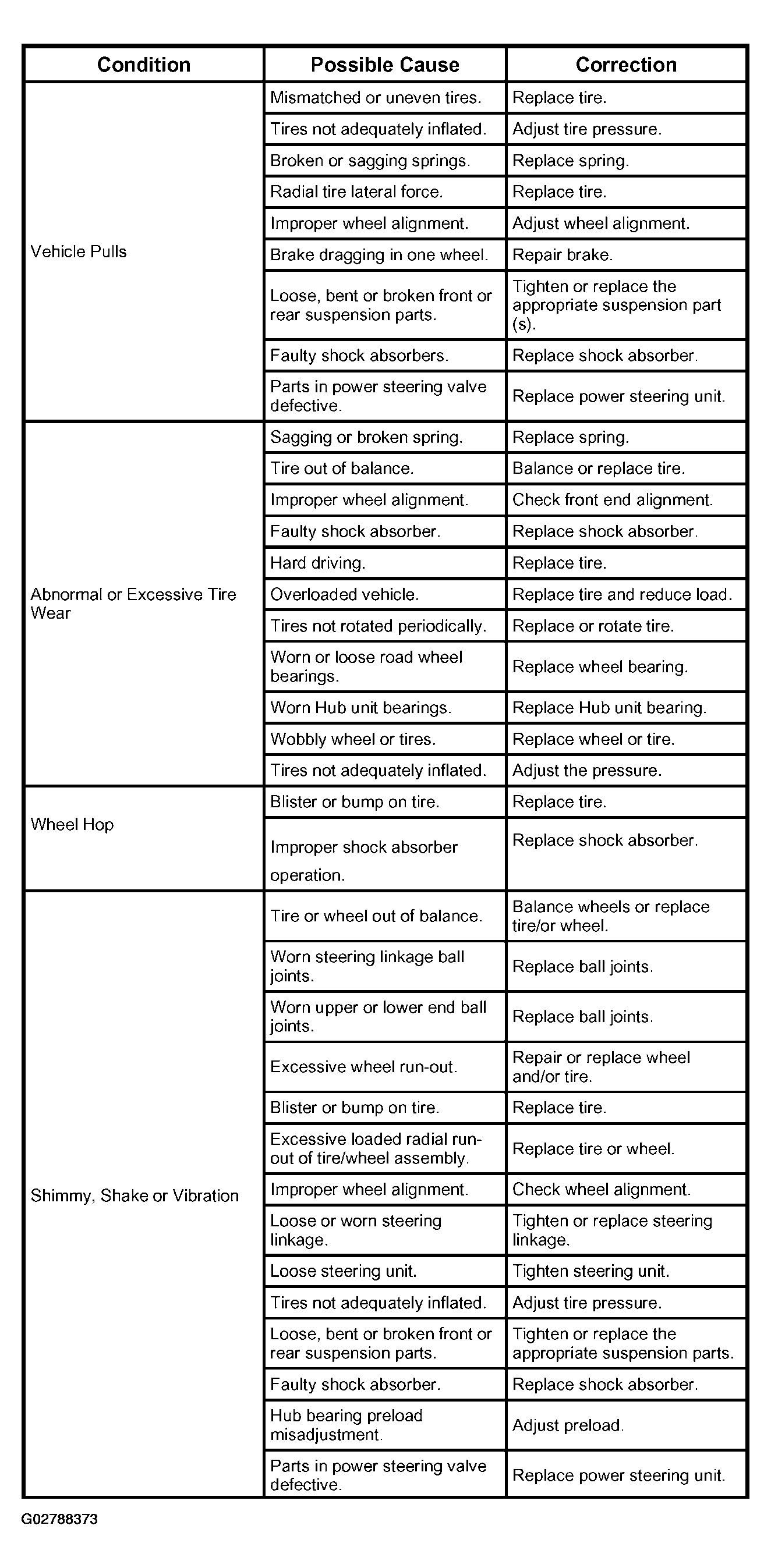

Fig 1: General Diagnosis Chart (1 Of 3)
G02788373Courtesy of ISUZU MOTOR CO.

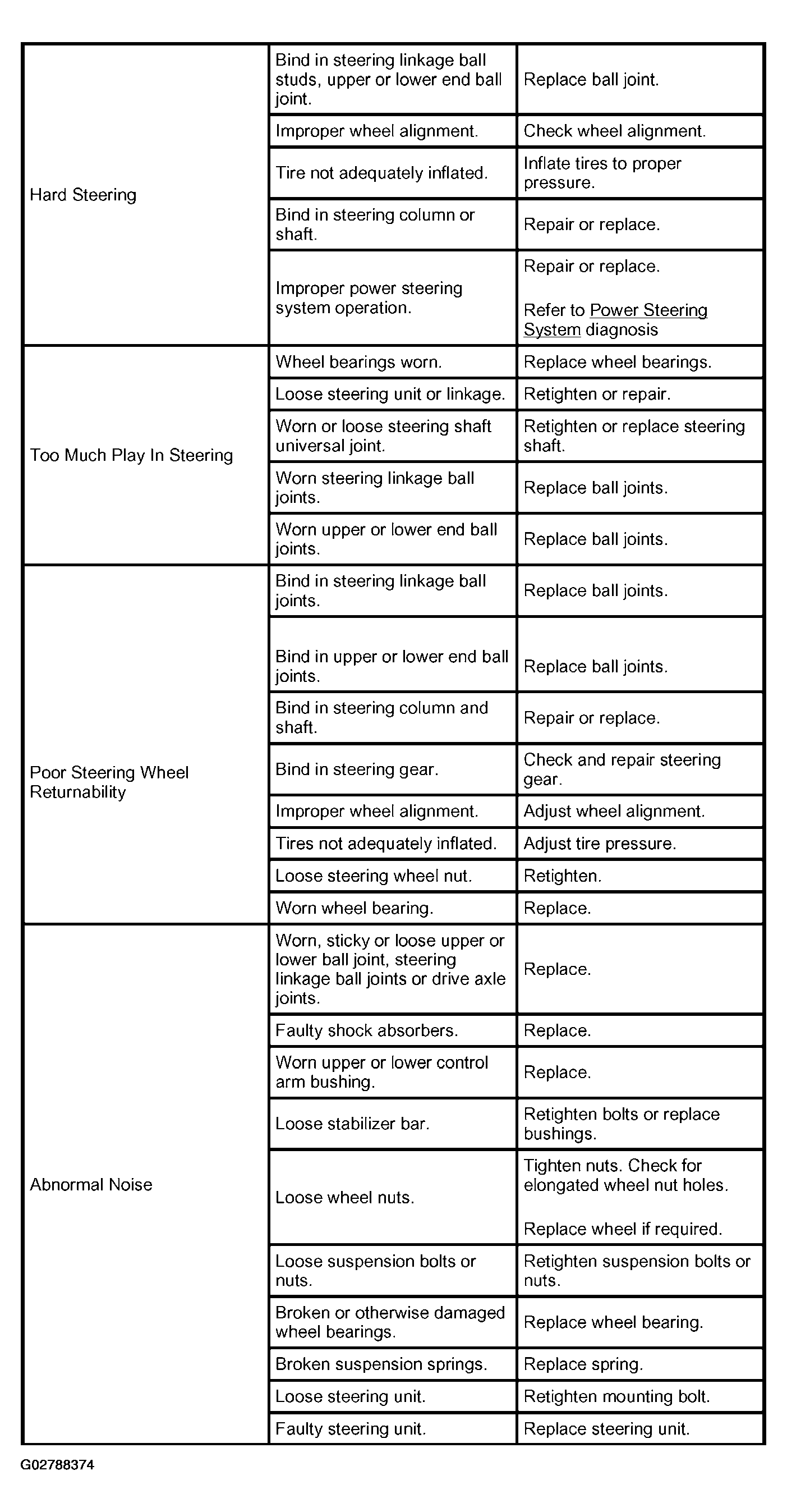

Fig 2: General Diagnosis Chart (2 Of 3)
G02788374Courtesy of ISUZU MOTOR CO.

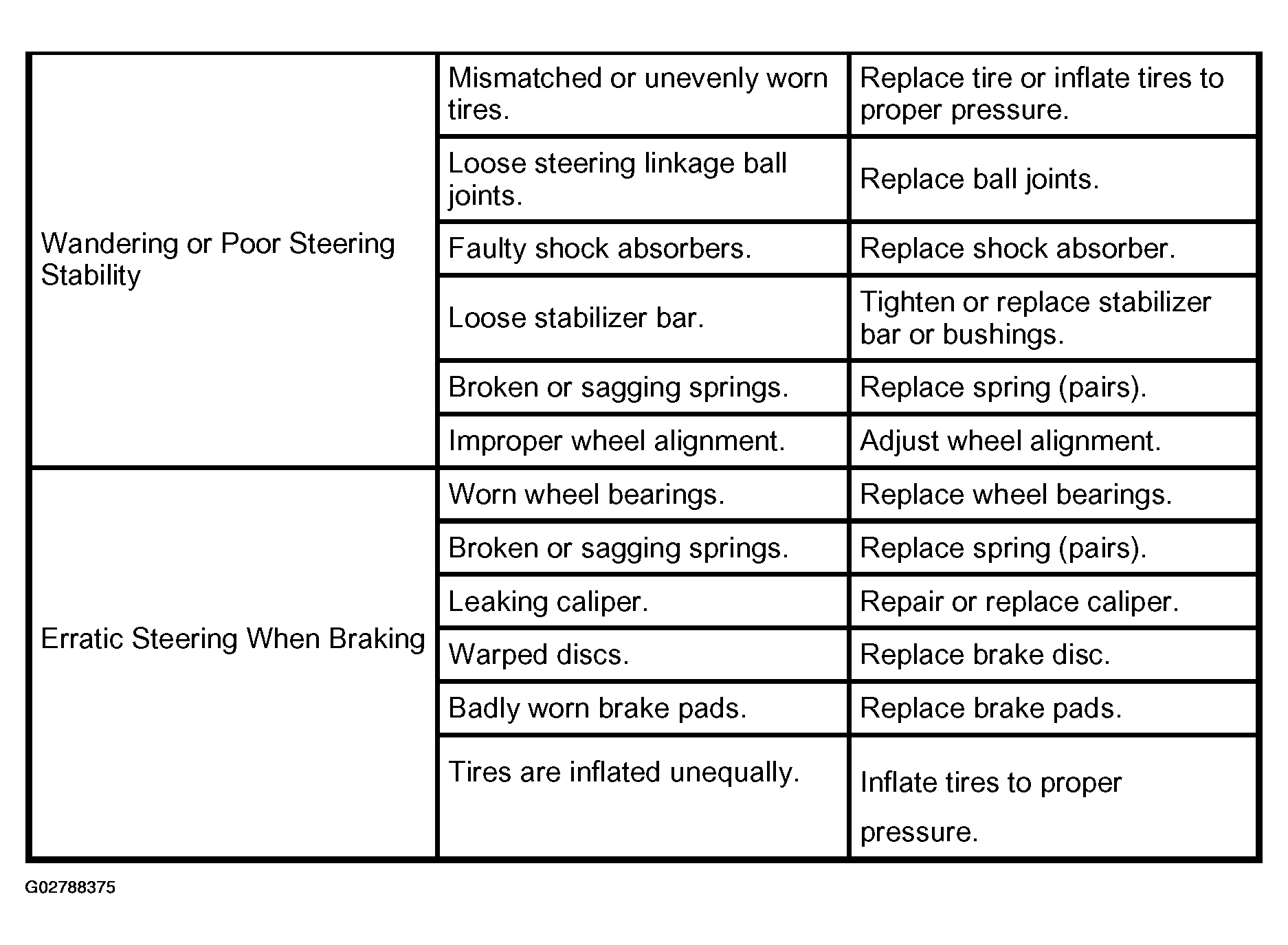

Fig 3: General Diagnosis Chart (3 Of 3)
G02788375Courtesy of ISUZU MOTOR CO.
