Selector Lever: Removal

Disconnect battery ground cable.
Set ignition Key in "LOCK" position and selector lever in "P" position.
Remove transfer control lever knob (4X4).
Remove lower cluster assembly.

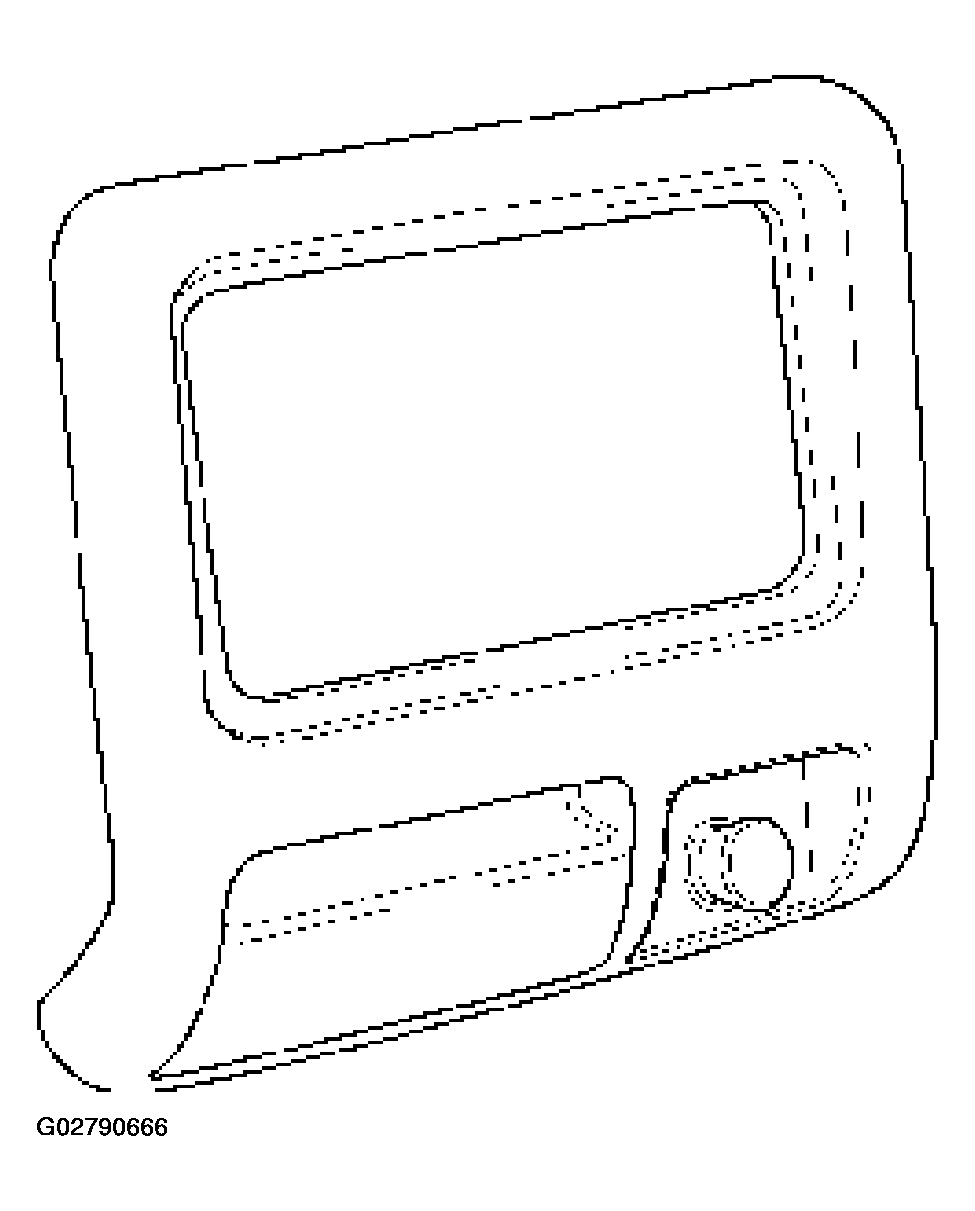

Fig 1: Identifying Lower Cluster Assembly
Courtesy of ISUZU MOTOR CO.
Remove rear console.

Fig 2: Identifying Rear Console
Courtesy of ISUZU MOTOR CO.
Remove center console.

Fig 3: Identifying Center Console
Courtesy of ISUZU MOTOR CO.
Remove selector lever knob and cover.

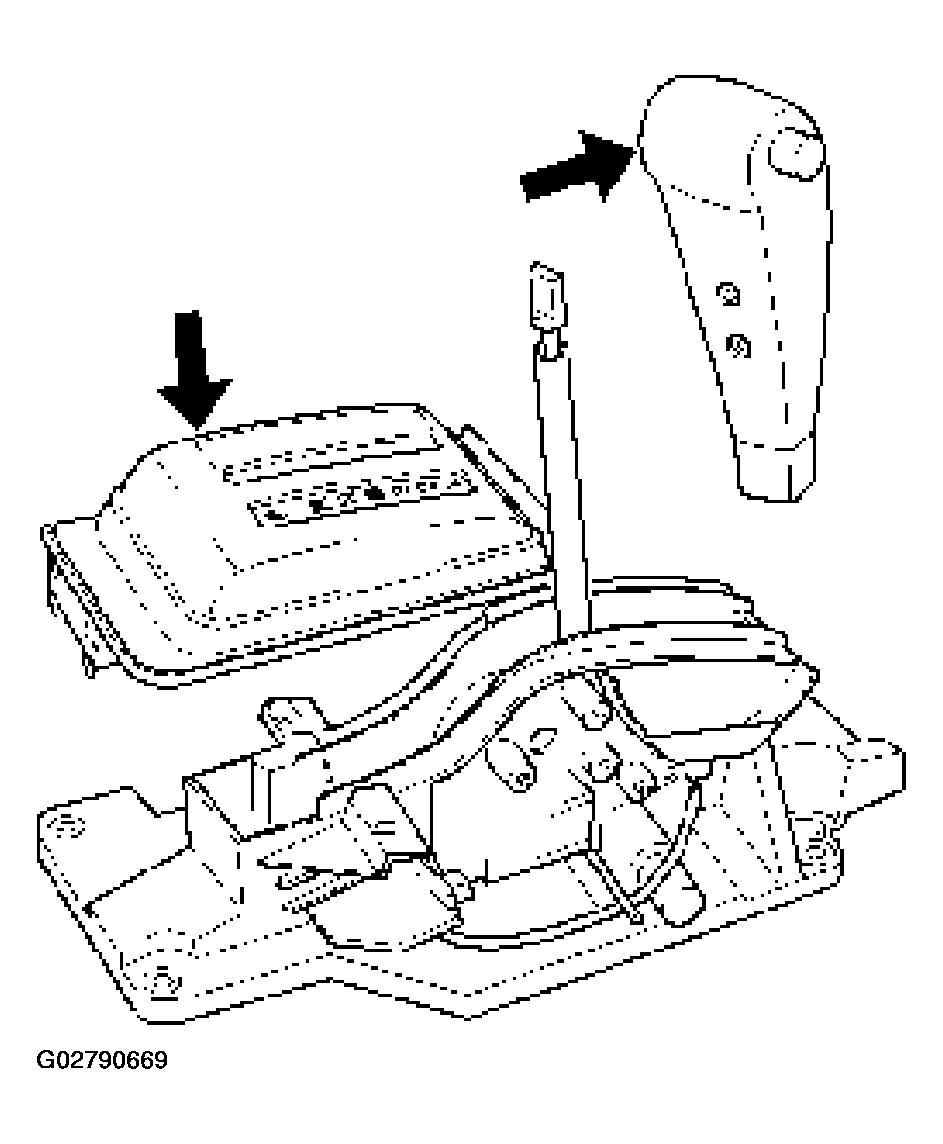

Fig 4: Removing Selector Lever Knob & Cover
Courtesy of ISUZU MOTOR CO.
Disconnect select cable.
- Refer to SELECT CABLE .
Disconnect shift lock cable.
- Refer to SHIFT LOCK CABLE .
- Disconnect harness connector.
- Remove selector lever subassembly.

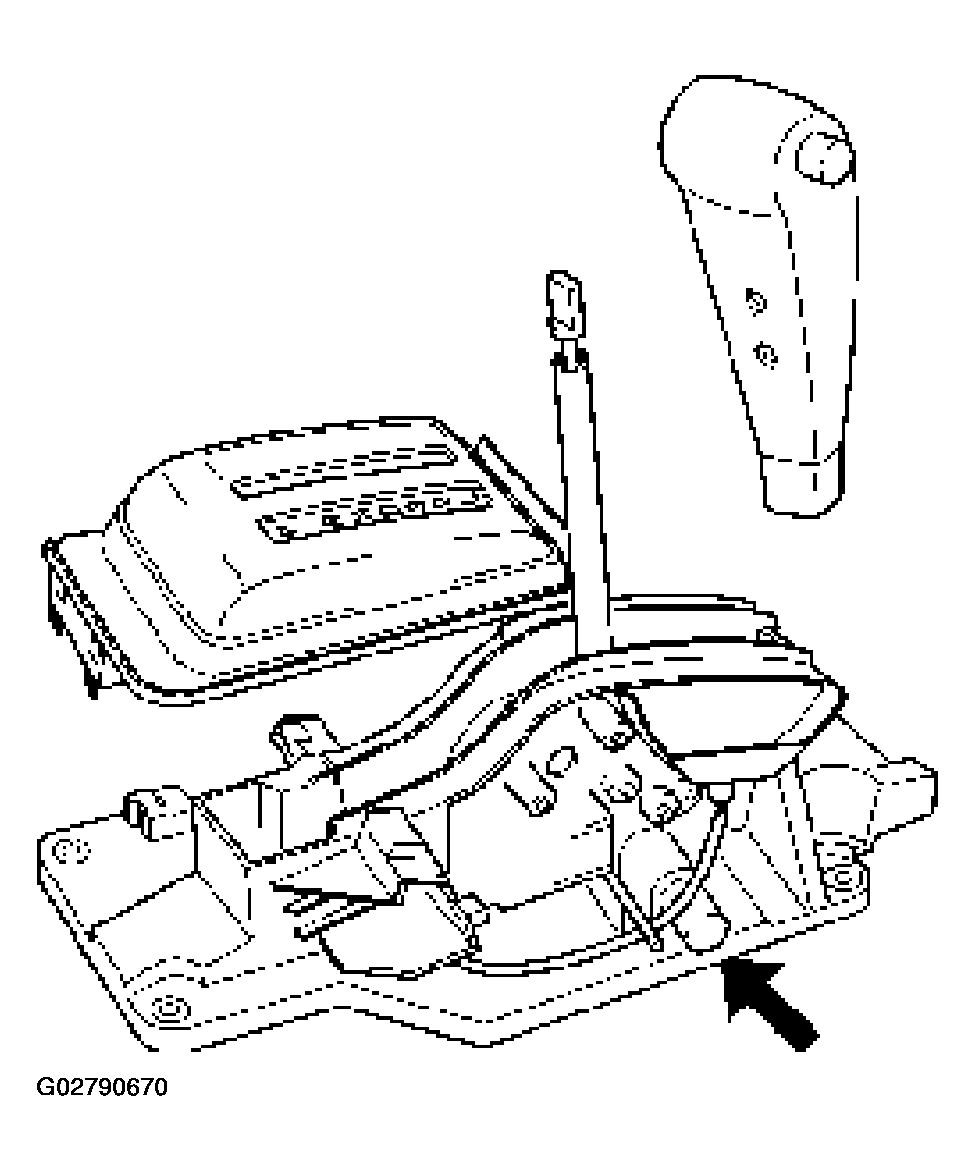

  Fig 5: Disconnecting Shift Lock Cable
  Courtesy of ISUZU MOTOR CO.
