Lower Control Arm and Associated Part

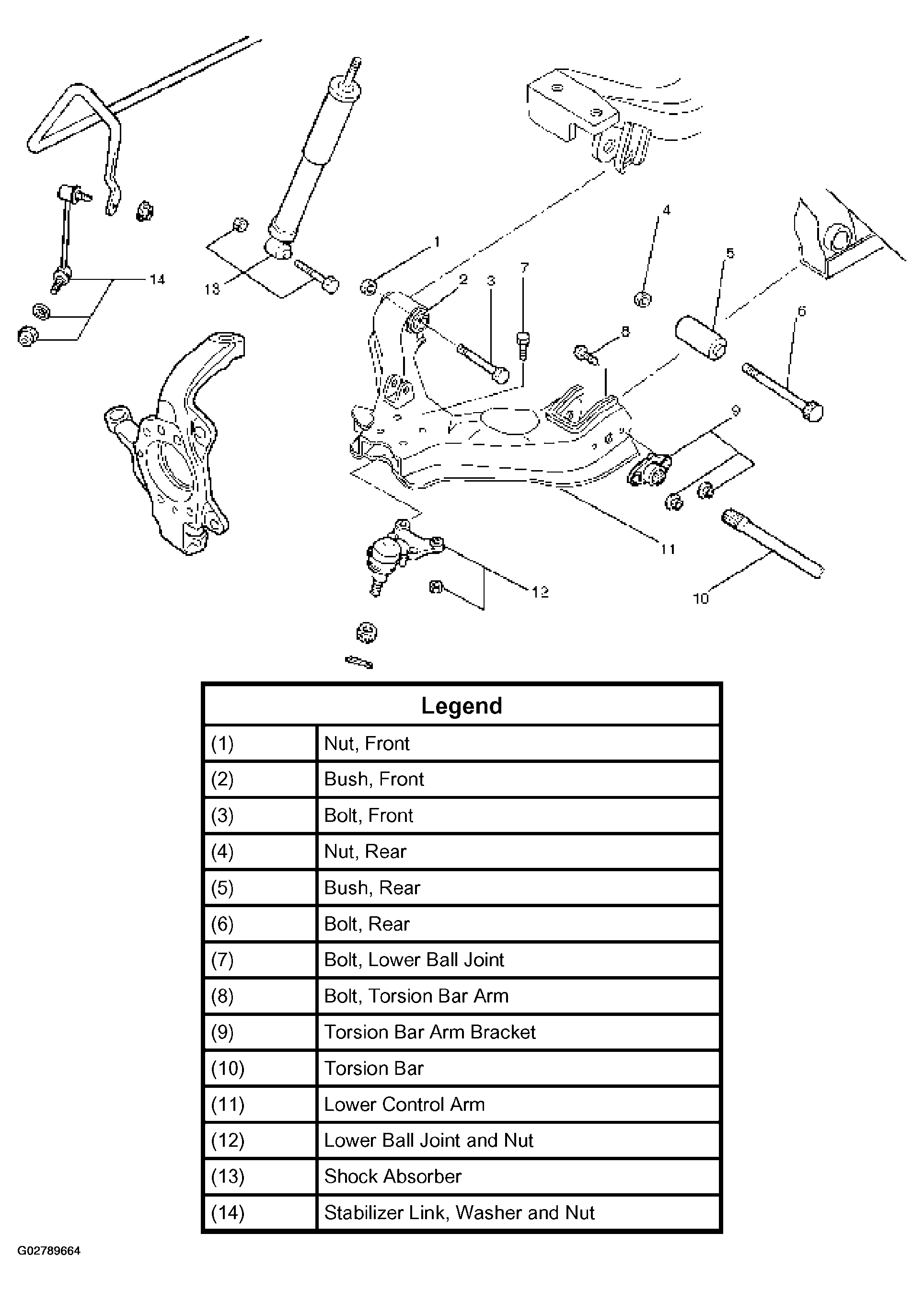

Fig 1: Identifying Lower Control Arm & Associated Part

G02789664

Courtesy of ISUZU MOTOR CO.
