Power and Grounding Component Views

Fig 1: Fuse Block-Underhood Component View
GM750749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood

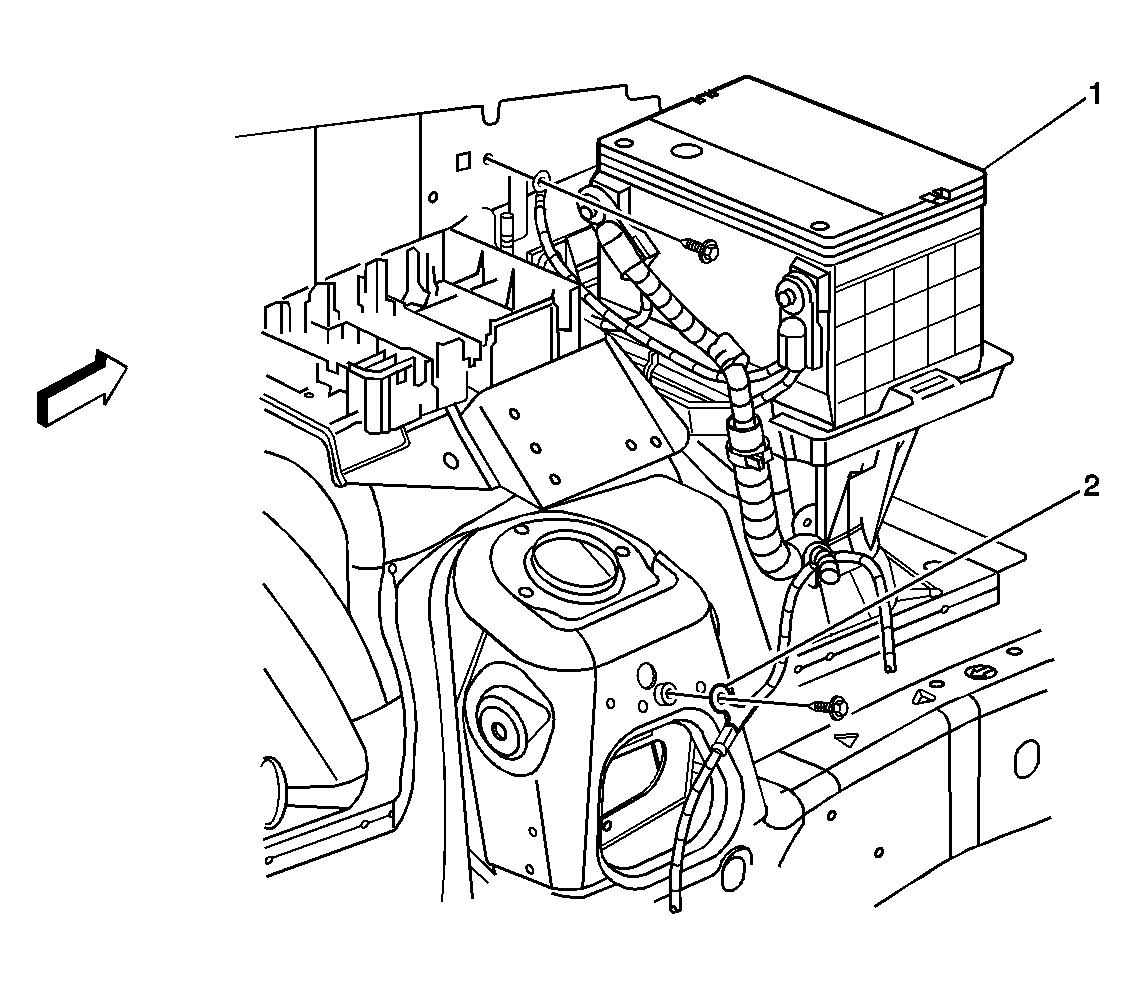

Fig 2: Battery, G106 Component View
GM750750Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 G106
Fig 3: Underhood Grounds-Left, G102, G104, G105 Component View
GM750751Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G105
3 G102
Fig 4: Underhood Ground-Right, G103 Component View
GM750753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G103
Fig 5: Engine Block Grounds G107, G108, G109, G110 Component View (Six Cylinder Engine, 4.2L)
GM750754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G108
2 G109
3 G110
4 G107
Fig 6: Engine Ground G108, Lower Left Front Component View (V8 Engine, 5.3L)
GM853156Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G108
2 Engine Harness
3 Engine
Fig 7: Engine Grounds G109, G107, Left Side Component View (V8 Engine, 5.3L)
GM853162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G109
2 Engine Harness
3 G107
Fig 8: Left Side of Engine Component View (5.3L V8 Engine)
GM872285Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G110
2 G108
Fig 9: Ground Splice Pack, SP201 Component View
GM750755Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP201
2 Instrument Panel Harness
Fig 10: Ignition Switch Component View
GM900962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Passlock Sensor
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Steering Column
Fig 11: B-Pillar, Left-G302 Component View
GM750756Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 G302
Fig 12: Fuse Block-Rear Component View
GM750757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Rear
Fig 13: G304 Component View
GM750760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G304
Fig 14: Frame, Left-G305 Component View
GM750762Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G305
Fig 15: G401, G402 Component View
GM826159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Reinforcement
2 Body Harness
3 G401; G402 Similar on Opposite Side
Fig 16: G403 Component View
GM826161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 Frame, Left Rear
Fig 17: Left Rear Body Side Panel Component View
GM825548Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Trim Panel
2 Auxiliary Power Outlet-Rear
Fig 18: Body Left Side G306 Component View
GM825646Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G306, Headliner Harness
2 Body Side Panel-Left
