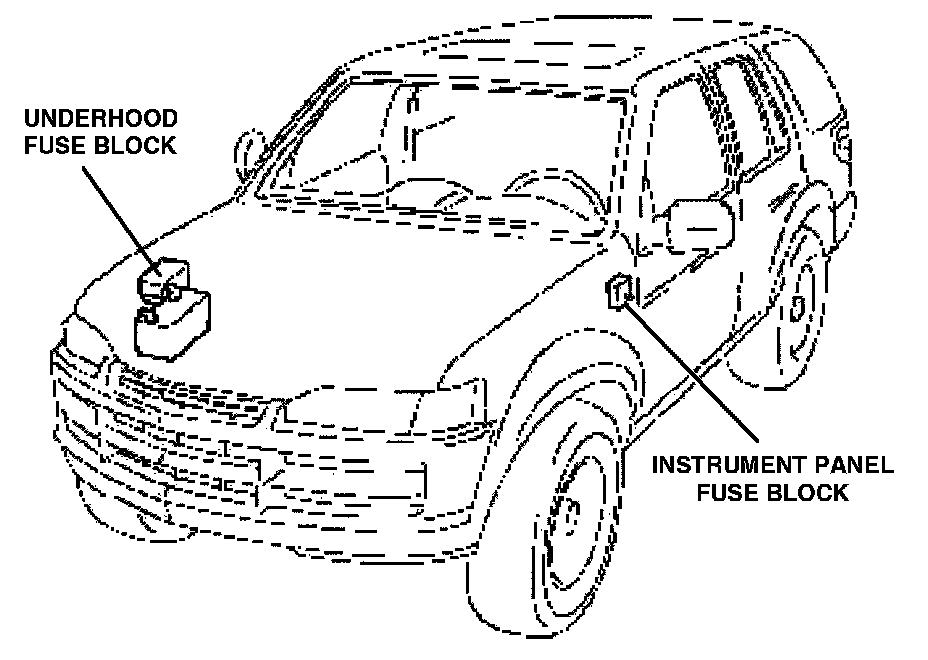

Fuse Block: Locations

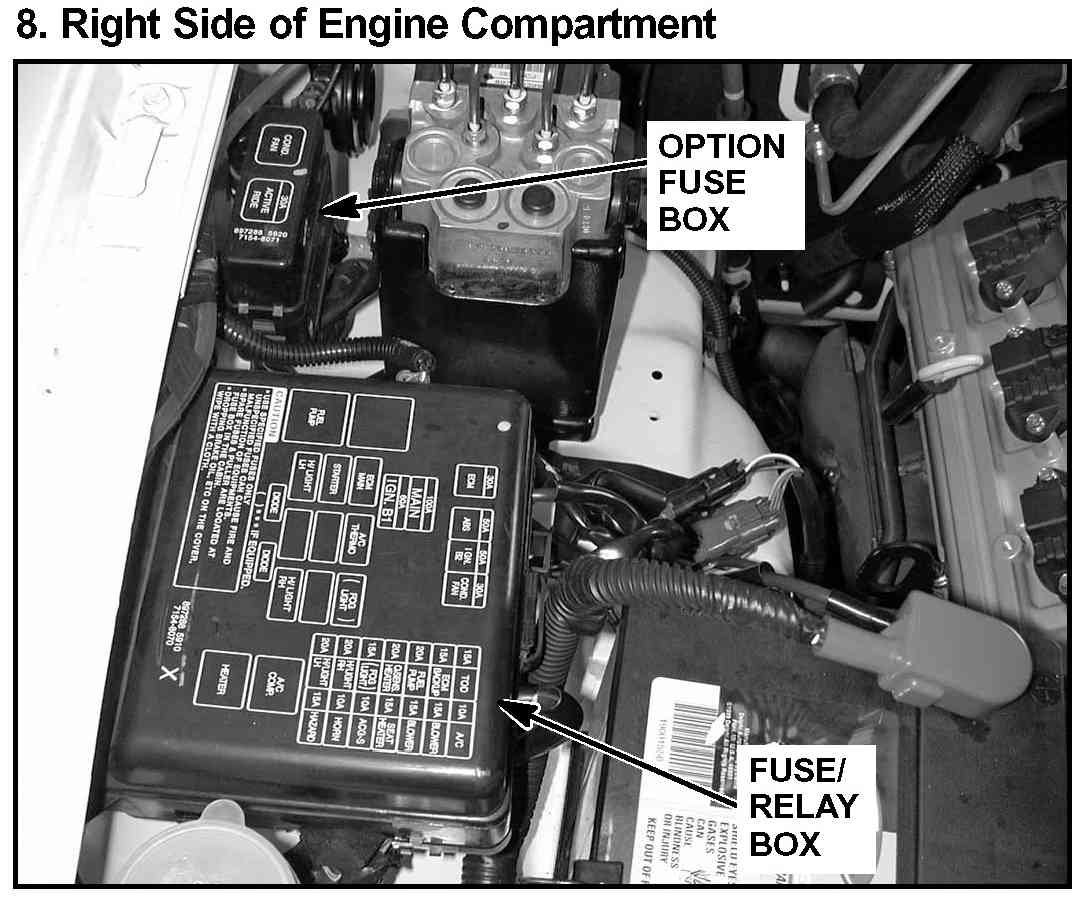

8. Right Side of Engine Compartment:

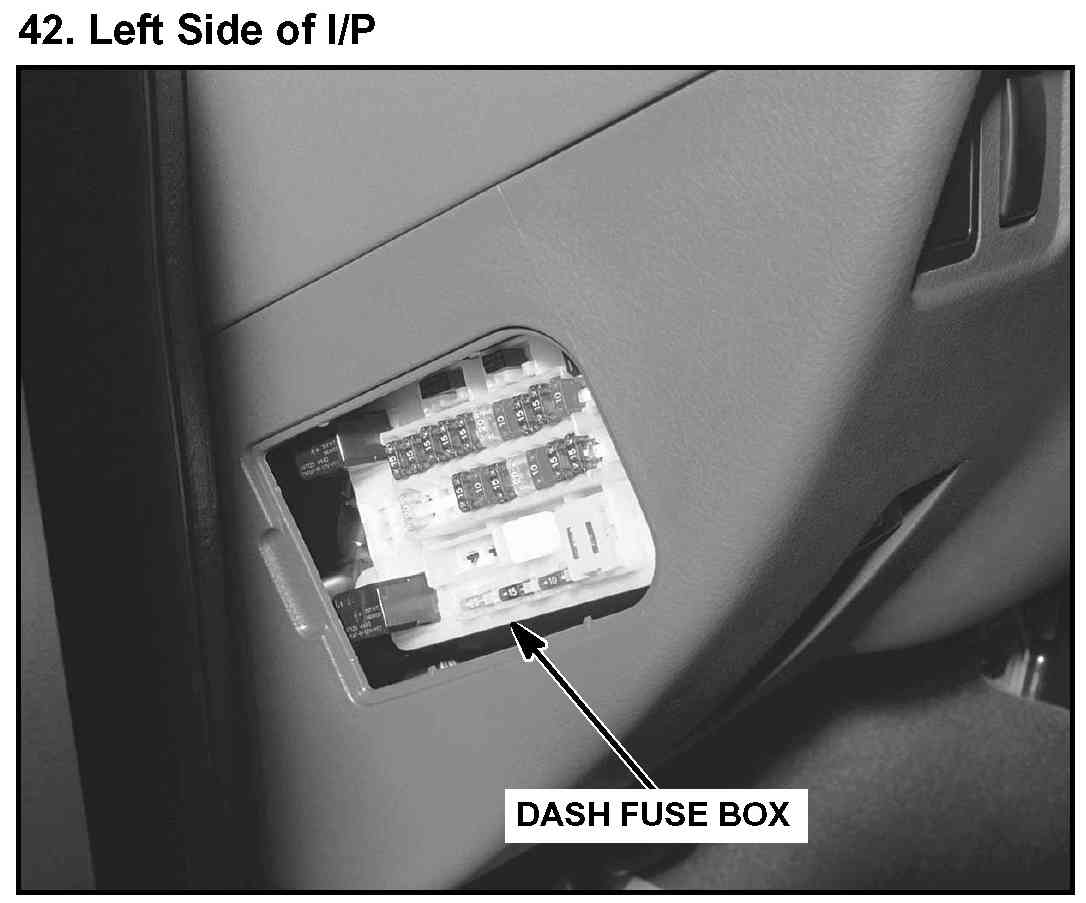

42. Left Side of I/P:

Engine Component Locator:

Engine Component Locator:

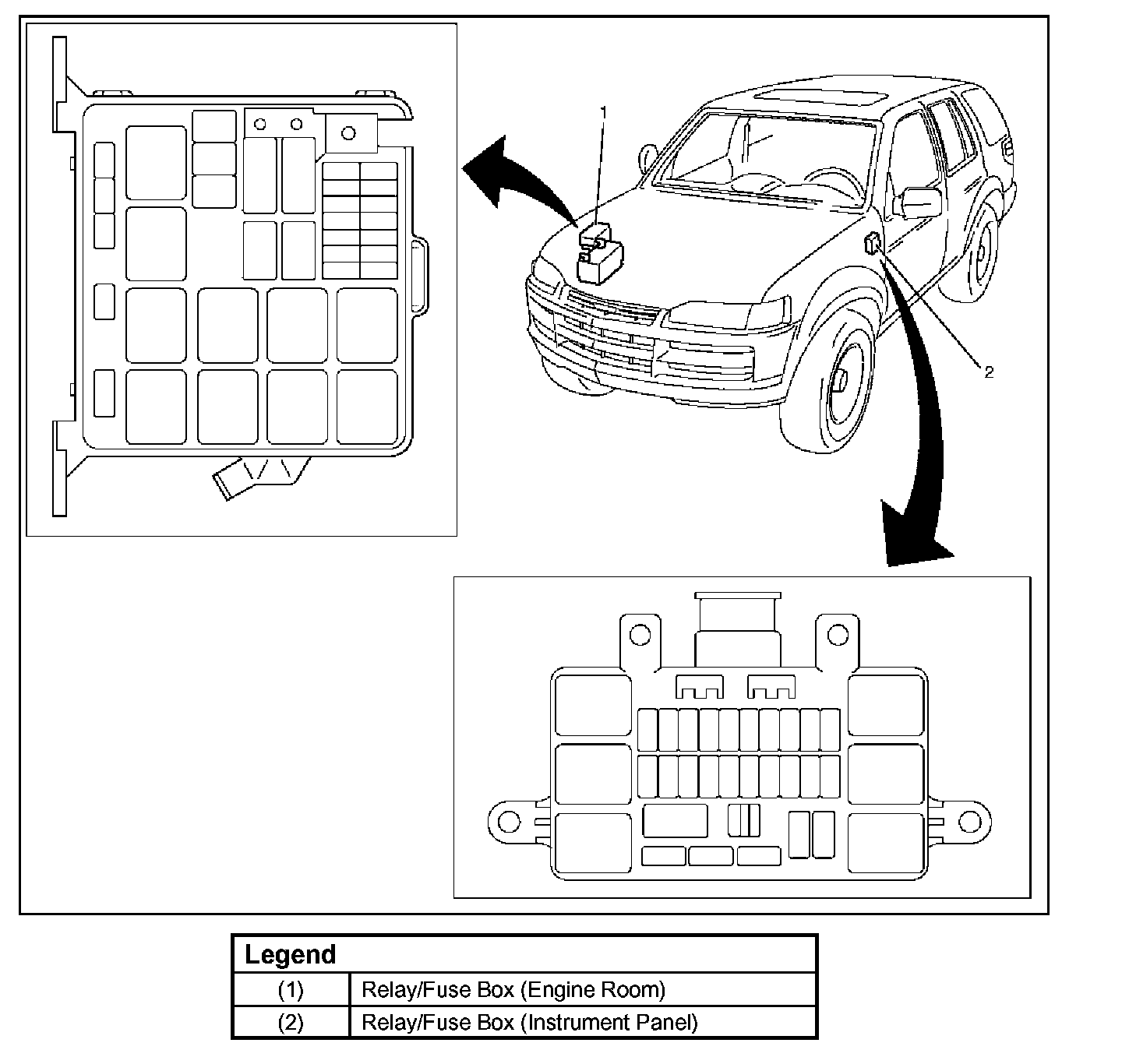

Relay/Fuse Box Location:

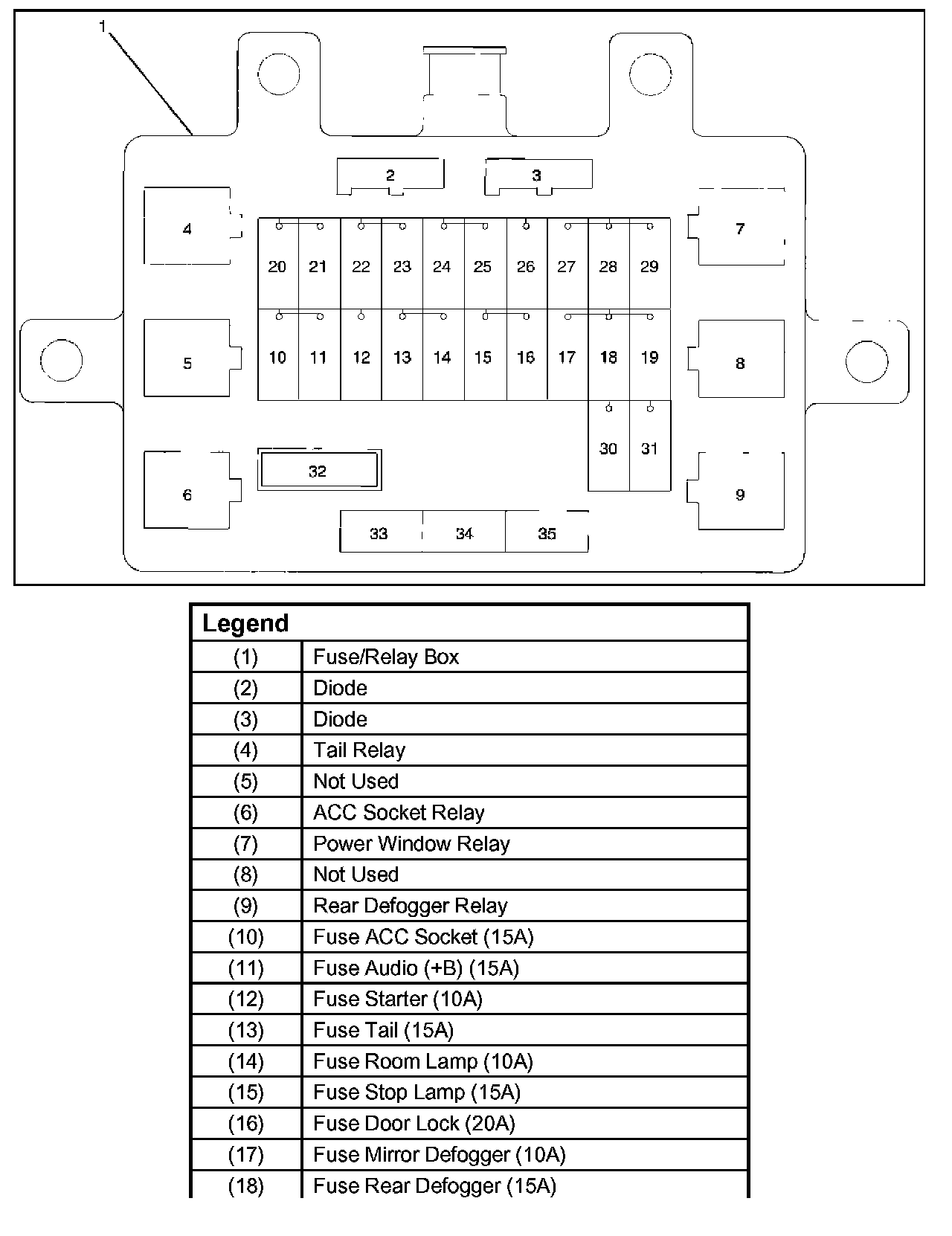

Relay/Fuse Box (Instrument Panel) Part 1:

Relay/Fuse Box (Instrument Panel) Part 2:

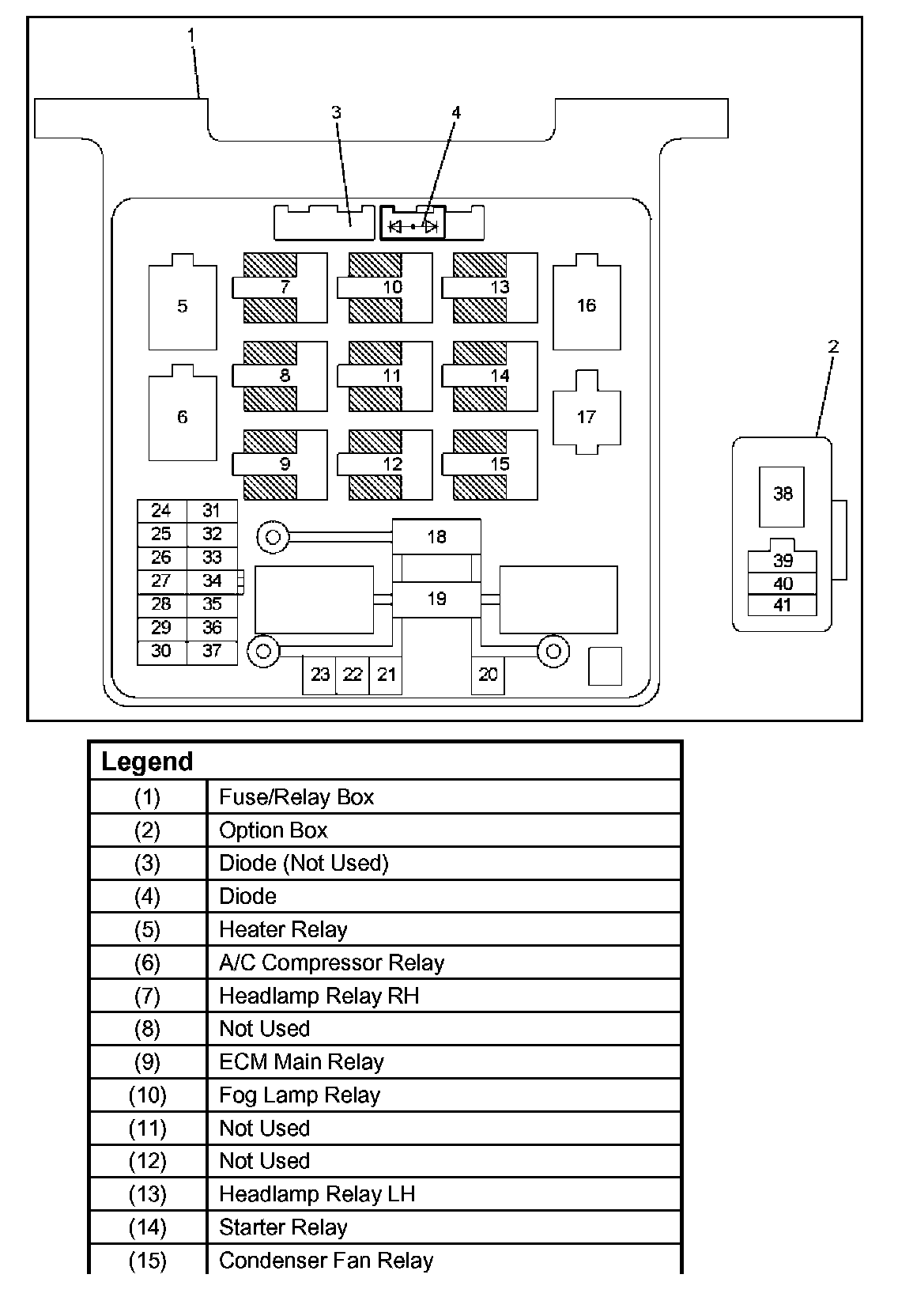

Relay/Fuse Box (Engine Room) Part 1:

Relay/Fuse Box (Engine Room) Part 2:
