Oxygen Sensor: Locations

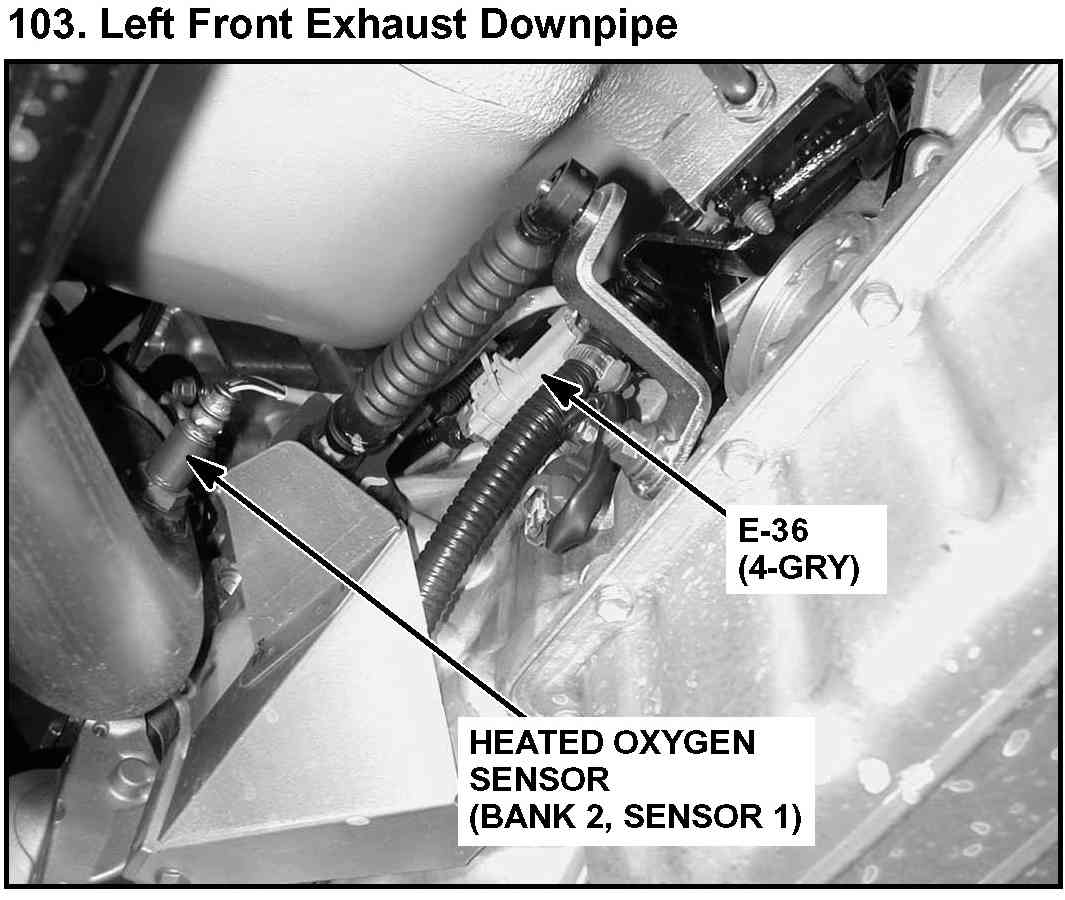

103. Left Front Exhaust Downpipe:

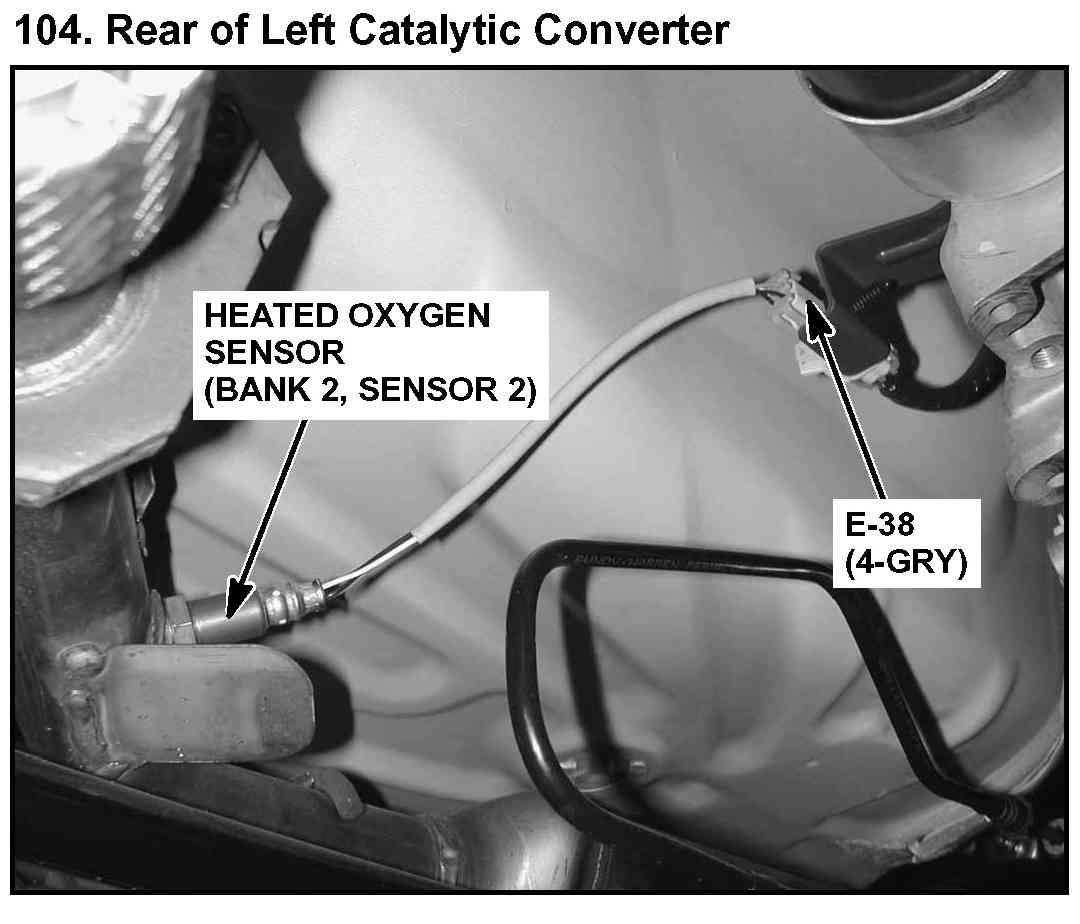

104. Rear of Left Catalytic Converter:

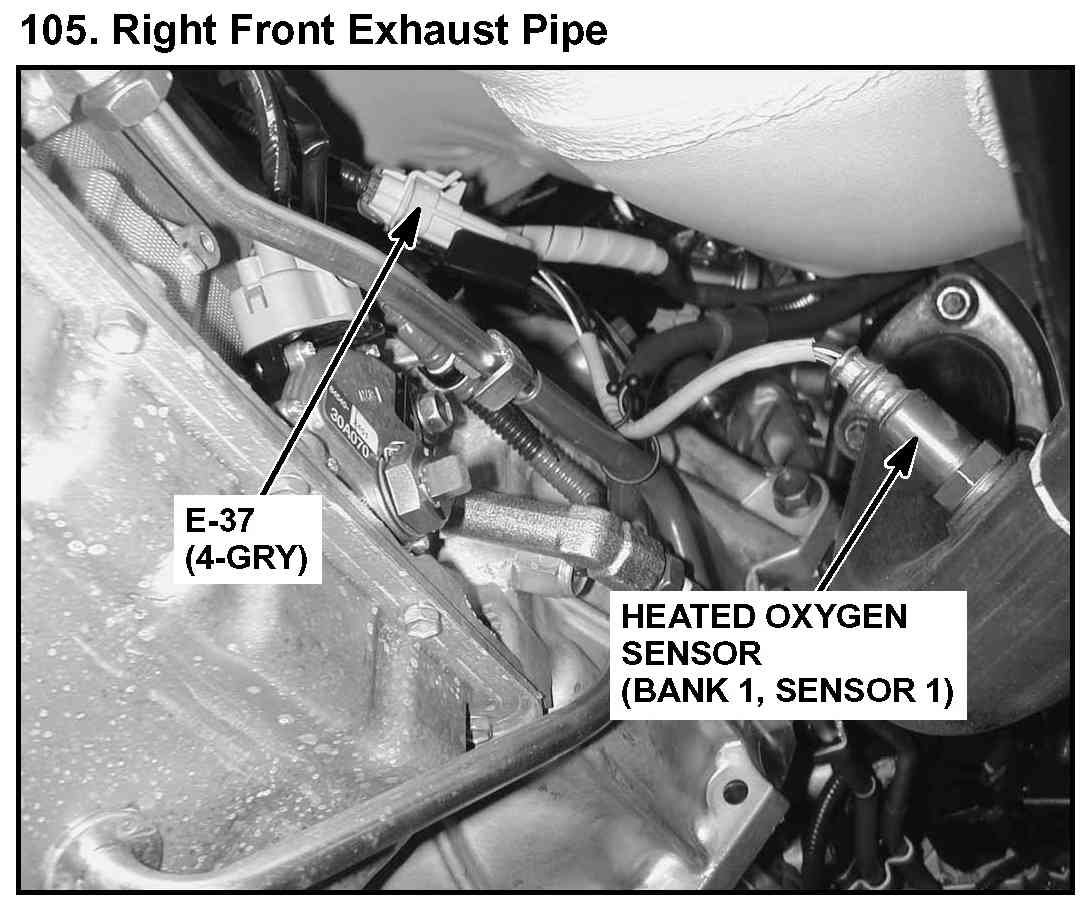

105. Right Front Exhaust Pipe:

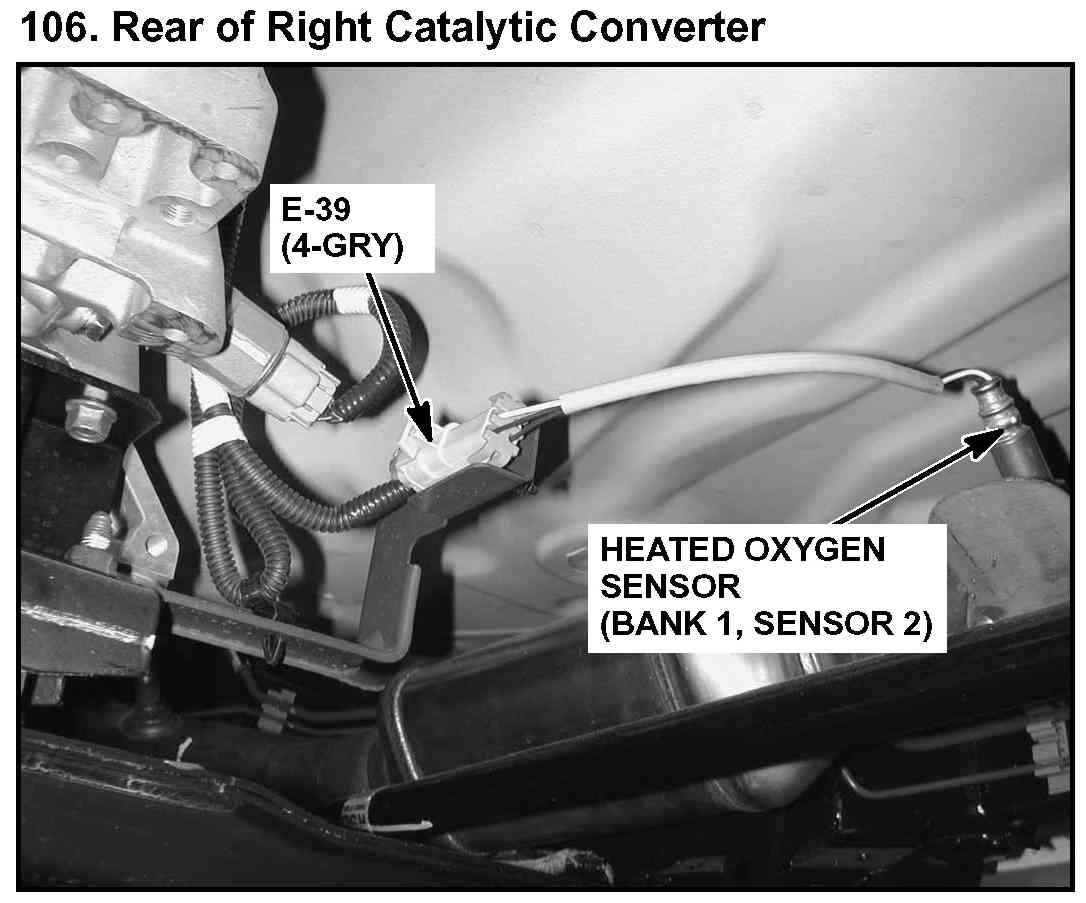

106. Rear of Right Catalytic Converter:

Undercarriage Component Locator:

Undercarriage Component Locator:

Exhaust Components:
