Removal Procedure

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical harness from the AP sensor.

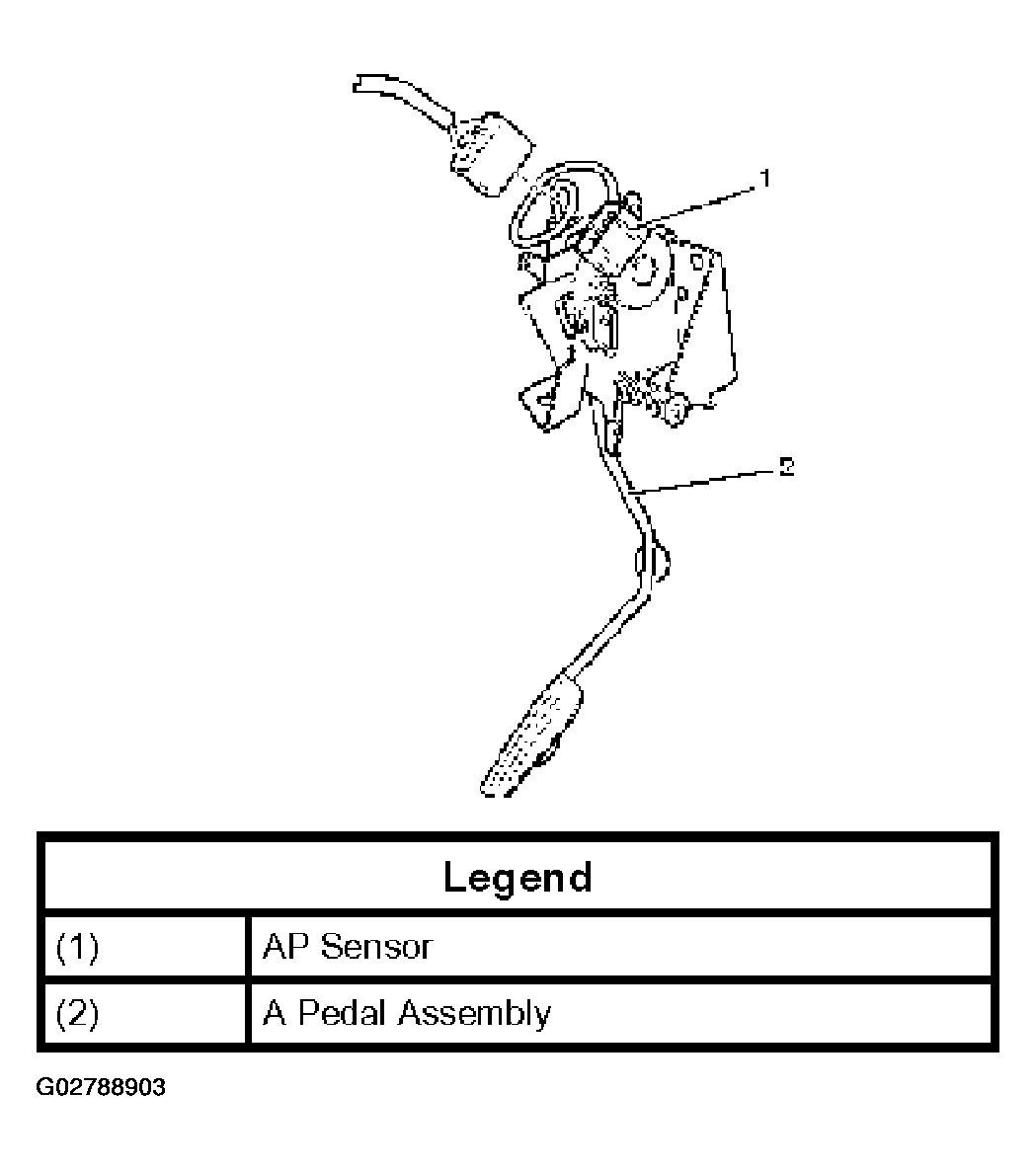

    Fig 1: Disconnecting Electrical Harness From AP Sensor
    G02788903Courtesy of ISUZU MOTOR CO.
  3. Remove the AP sensor.

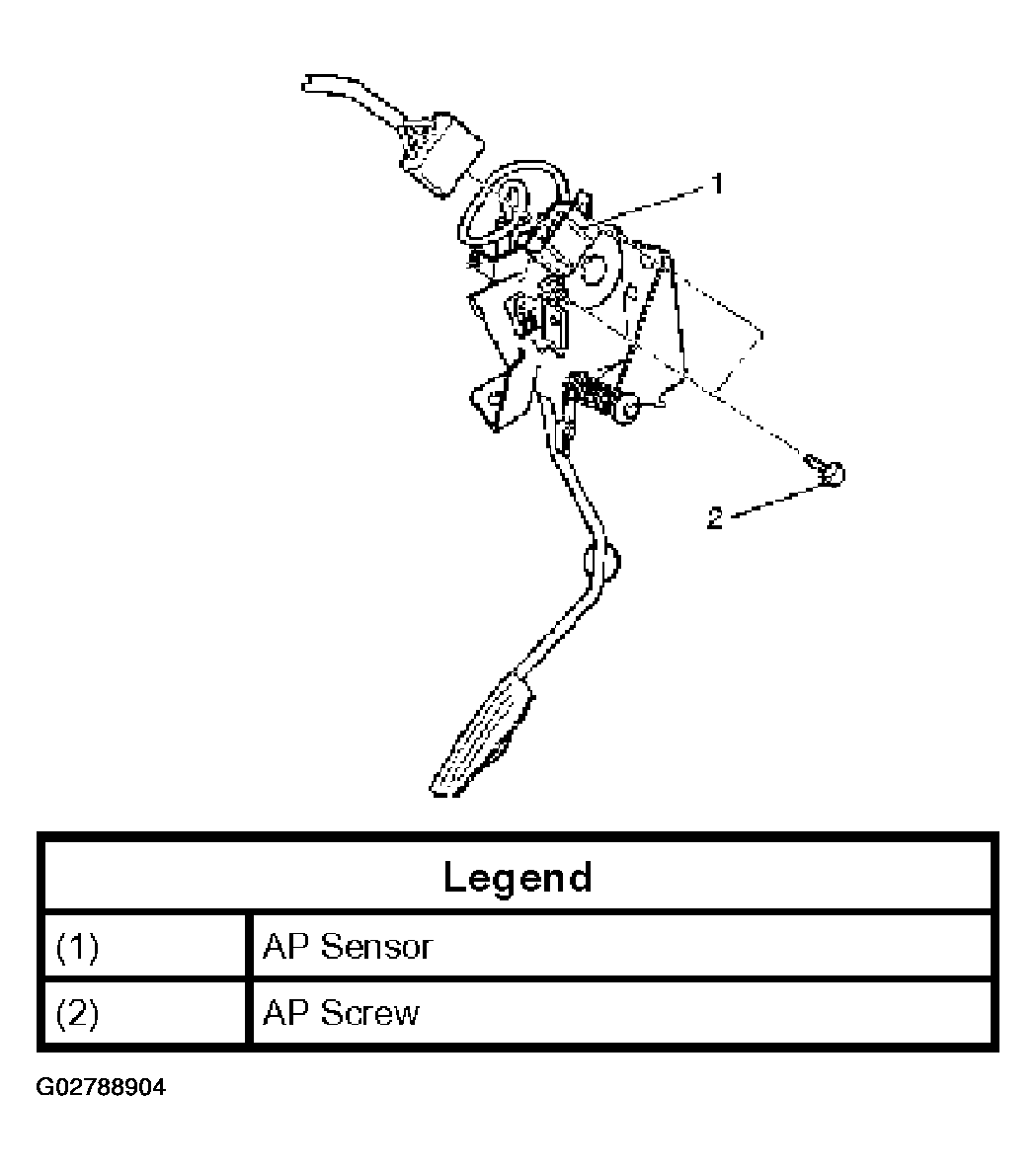

Fig 2: Removing AP Sensor
G02788904Courtesy of ISUZU MOTOR CO.
