Front Section

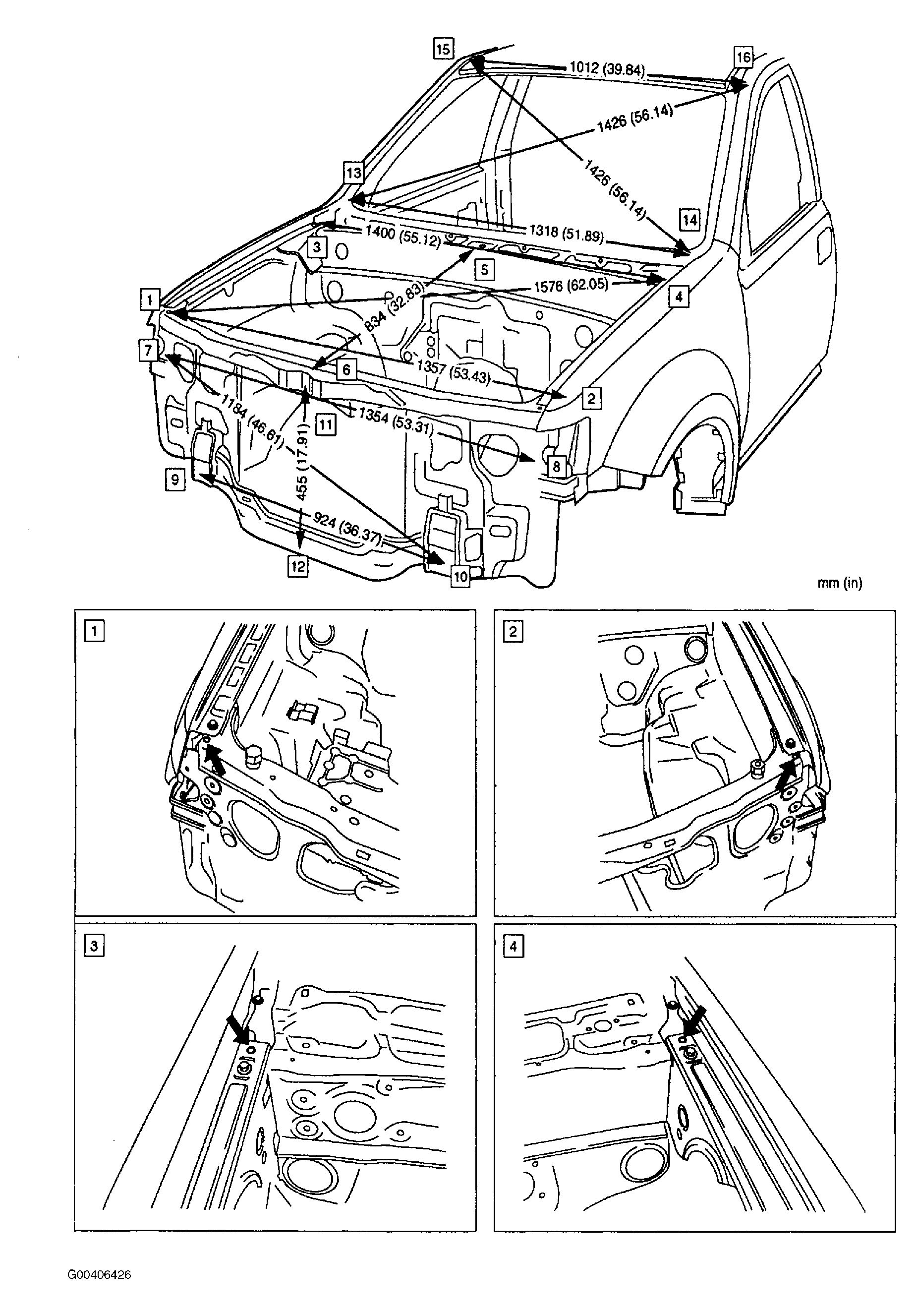

Fig 1: Front Section Body Dimension (1 Of 3)
Courtesy of ISUZU MOTOR CO.

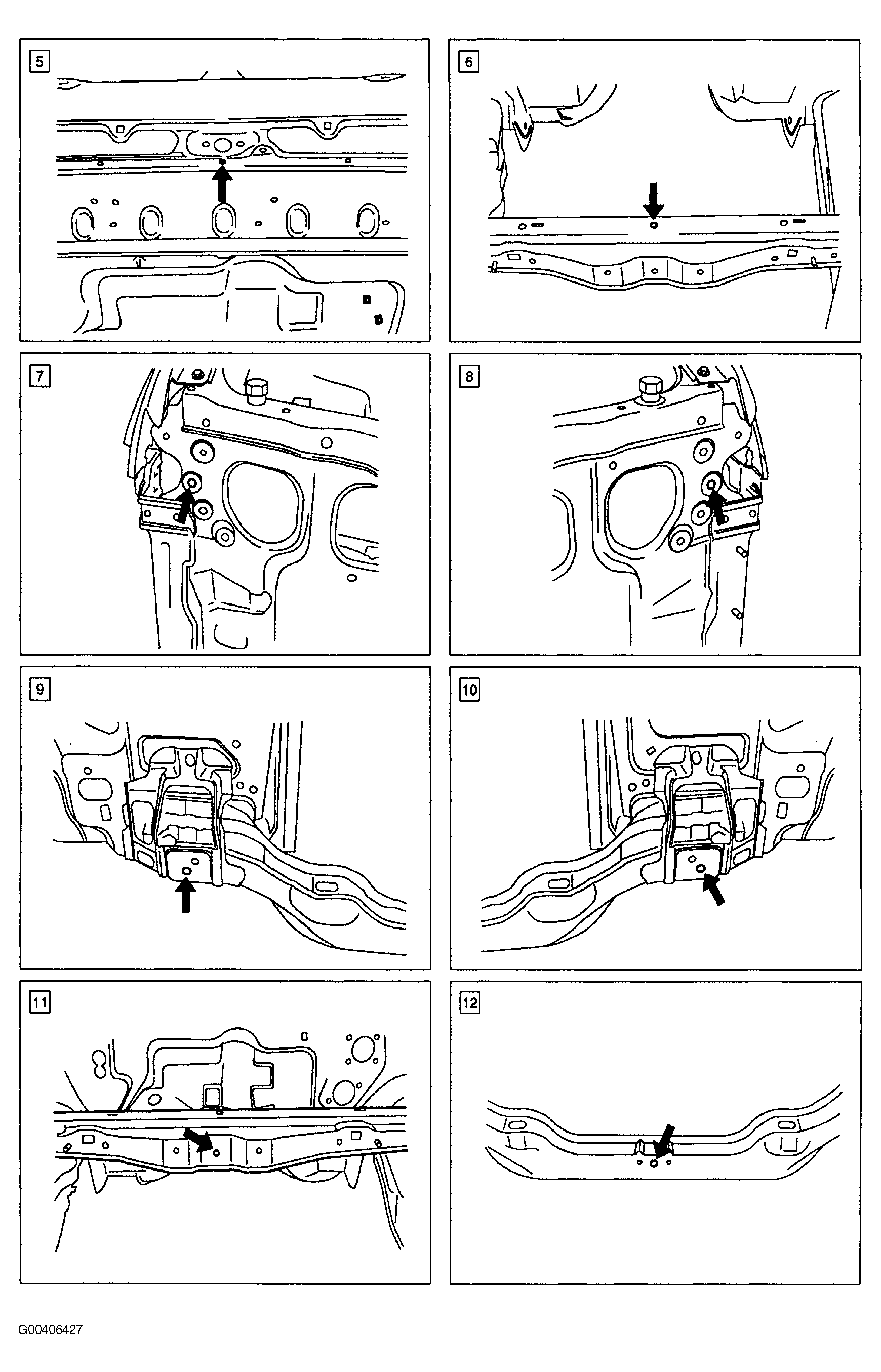

Fig 2: Front Section Body Dimension (2 Of 3)
Courtesy of ISUZU MOTOR CO.

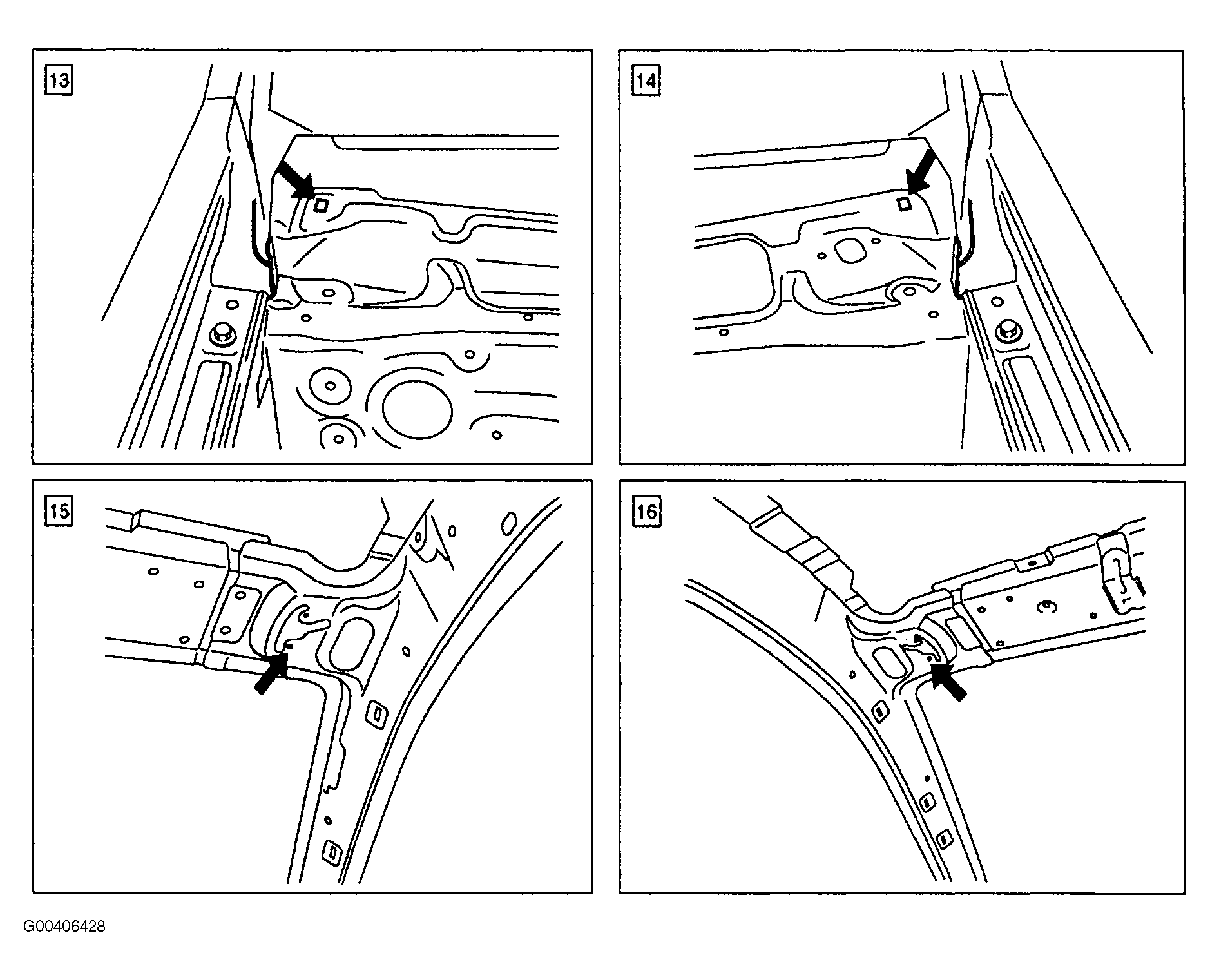

Fig 3: Front Section Body Dimension (3 Of 3)
Courtesy of ISUZU MOTOR CO.
