Fuel Injector Balance Test Procedure

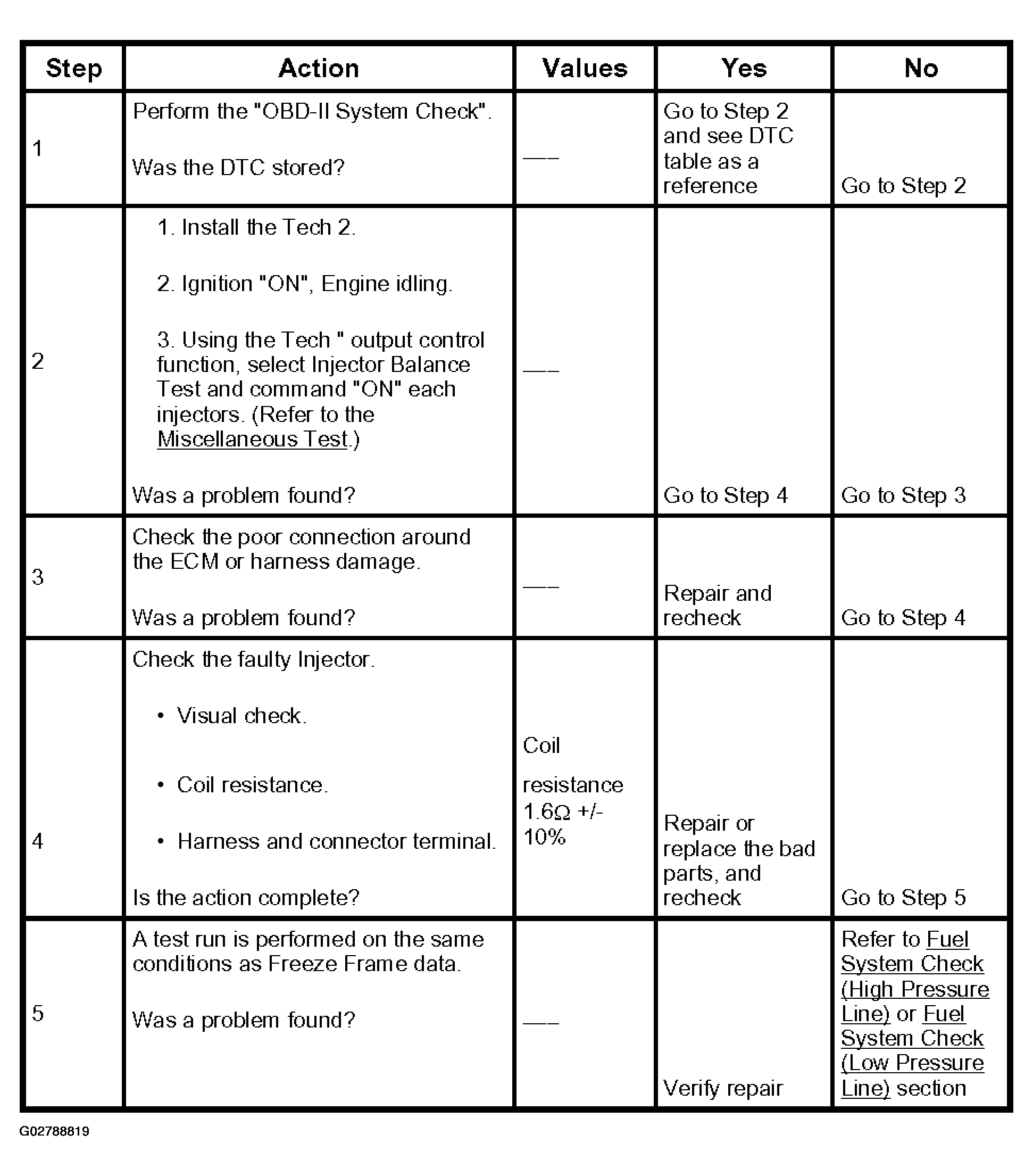

Fig 1: Identifying Diagnostic Chart (Fuel Injector Balance Test Procedure)
G02788819Courtesy of ISUZU MOTOR CO.
