Torque Specifications

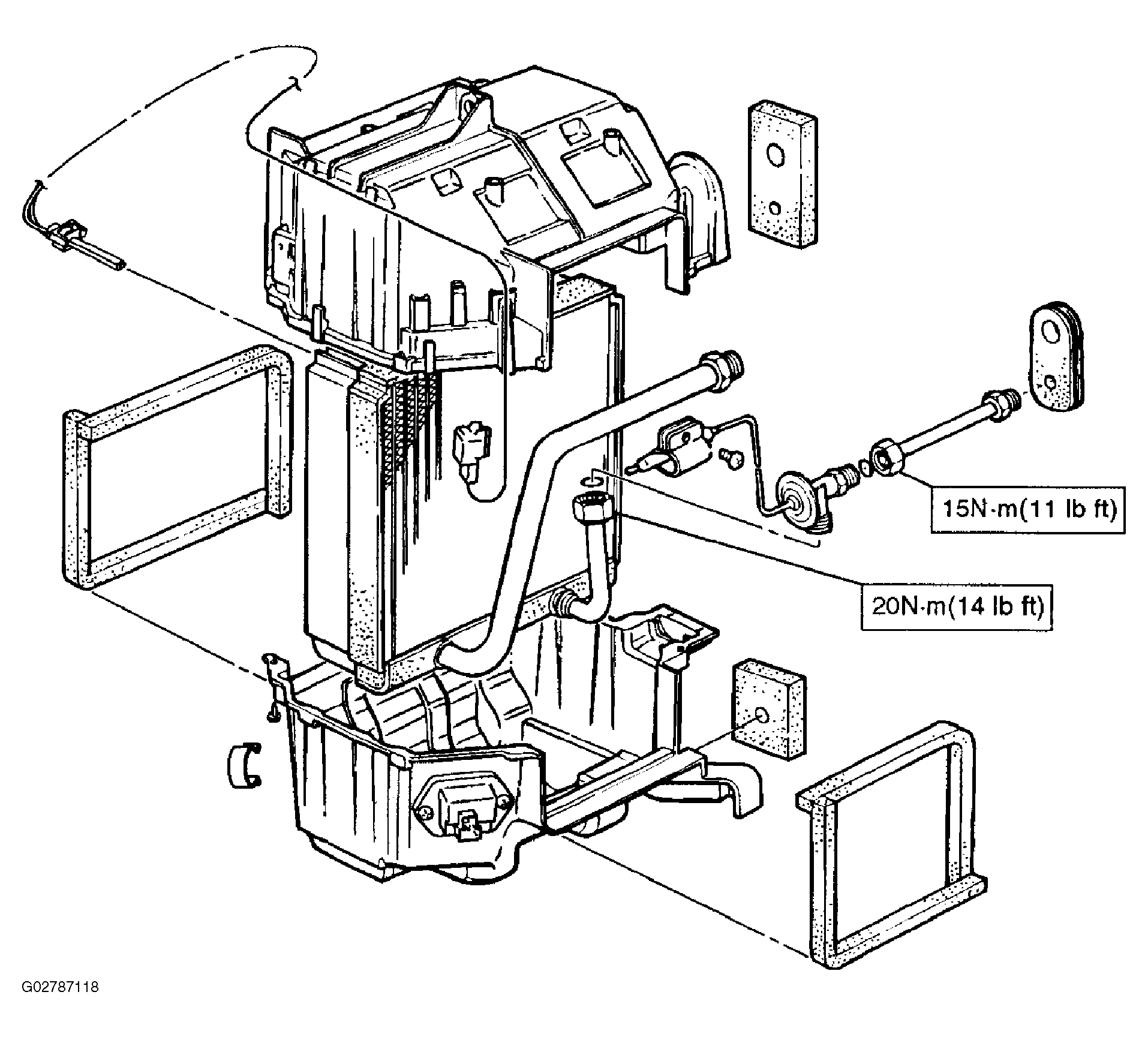

Fig 1: HVAC Torque Specifications (1 Of 2)

Courtesy of ISUZU MOTOR CO.

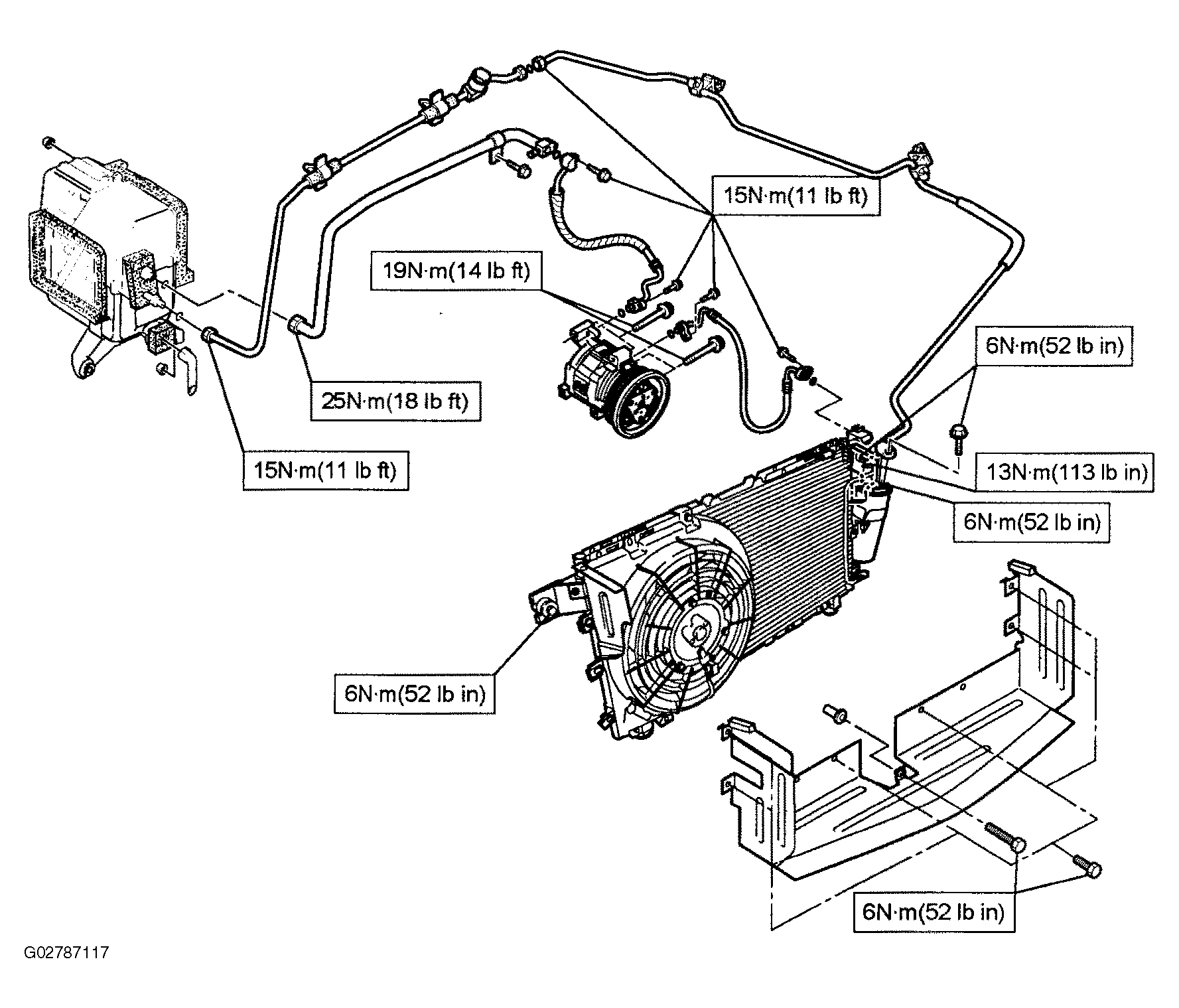

Fig 2: HVAC Torque Specifications (2 Of 2)

Courtesy of ISUZU MOTOR CO.

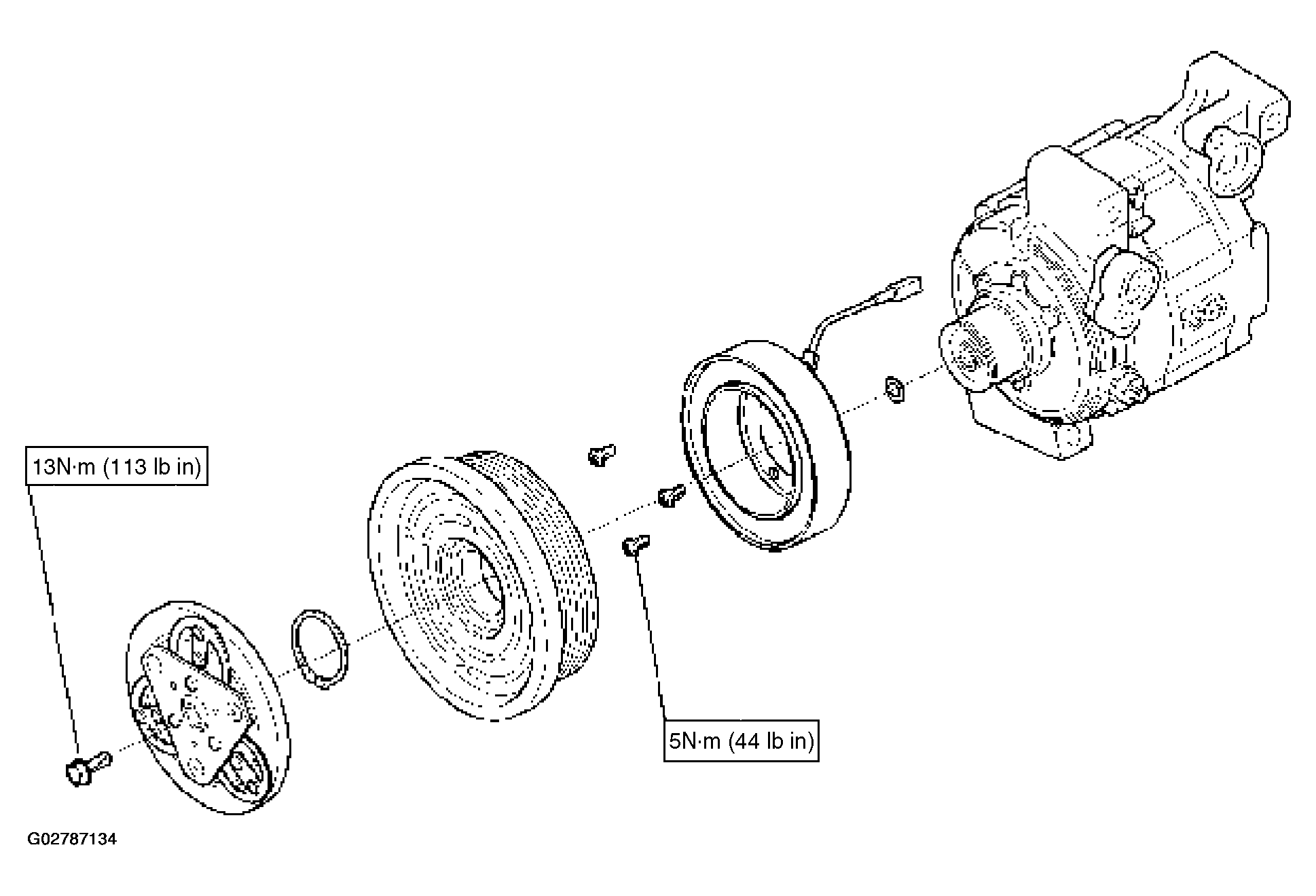

Fig 1: Fastener Tightening Torque Specifications Table

Courtesy of ISUZU MOTOR CO.
