Combination Switch and Associated Parts

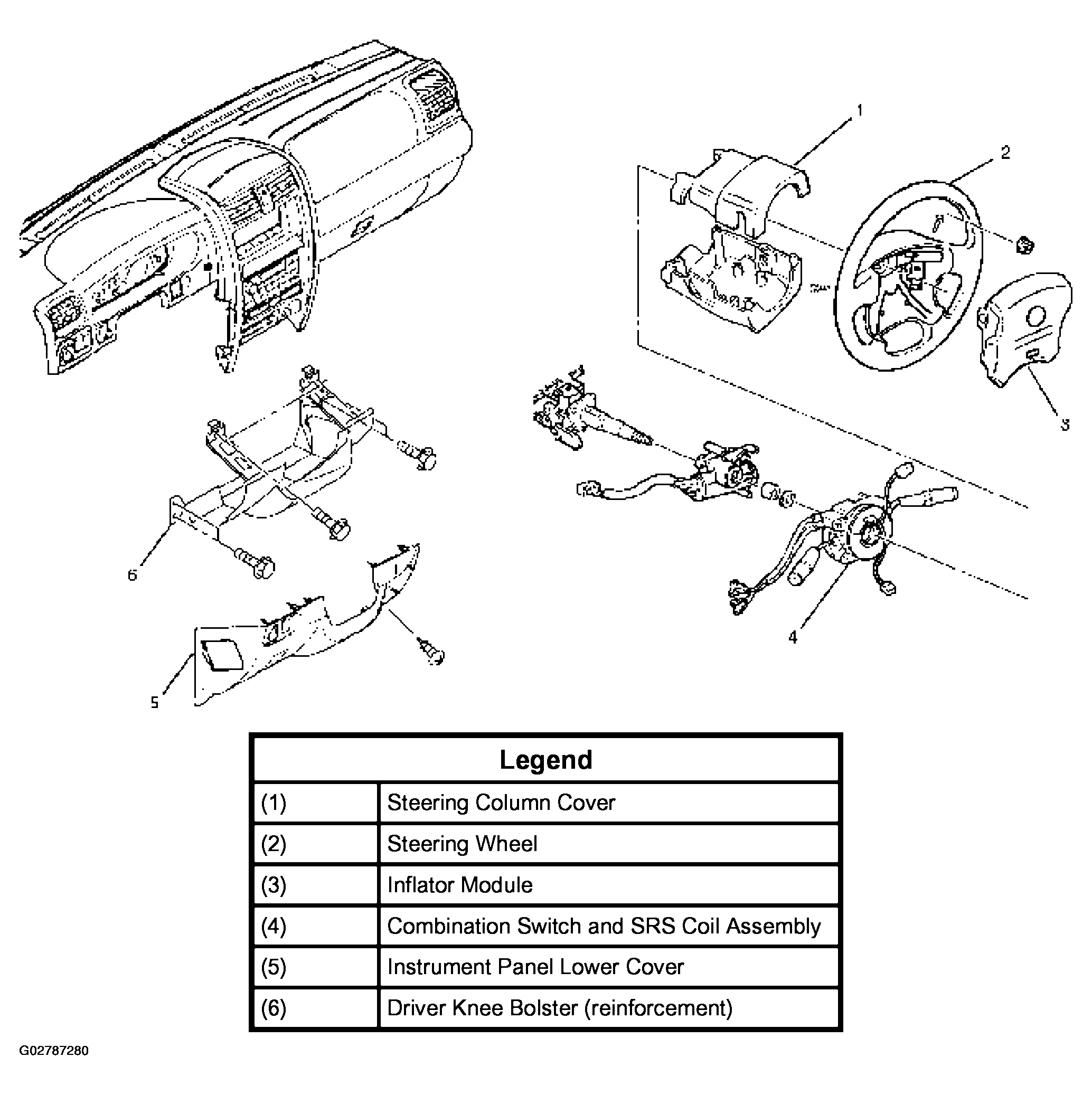

Fig 1: Identifying Combination Switch & Associated Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
