Cross Section

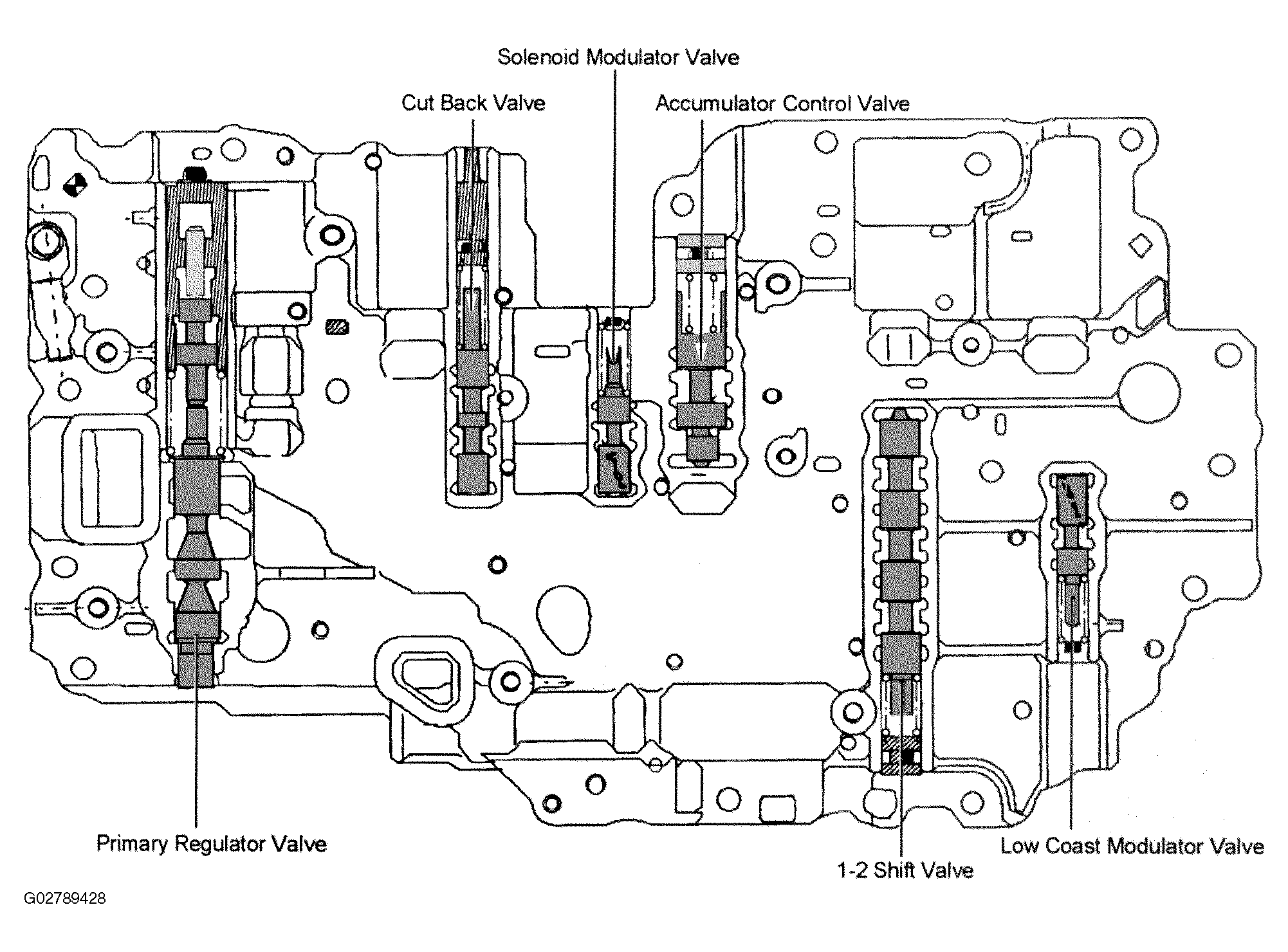

Fig 1: Identifying Lower Valve Body (Cross Section)

G02789428

Courtesy of ISUZU MOTOR CO.
