DTC P1773: (FLASHING CODE 27) Transmission Fluid Temperature Sensor Circuit High Input (Valve Body): Notes

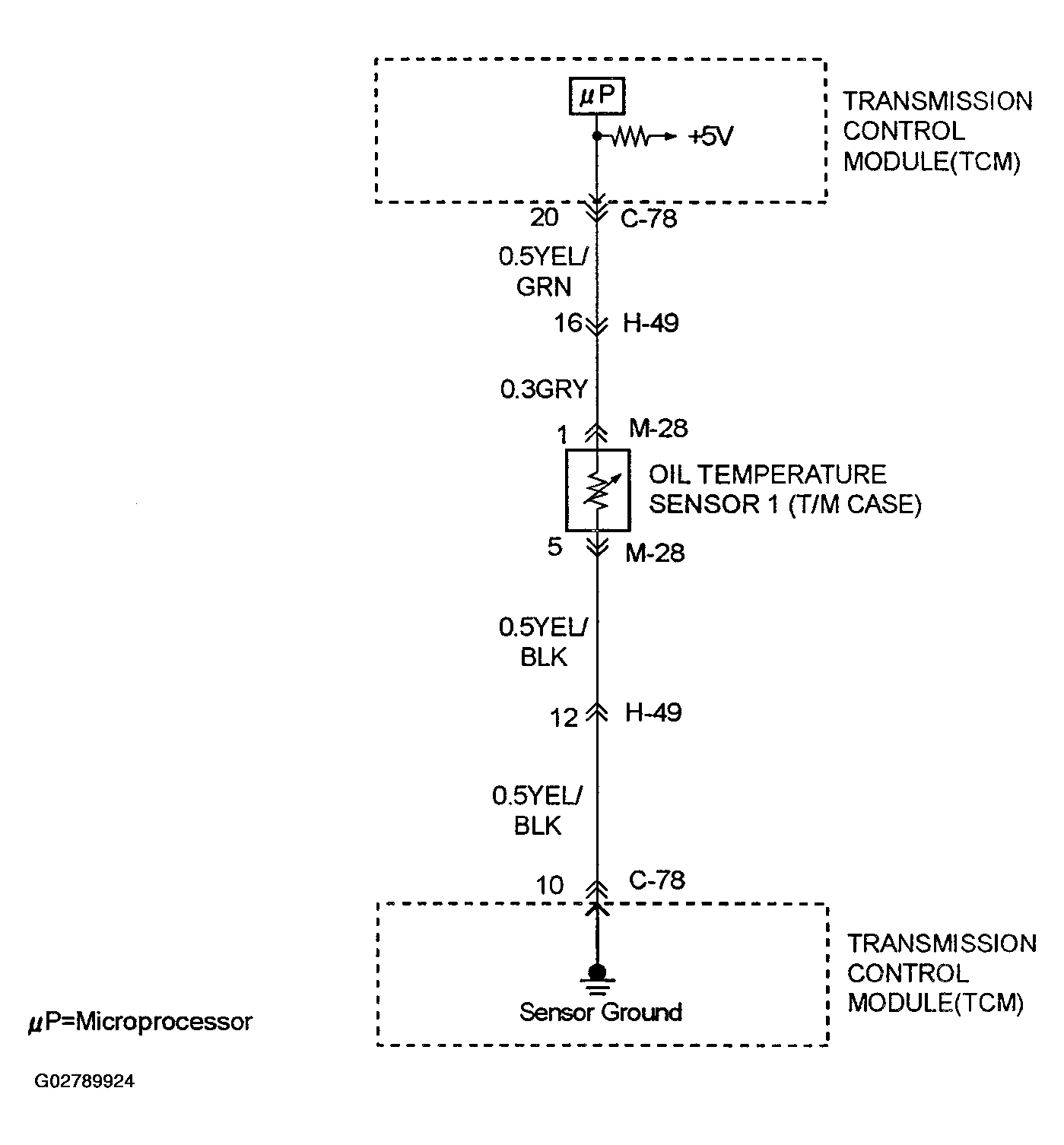

Fig 1: DTC P1773: (Flashing Code 27) Transmission Fluid Temperature Sensor Circuit High Input (Valve Body) Wiring Diagram

Courtesy of ISUZU MOTOR CO.
