DTC P1875: (FLASHING CODE 75) 4 Wheel Drive State Input Signal Failure: Notes

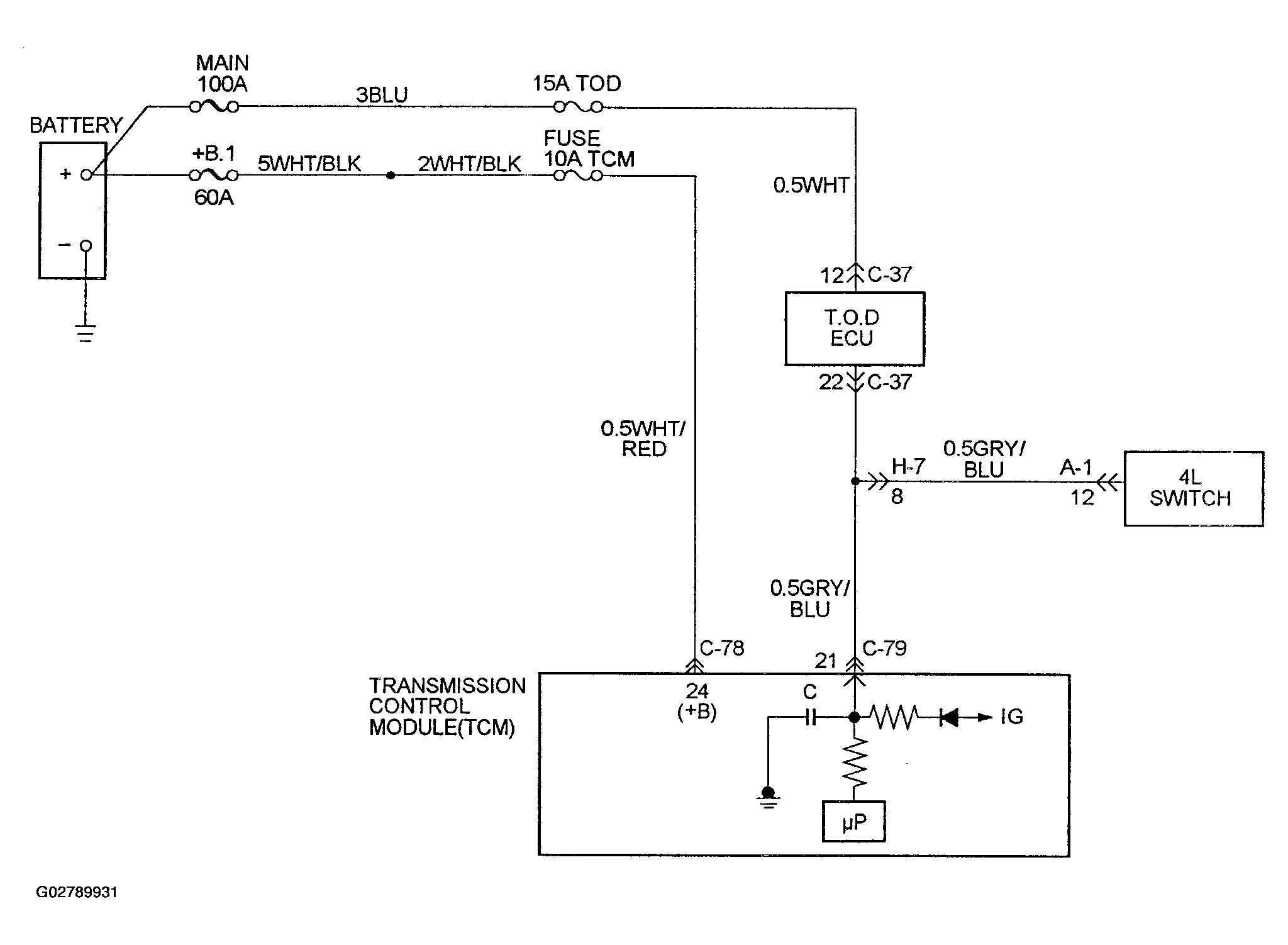

Fig 1: DTC P1875: (Flashing Code 75) 4 Wheel Drive State Input Signal Failure) Wiring Diagram
G02789931Courtesy of ISUZU MOTOR CO.
