TOD Switch and Indication of Drive Mode: Notes

The TOD switch sends signals to the TOD control unit which selects drive modes.

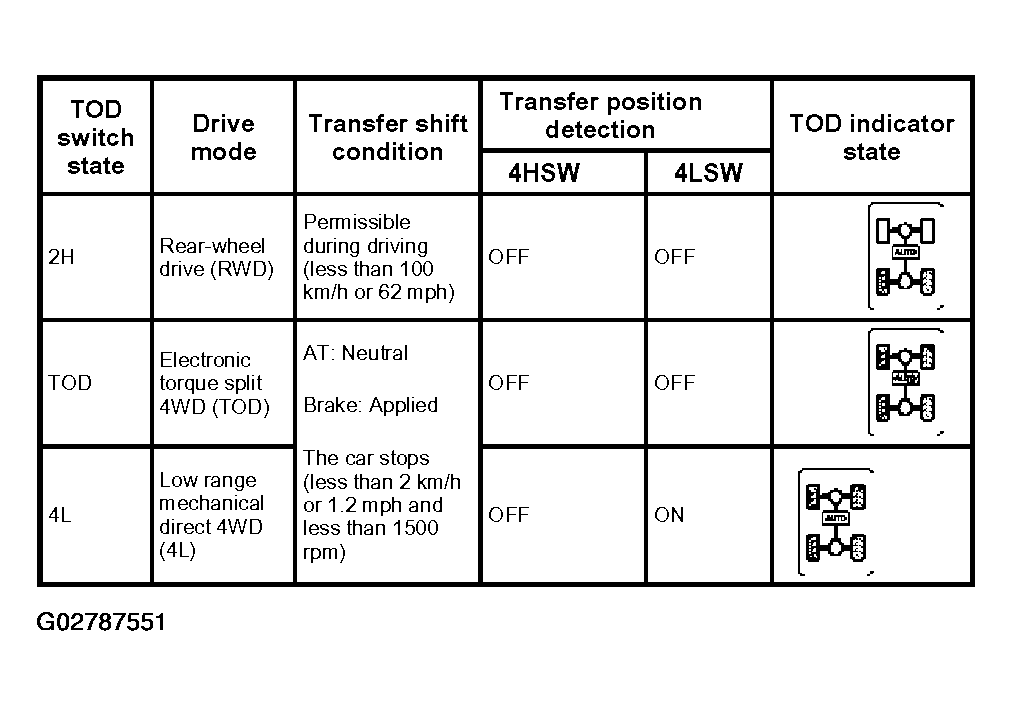

Fig 1: TOD Switch And Indication Of Drive Mode Chart

Courtesy of ISUZU MOTOR CO.

SW: Switch

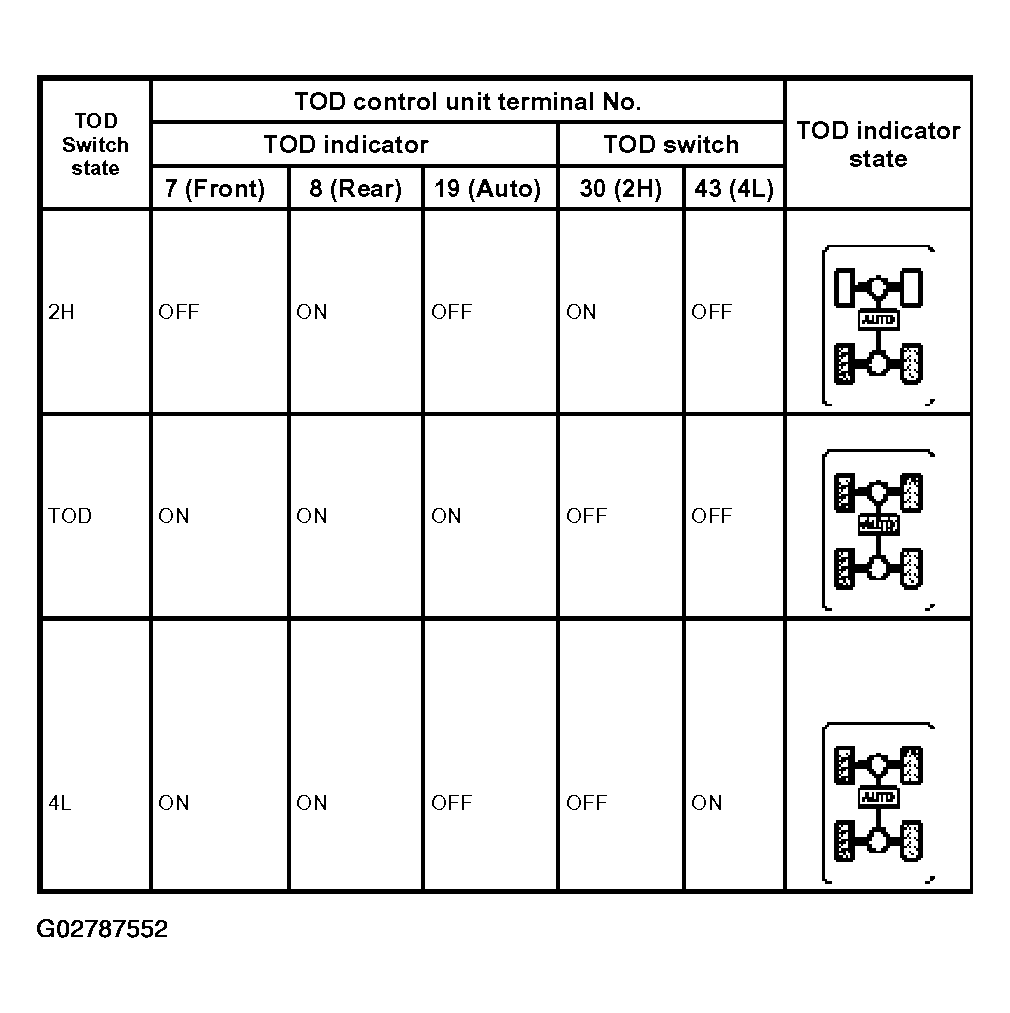

Fig 2: TOD Control Unit Terminal Chart

Courtesy of ISUZU MOTOR CO.
