Transfer Case Assembly: Notes

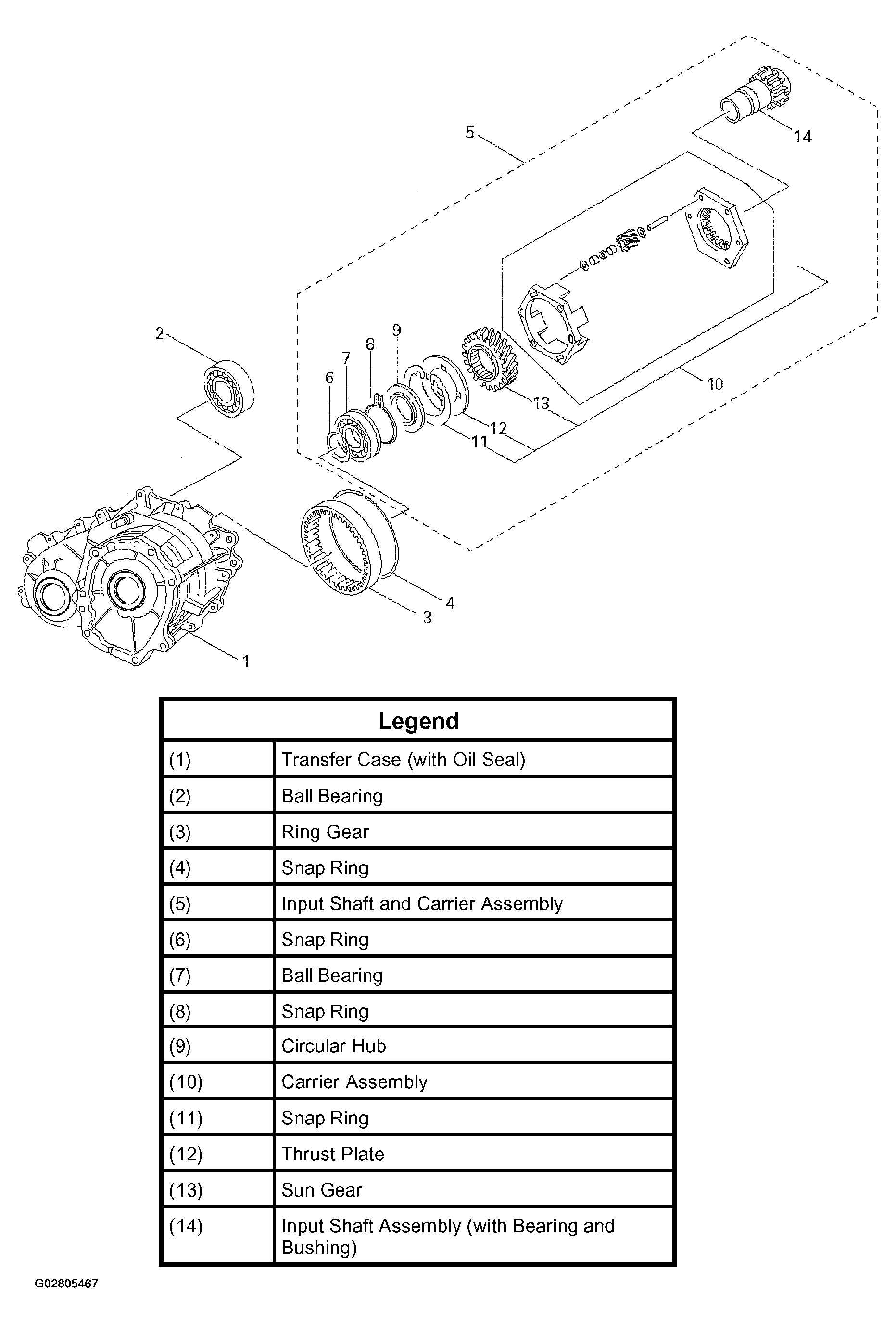

Fig 1: Identifying Transfer Case Assembly Components
G02805467Courtesy of ISUZU MOTOR CO.
