Torque Specifications

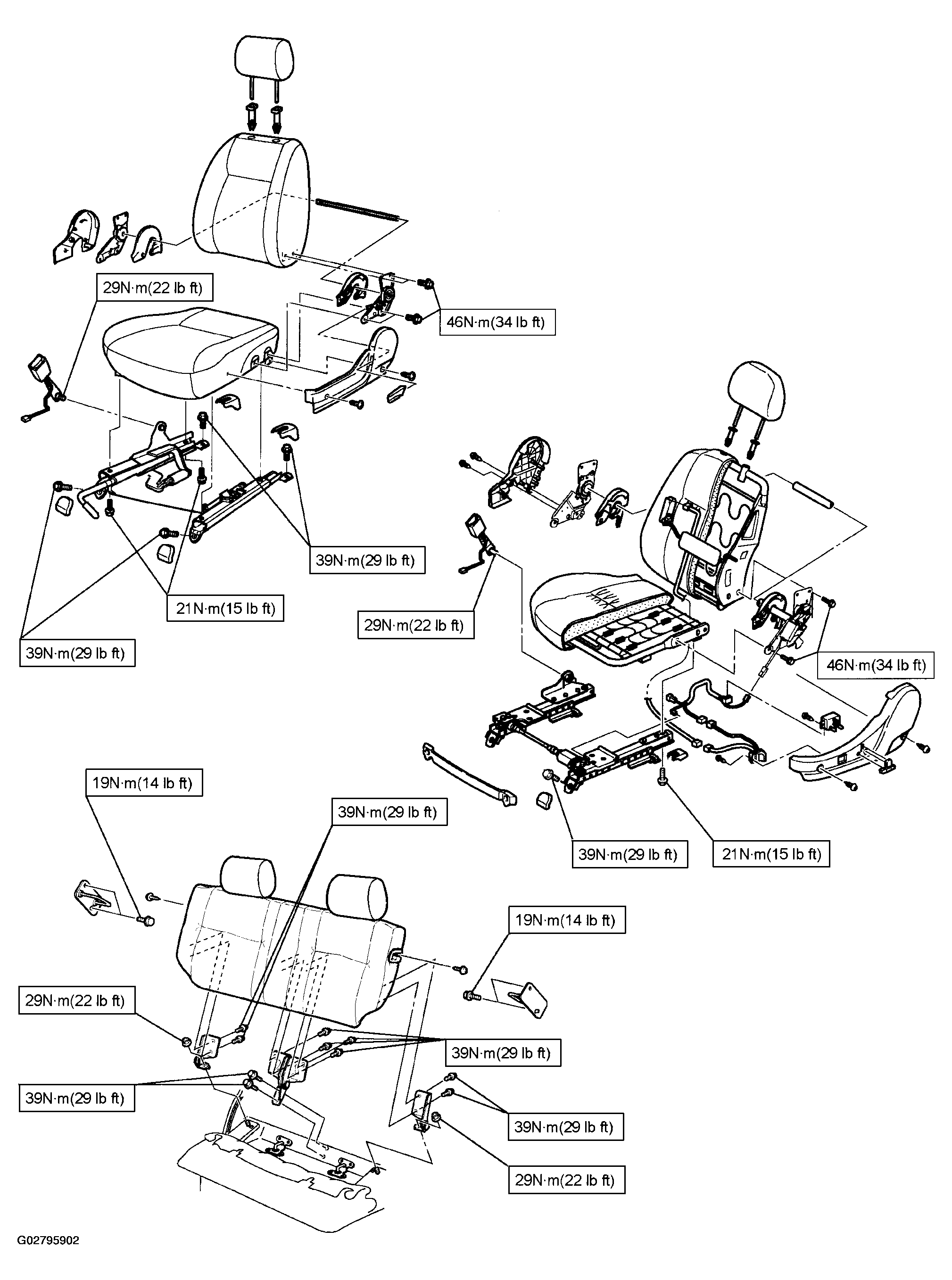

Fig 1: Tightening Bolt With Torque Specifications (1 Of 2)
G02795902Courtesy of ISUZU MOTOR CO.

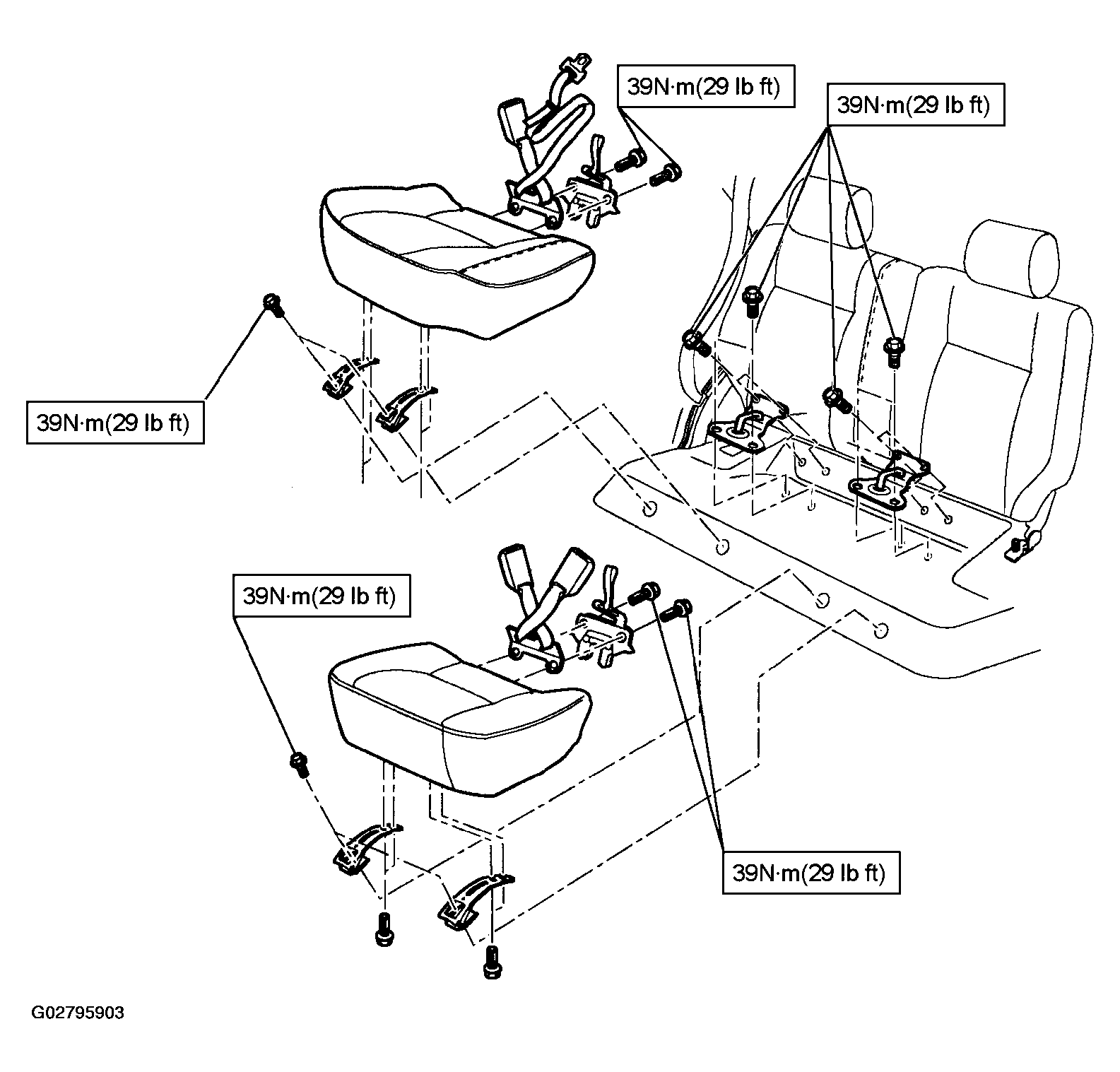

Fig 2: Tightening Bolt With Torque Specifications (2 Of 2)
G02795903Courtesy of ISUZU MOTOR CO.
