Isuzu
>>
2004
>>
Rodeo 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Dash Fuse Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dash Fuse Box

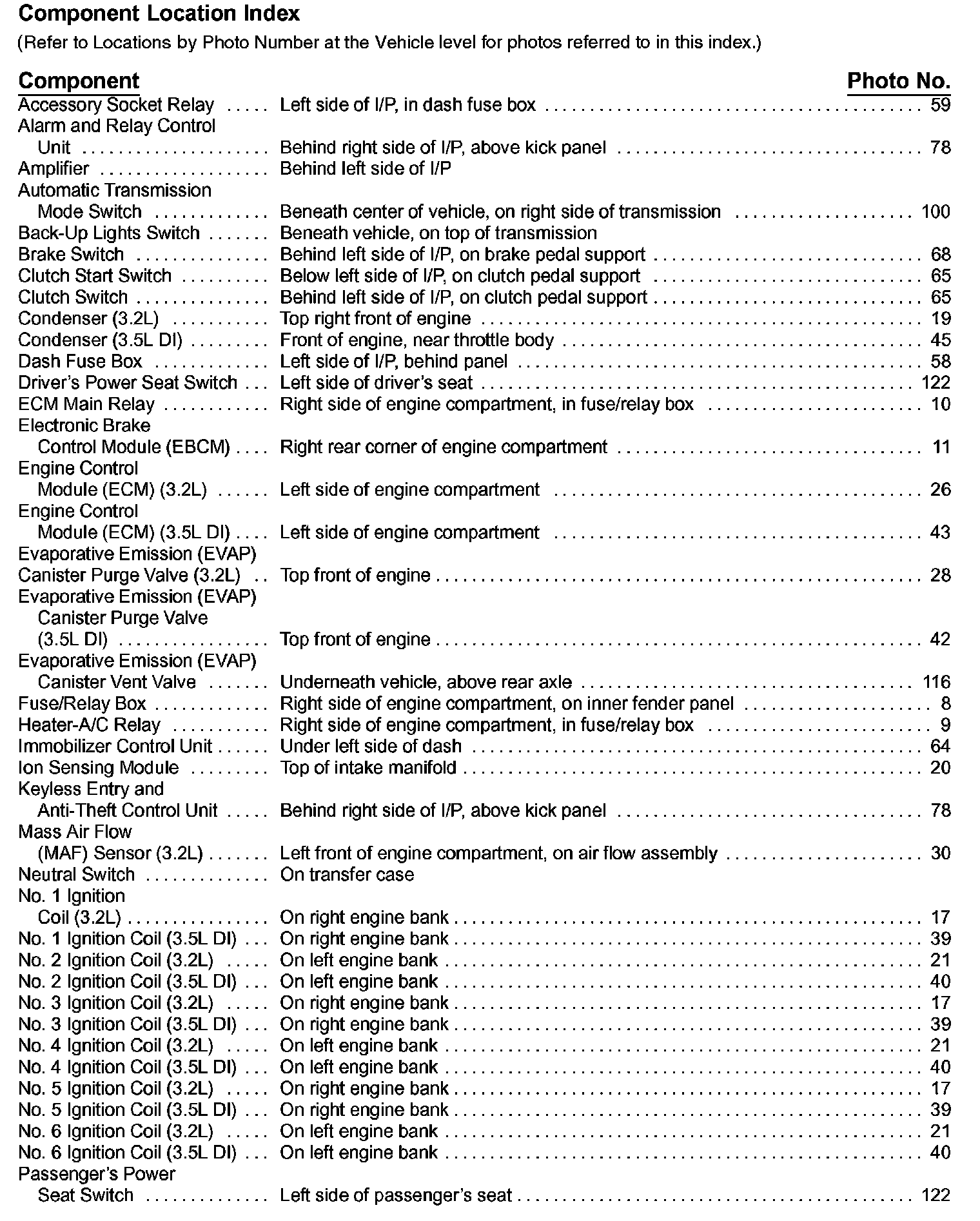

Dash Fuse Box Part 1:

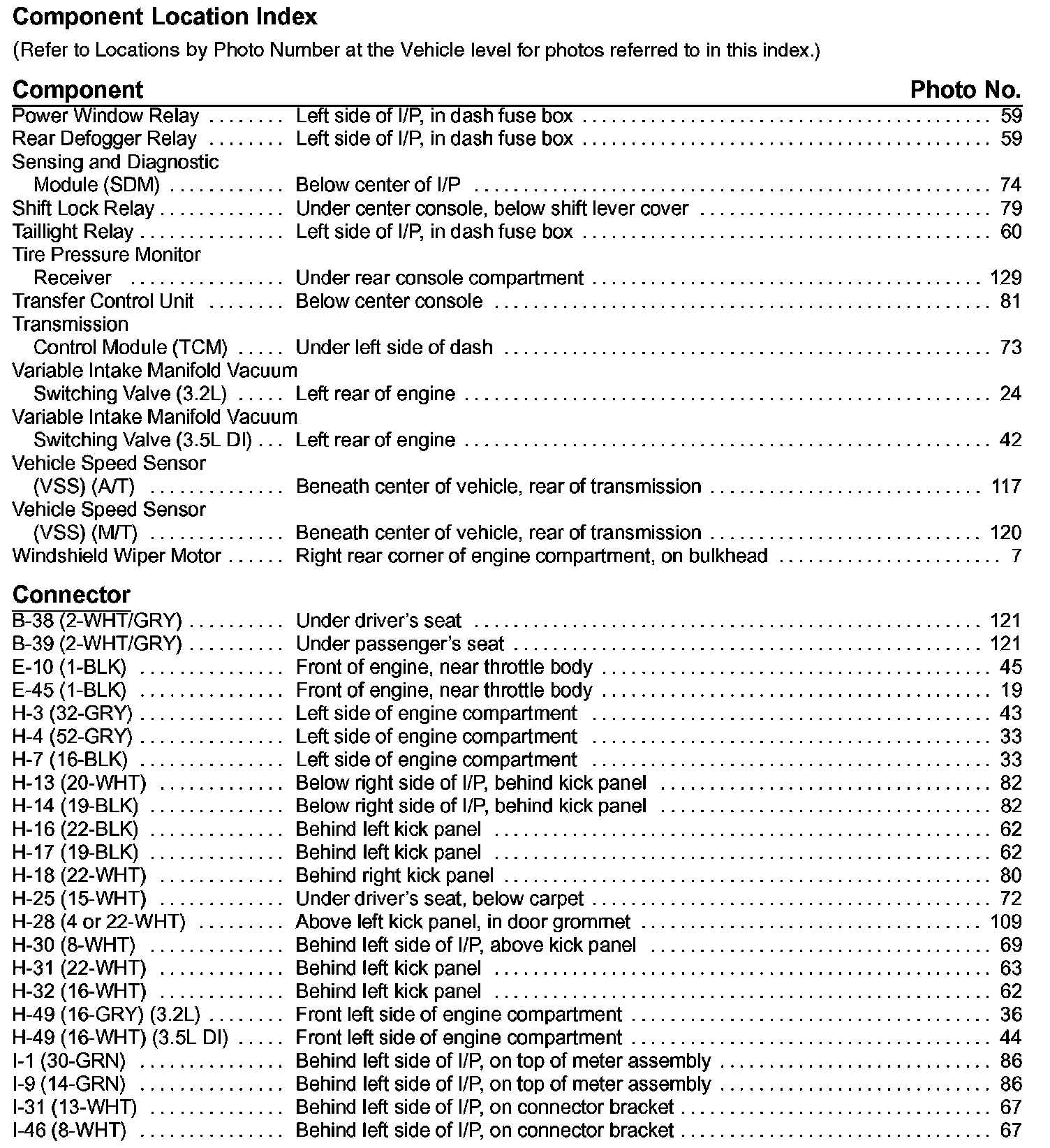

Dash Fuse Box Part 2:
