Fuse Block: Locations

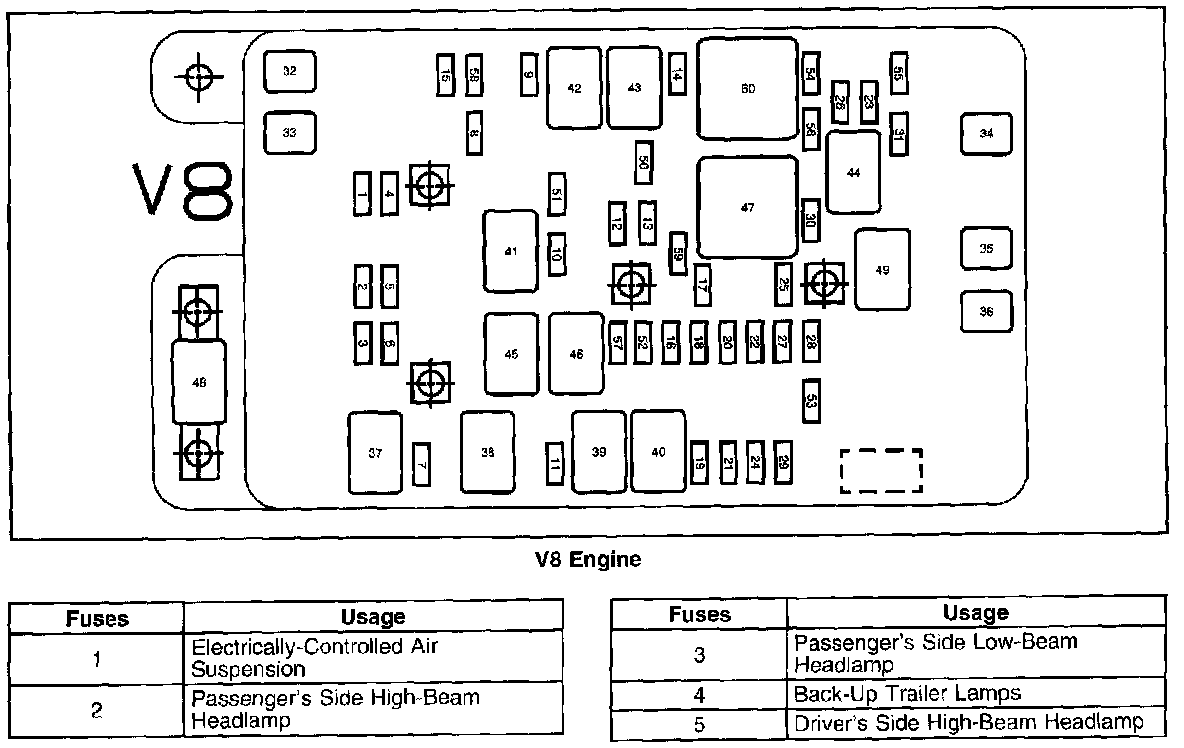

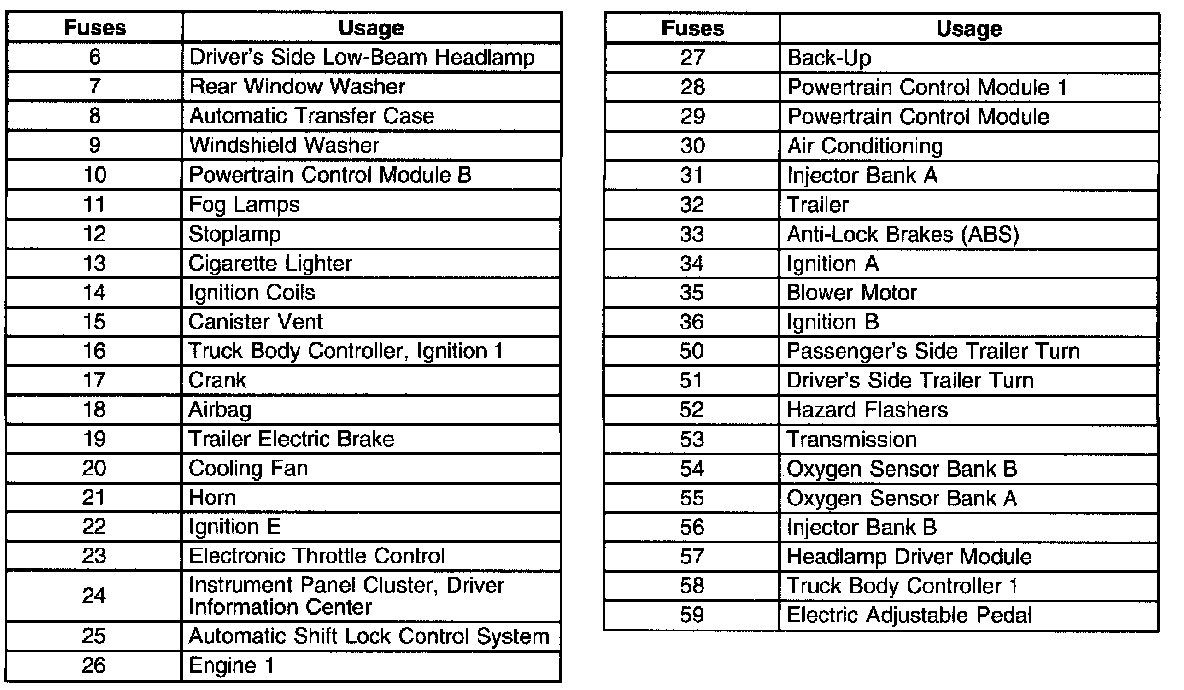

Engine Compartment Fuse Block











Rear Underseat Fuse Block (5 Passenger)










Rear Underseat Fuse Block (7 Passenger)
