Installation Procedure

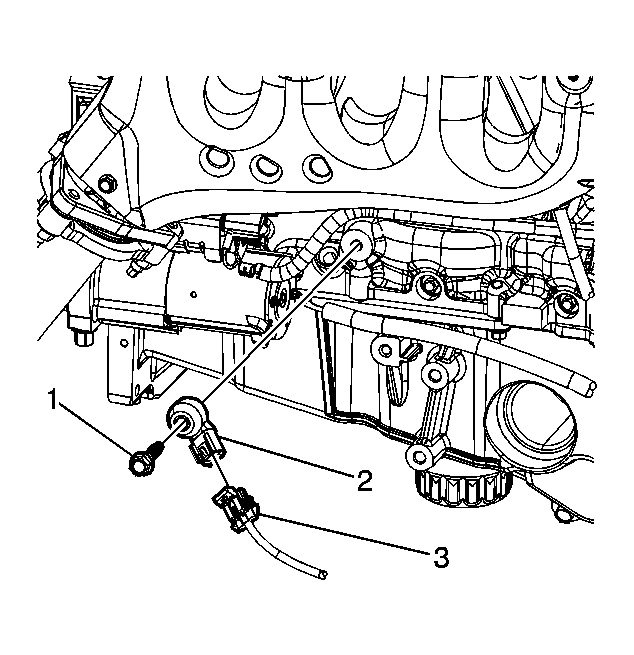

    Fig 1: Knock Sensor
    GM1528397Courtesy of GENERAL MOTORS CORP.
  1. Position the knock sensor (2) on the engine block.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the knock sensor bolt (1).

    Tighten:  Tighten the bolt (1) to 20 N.m (15 lb ft).

  3. Connect the electrical connector (3) to the knock sensor (2).
