Wheel Alignment Specifications

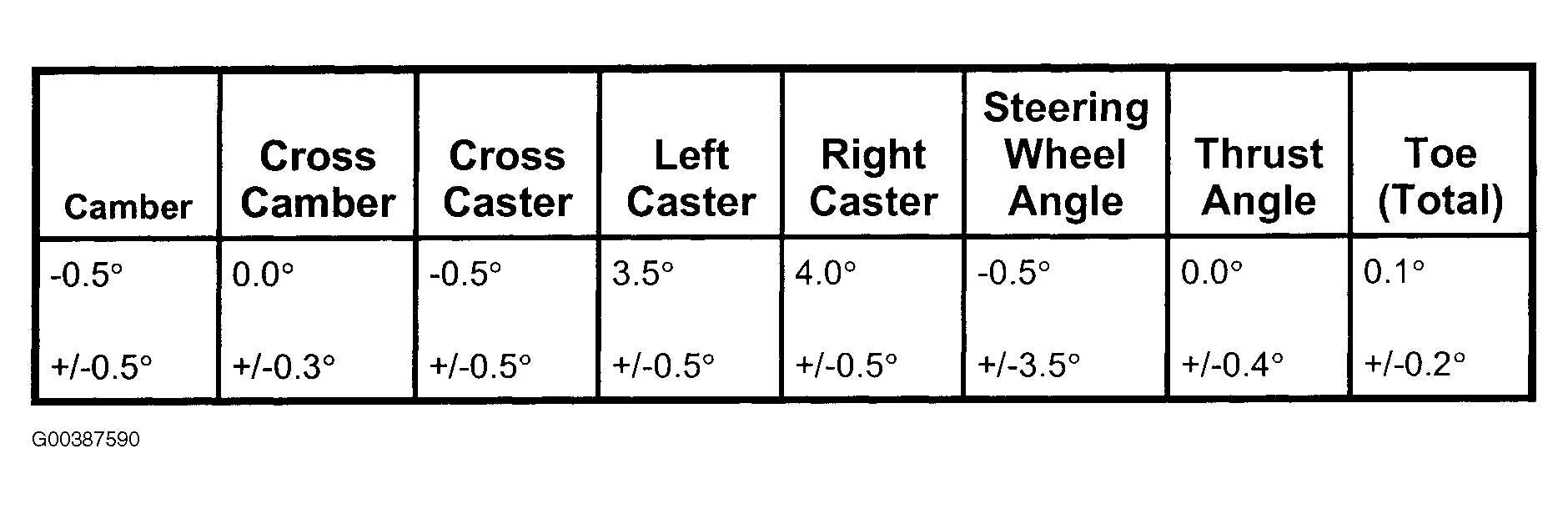

Fig 1: Wheel Alignment Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
