Fuse Block: Locations

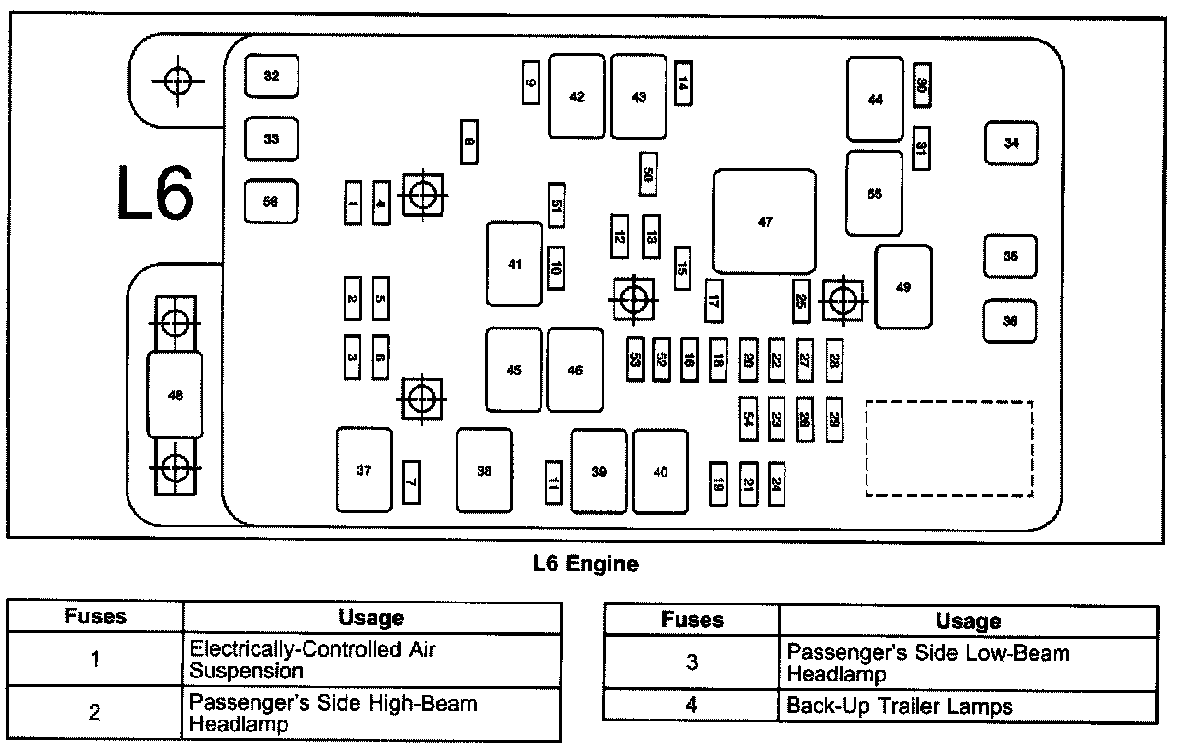

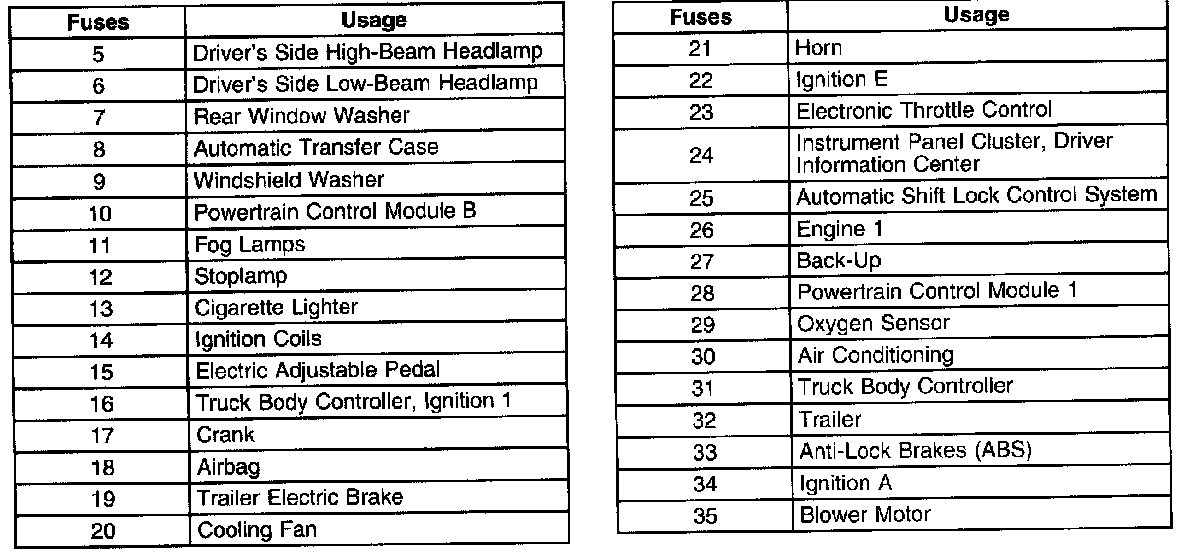

Engine Compartment Fuse Block

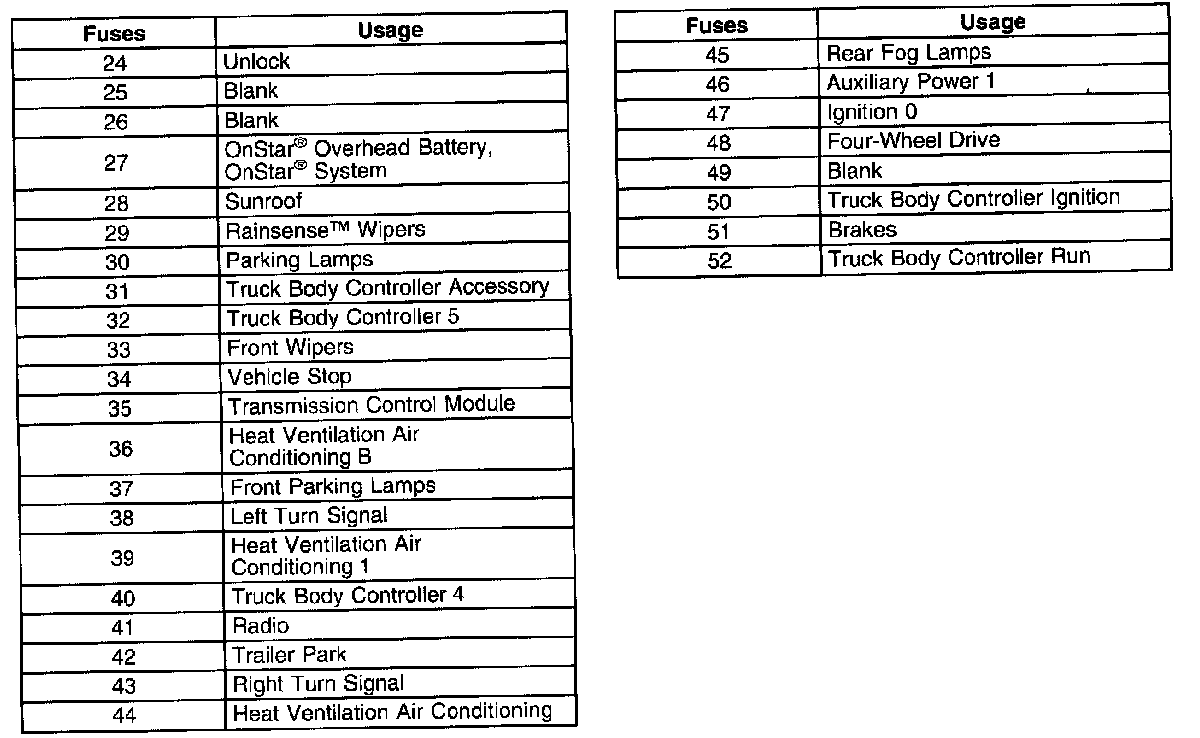

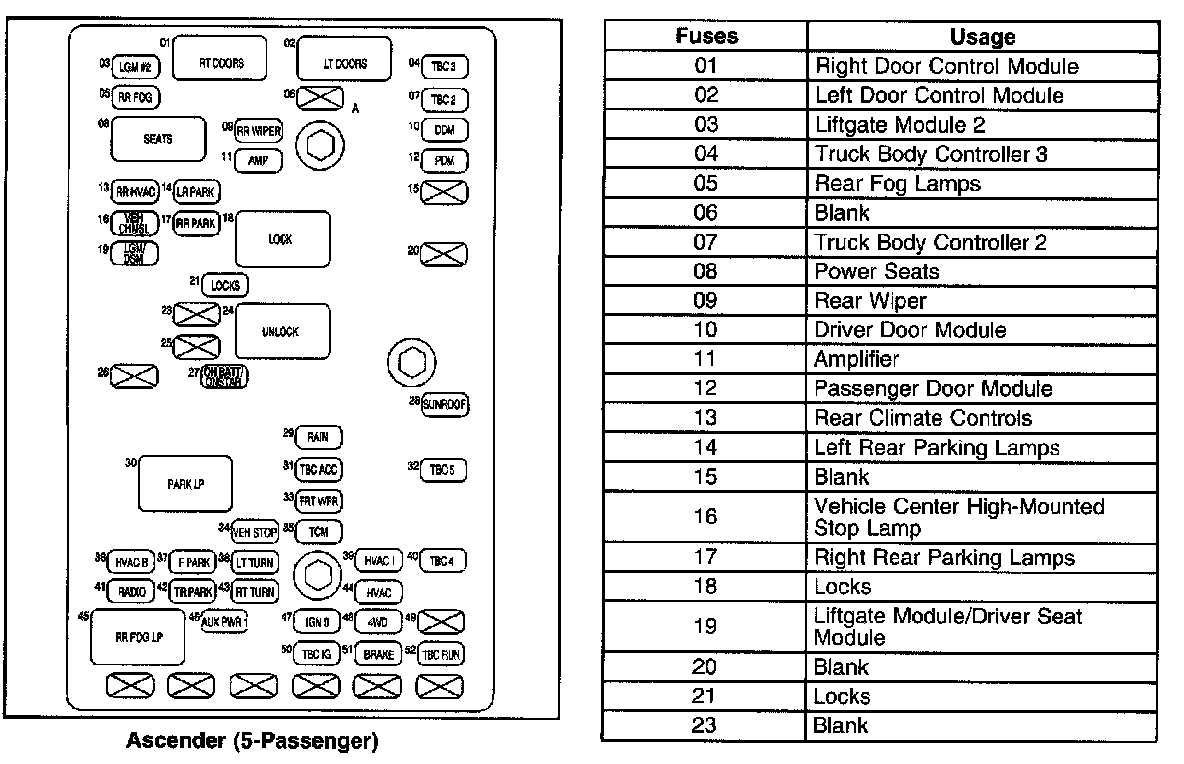

Rear Underseat Fuse Block (5 Passenger)

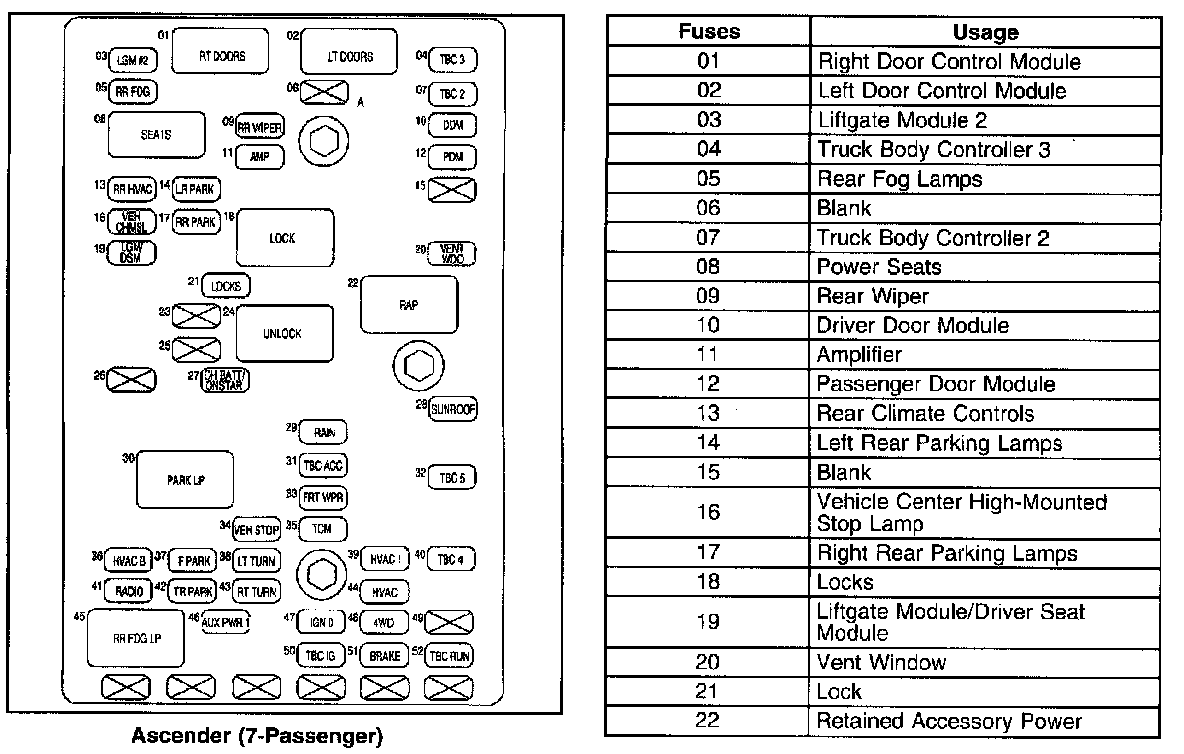

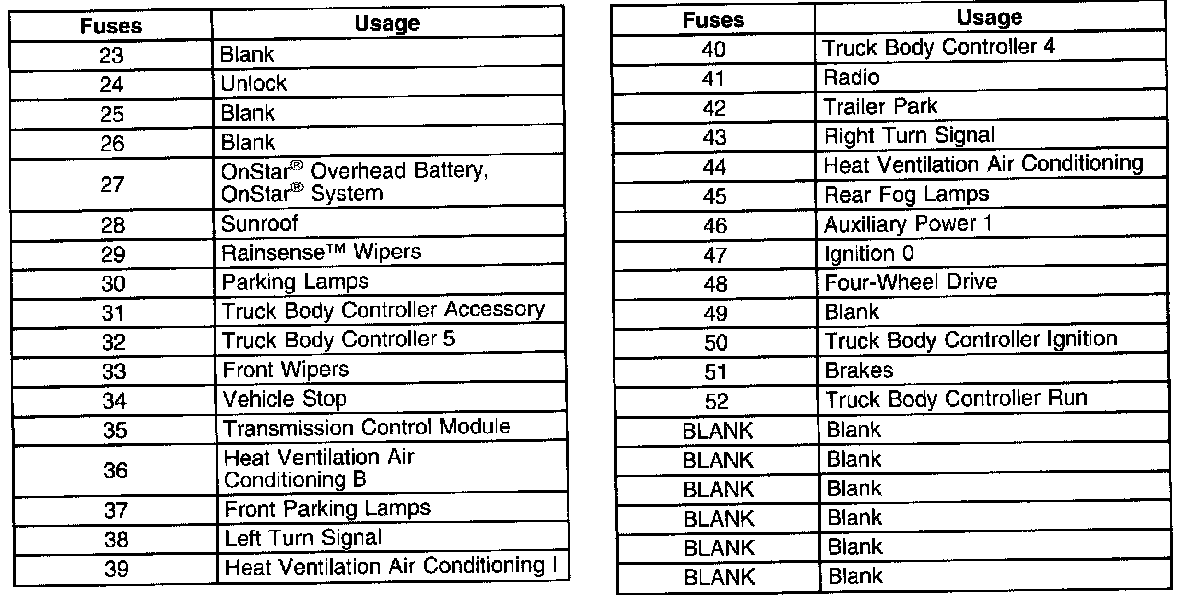

Rear Underseat Fuse Block (7 Passenger)
